Transparent rental led display ( LTR series)

The transparent LED screen rental is an updated technology, Which usually used on stage, at concerts, and at other events. The screen’s ultra-thin design and lack of frames create an immersive experience and offer a good atmosphere to the audience, which can make them leave a good impression.

  • High-quality visuals
  • Ultra-thin design
  • Frameless
  • Modern architectural installation
  • Various sizes and resolutions
  • Immersive experience
  • High contrast

Feature

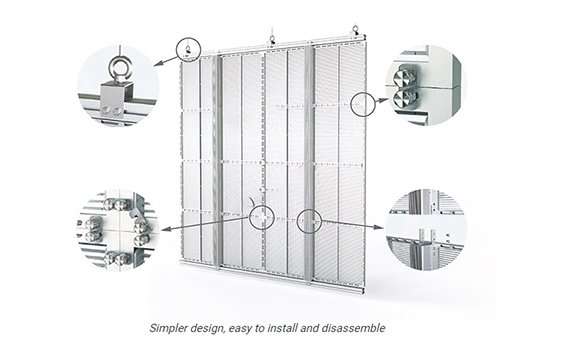

Easy to install

Easy to install

There are 2 methods of installation: standing and hanging, no need for a steel frame structure, which is easy to install and disassemble. Also, the power supply and the module are designed by integrated, so when you are preparing, will save you time.

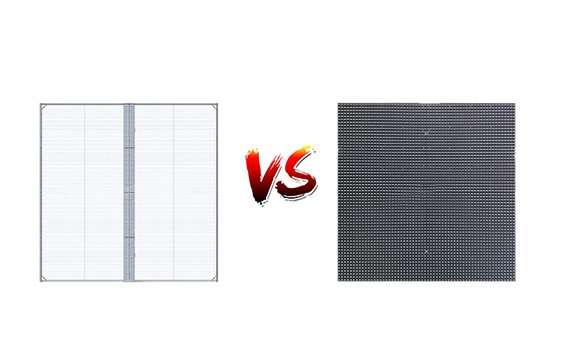

Light weight

The transparent weight is just 12kg per sqm, which is half the weight of the traditional cabinets, so it will be easier to install and move. And also offers the convenience of transport.

Light weight
Application in stage

Activities use

This can be used in many places, so it will be a good way to make an advertisement or hold an activity. The nice video and good appearance can give the audience an immersive experience.

High transparency

The LED screen can be installed at the outside for rental, the high transparency makes the whole LED screen attract more attention than traditional black LED screens.

Due to the lightweight, the installation is also done in a short time without much labors.

High transparency

Parameter

Model LTR3.9-7.8 LTR5.2-10.4 LTR10.4 LTR15.6
Pixel Pitch(mm) H:3.9 V:7.8 H:5.2 V:10.4 H:10.4 V:10.4 H:15.6 V:15.6
Transparency Rate 53% 58% 58% 80%
Resolution(dot/ m²) 32768 18432 9216 4096
Cabinet Resolution 256×64 192×48 96×48 64×32
Weight(Kg/ m²) 15 15 15 15
Refresh(Hz) 3840 3840 3840 3840
Driving IC ICN2153PWM MY9866 MY9866 ICN2038S
Scan Mode 1/8 1/4 1/2 Static
LED Type SMD1921 SMD1921 SMD2727 SMD2727
Brightness(cd/ m²) ≥ 4500 ≥ 5500
Lamp Life Span ≥ 100 000 hours
Pixel Compose RGB all in one
Grey Scale 14bit
Max Power Consumption(W/ m²) 800
Ave. Power Consumption(W/ m²) 260
LED Control System NOVA
Connection & Control WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control
IP Level IP65
Clean Ghosting Yes
Input Power AC100~240V 50/60Hz
Module Input Power DC4.7~5V ±0.2V
Cabinet Size(mm) 1000x500x80
Cabinet Material Die Casting
Maintenance Front/ Rear Maintenance
Working Tempareture and humidity Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing
Installation Hanging (vertical 20pcs cabinet) 10 )/ Stacking / Fixed installation
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
