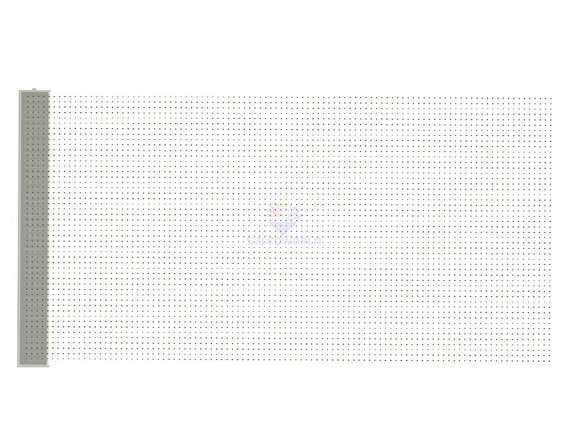

• transparent led display film front

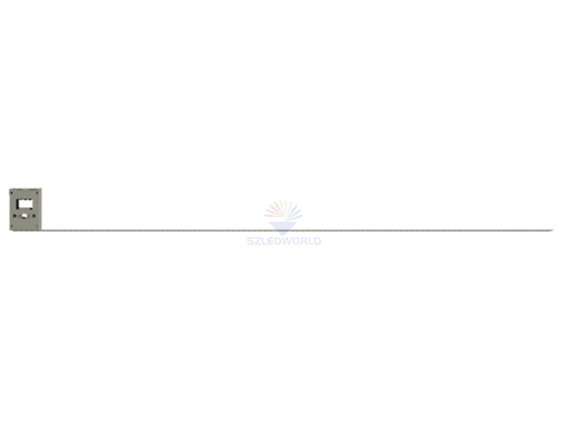

  • transparent led display film side
  • transparent led display film dimension
  • transparent led display film flexible
  • transparent led display film front-02
  • transparent led display film back
  • transparent led display film front
  • transparent led display film side
  • transparent led display film dimension
  • transparent led display film flexible
  • transparent led display film front-02
  • transparent led display film back

Transparent LED Film Display-LSR Series

Transparent LED film display is a new technical transparent LED display. It is soft, ultra-thin, and easy to install. It is directly attached to the glass and displays pictures, videos, text, and other content, adding a technological and visual sense to your glass.

  • Curvature: 1100R;
  • Transparency: >90%;
  • Lightweight: 3kg/sqm;
  • Thin: 2.5 mm;
  • High brightness: 2000~4000nits;
  • Can be cropped;
  • Easy for installation;
  • Support single-point continuation.







Classification by pixel pitch

Pixel pitch is the most important parameter that affects the performance of transparent LED film displays. The smaller the pixel pitch, the higher the resolution, so the displayed content will be clearer, but the price will be higher. Common pixel pitch models include P6, P6.25, P8, P10, P15, and P20.

P6 transparent led film dispaly
LSR6

P6 transparent LED film display

  • Pixel pitch: 6mm
  • Lamp: SMD1515
  • Standard unit size: 816mmX384mm
  • Resolution: 136*64=8,704 dots/pcs
  • Transparency: 90%

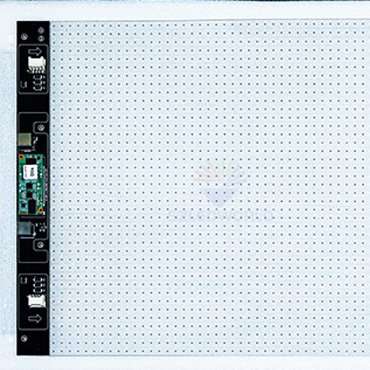

P6.25 transparent led film-370x370
LSR6.25

P6.25 transparent LED film display

  • Pixel pitch: 6.25 mm
  • Lamp: SMD1515
  • Standard unit size: 1000mmX400mm
  • Resolution: 160*64=10,240 dots/pcs
  • Transparency: 90%
P8 transparent led film-370x370
LSR8

P8 transparent LED film display

  • Pixel pitch: 8 mm
  • Lamp: SMD1515
  • Standard unit size: 1000mmX400mm
  • Resolution: 125*50=6,250 dots/pcs
  • Transparency: 92%
P10 transparent led film
LSR10

P10 transparent LED film display

  • Pixel pitch: 10 mm
  • Lamp: SMD1515
  • Standard unit size: 1000mmX400mm
  • Resolution: 100*40=4,000 dots/pcs
  • Transparency: 94%
P15 transparent led film
LSR15

P15 transparent LED film display

  • Pixel pitch: 15 mm
  • Lamp: SMD1515
  • Standard unit size: 1000mmX400mm
  • Resolution: 66*26=1,716 dots/pcs
  • Transparency: 94%
P20 transparent led film-370x370
LSR20

P20 transparent LED film display

  • Pixel pitch: 20 mm
  • Lamp: SMD1515
  • Standard unit size: 1000mmX400mm
  • Resolution: 50*20=1,000 dots/pcs
  • Transparency: 94%
6 Products Found.

Product Features

brightness-100
High brightness

The brightness can reach 4000nits, and the image can be seen clearly outdoors

Cuttable
Cuttable

You can crop and modify the size of the LED screen, and it will work normally after cropping.

breakpoint continuity-100
Breakpoint continuation

If there is a problem with one or several of the lamps, it will not affect the normal operation of the other lamps.

soft
Flexible

Can be rolled up, with a curvature of 1100R, and can be spliced into special-shaped structures

Easy Installation

The easiest LED display to install, the transparent LED film display comes with adhesive, which has super strong adsorption force. The longer it sticks, the stronger it becomes.
So it does not require a steel structure and just spray water directly on the glass, scrape it flat, and connect the power cord to work normally.

easy installation of the film led display
High light transmittance of the transparent led film display

High Light Transmittance

To improve the light transmittance of the transparent LED film display, we use 1.5×1.5mm integrated small lamps and invisible circuit boards.
Its light transmittance can reach more than 90% and has no impact on the light transmittance of glass.

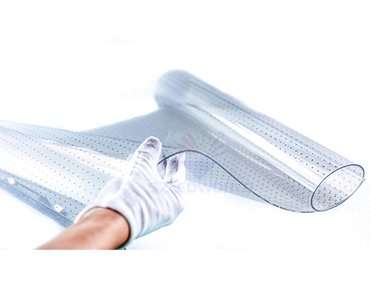

Flexibility

It has a high curvature of 1100R and can be curled to 360 degrees, so it can be pasted and installed on any curved or round glass surface

Flexible transparent led film display
transparent led film display cut

Cuttable

The size of a single cabinet can be cut and modified. For example, when you install it on-site, the size of the glass installation position is smaller than the size of the transparent led film LED display. You can cut off the excess part and it will still work normally.

Light & Thin

The weight is only 3kg/square meter, so it is very light when transporting and installing it, which can save costs.
The thickness is only 2.5mm. When it is attached to your glass, it will hardly affect the normal structure of the original glass.

Thin and light of the transparent led film display
Breakpoint continuation

Breakpoint Continuation

When one or several lamps in the Transparent LED film display are collided or scratched and do not display, it will not affect the normal operation of other lamp beads.

Flame retardant and UV resistant

It reaches the V1 flame retardant level and is not easy to burn.
It has good UV resistance and will not turn yellow even after working for 8 years when facing outdoor sunlight.

G rade V 1 flame of the transparent led film display
Structure and composition

Structure and composition

The release film is the outermost layer, used to protect the adhesive layer and the light panel inside;
The Adhesive layer is self-adhesive and is used to stick directly to the glass;
The bead circuit is the core layer, the light board layer that emits light to display the screen;
The substrate is the bottom layer, which is the base layer for installing light panels.

Videos of the Flexible Transparent LED Film Display

Flexible transparent Film LED display product details
Flexible transparent Film LED display application

Transparent LED Film Display Application

Transparent LED film display application 03
Company or Chain Store

Installed on the indoor glass of enterprises or chain stores to enhance the brand image of enterprises or chain stores, play notices, product advertising information, etc.

Transparent LED film display application 01
Glass Handrail

Installed on the glass of shopping mall escalators, it displays brand information, new product releases, shopping mall advertising, latest offers, discounts, promotional information, etc.

Transparent LED film display application 02
Wedding Chapel

When the transparent LED film LED display is installed on the unique wedding chapel, you can customize and play any video effect you want for the wedding, adding a sense of romance and technology to the scene.

Transparent LED film display application 04
Installed in Glass Showcase

It is pasted on the glass window, it is thin and does not take up space in the store. It is used to display advertising information such as product discounts and promotions, attract the attention of passers-by, increase product sales, and increase economic benefits.

Transparent LED film display application 05
Customize Installation

Transparent film LED display can be customized according to your needs in any shape, such as square, circle, ring, wave, streamer, etc

Parameters and catalog download

Model P6 P6.25 P8 P10 P15 P20
Module size(mm) 816*384 160*64 1000*400 1000*400 990*390 1000*400
LED Lamp SMD1515 SMD1515 SMD1515 SMD1515 SMD1515 SMD1515
Pixel composition R1G1B1 R1G1B1 R1G1B1 R1G1B1 R1G1B1 R1G1B1
Pixel spacing    (mm) 6*6 6.25*6.25 8*8 10*10 15*15 20*20
Module pixel 136*64=8704 160*64=10,240 125*50=6250 100*40=4000 66*26=1716 50*20=1000
Pixel/m2 27,777 25,600 16,500 10,000 6,625 2,500
brightness 2000/4000 2000/4000 2000/4000 2000/4000 2000/4000 2000/4000
permeability 90% 90% 92% 94% 94% 95%
Angle of view ° 160 160 160 160 160 160
input voltage AC110 – 240V50/ 60Hz AC110 – 240V50/ 60Hz AC110 – 240V50/ 60Hz AC110 – 240V50/ 60Hz AC110 – 240V50/ 60Hz AC110 – 240V50/ 60Hz
peak power 400w/㎡ 400w/㎡ 400w/㎡ 400w/㎡ 400w/㎡ 400w/㎡
Average power 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡ 200w/㎡
Work environment Temperature –        20~55 Humidity      10-90% Temperature –        20~55 Humidity      10-90% Temperature –     20~55 Humidity  10-90% Temperature –   20~55 Humidity 10-90% Temperature –   20~55 Humidity 10-90% Temperature –   20~55 Humidity 10-90%
Weight 3kg/㎡ 3kg/㎡ 3kg/㎡ 3kg/㎡ 3kg/㎡ 3kg/㎡
thickness 2.5mm 2.5mm 2.5mm 2.5mm 2.5mm 2.5mm
Drive mode static state static state static state static state static state static state
Control system Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight Nova/Colorlight
Typical value    of life 100000H 100000H 100000H 100000H 100000H 100000H
Grayscale level 16bit 16bit 16bit 16bit 16bit 16bit
Refresh rate 3840Hz 3840Hz 3840 Hz 3840Hz 3840 Hz 3840 Hz
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
What is the transparent led film price?

The transparent LED film price is 980 USD/square meter to 5000 USD/square meter. The biggest impact on the price is the pixel pitch. The reference prices of different pixel pitches are as follows:

  • P6 Unit price 3750USD/sqm to 4500USD/sqm;
  • P6.25 Unit price 3550USD/sqm to 4260USD/sqm;
  • P8 Unit price 2490USD/sqm to 3000USD/sqm;
  • P10 Unit price 1960USD/sqm to 2350USD/sqm;
  • P15 Unit price 1450USD/sqm to 1750USD/sqm;
  • P20 Unit price 1250USD/sqm to 1500USD/sqm;

The above prices are for reference only and prices may fluctuate in different periods.
