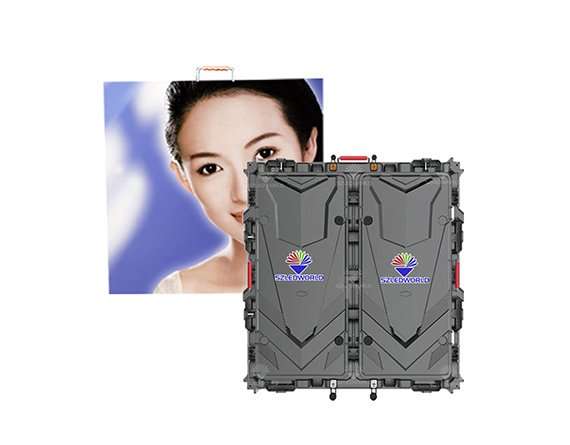

• LFT outdoor fixed led display front and back
  • LFEN outdoor fixed led display side
  • LFEN outdoor fixed led display front and back
  • LFEN outdoor fixed led display front
  • LFEN outdoor fixed led display back
  • LFT outdoor fixed led display front and back
  • LFEN outdoor fixed led display side
  • LFEN outdoor fixed led display front and back
  • LFEN outdoor fixed led display front
  • LFEN outdoor fixed led display back

LFT series thin outdoor fixed led display

The LFT series focuses on being light, thin, rust-proof, and beautiful. If you have such needs, it is your best choice. Standard cabinet size 960x960mm is also available in 1280x960mm and 640x960mm. A single cabinet weighs 25kg/pcs, and the thickness of the cabinet is about 102mm.

  • Cabinet: 960×960 mm
  • Magnesium or aluminum alloy cabinets
  • Thin and lightweight
  • Seamless
  • Fast locks and connectors
  • High-definition and contrast

Feature

P8 outdoor 960-structure

Good design

The cabinet combined with the connecting lock, pulling handle, location pin, key hole and rear door, which make the led screen install convenient, and has more and more function.

Lightweight

The cabinet is just 25Kg per pcs, this can be moved easily by even one person, so it can save time when installing and save labor when in transportation.

P8 outdoor 960-light
P2.5 outdoor fixed 960x960mm cabinets back

Good heat dissipation

Good heat dissipation performance will be a good protection for the module circuit, so this will prolong the LED screen use life.

Parameter

Pixel Pitch P4 P8
LED type SMD 1921 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD
Pixel density 62,500 pixels/m2 15,625 pixels/m2
Module dimension(W*H) 256*128mm 256*128mm
Module resolution 64*32dots 32*16dots
Drive Method 1/8 scan 1/4 scan
Cabinet size (W*H) 1024*768mm 1024*768mm
Cabinet depth 102mm 102mm
Cabinet material magnesium or aluminum alloy magnesium or aluminum alloy
Cabinet weight 25kg/pcs 25kg/pcs
Brightness ≥6500 cd/m2 ≥5500 cd/m2
Best Viewing Distance 4m to 40m 8m to 80m
Viewing Angle 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ
Power consumption(Avg.) 400w/cabinet 270w/cabinet
Power consumption(Max.) 1200w/cabinet 800w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65
Warranty 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P3 P6
LED type SMD1921 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD
Pixel density 111,111 pixels/m2 27,777 pixels/m2
Module dimension(W*H) 192*192mm 192*192mm
Module resolution 64*64dots 32*32dots
Drive Method 1/16 scan 1/8 scan
Cabinet size (W*H) 768*768mm 768*768mm
Cabinet depth 102mm 102mm
Cabinet material magnesium alloy magnesium alloy
Cabinet weight 18kg/pcs 18kg/pcs
Brightness ≥5500 cd/m2 ≥5000 cd/m2
Best Viewing Distance 3m to 30m 6m to 60m
Viewing Angle 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ
Power consumption(Avg.) 270 w/cabinet 200w/cabinet
Power consumption(Max.) 800 w/cabinet 600w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65
Warranty 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P3.33 P4 P5 P6.67 P8 P10
LED type SMD1921 SMD 1921 SMD 1921 SMD 3535 SMD 3535 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 90,000 pixels/m2 62,500 pixels/m2 40,000 pixels/m2 22,500 pixels/m2 15,625 pixels/m2 10,000 pixels/m2
Module dimension(W*H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 96*48dots 80*40dots 64*32dots 48*24dots 40*20dots 32*16dots
Drive Method 1/12 scan 1/10 scan 1/8 scan 1/6 scan 1/5 scan 1/2 scan
Cabinet size (W*H) 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm
Cabinet depth 102mm 102mm 102mm 102mm 102mm 102mm
Cabinet material magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy
Cabinet weight 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs
Brightness ≥5500 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 6000 cd/m2 5800 cd/m2 6500 cd/m2
Best Viewing Distance 3m to 30m 4m to 40m 5m to 50m 6m to 60m 8m to 80m 10m to 100m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Power consumption(Avg.) 400 w/cabinet 300w/cabinet 300w/cabinet 270w/cabinet 300w/cabinet 300w/cabinet
Power consumption(Max.) 1200 w/cabinet 900w/cabinet 900w/cabinet 800w/cabinet 900w/cabinet 900w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65 IP65 IP65
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
