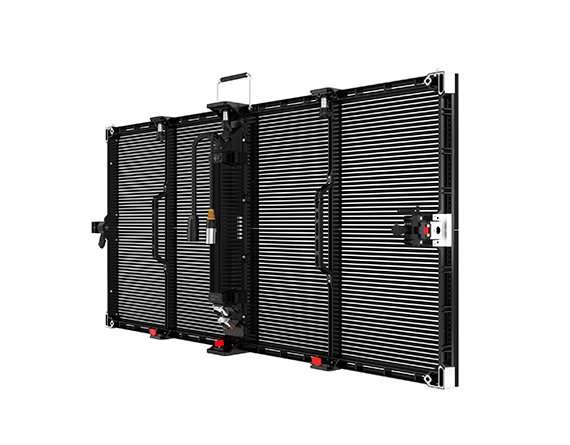

• transparent outdoor rental led screen side

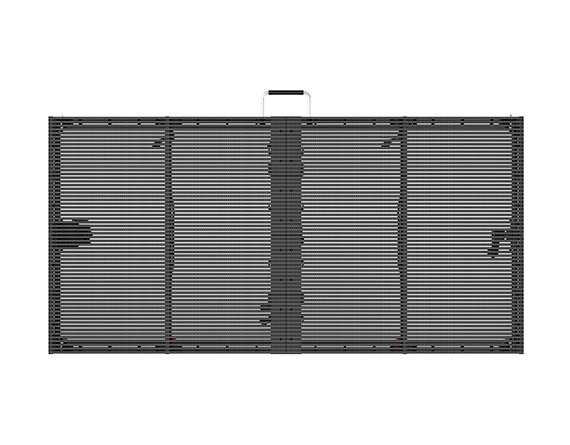

  • transparent outdoor rental led screen back
  • Outdoor transparent rental led screen
  • transparent outdoor rental led screen back
  • splice together
  • transparent outdoor rental led screen side
  • transparent outdoor rental led screen back
  • Outdoor transparent rental led screen
  • transparent outdoor rental led screen back
  • splice together

Rental outdoor Transparent led screen ( TRO series)

A Rental outdoor transparent LED screen is a lightweight, high-brightness, and easy-to-assemble product for outdoor rental use. This has the feature of high transparency and high definition, and also has a curved lock, so you can make it into a flexible LED screen. so it is a good choice for your outdoor rental use.

  • High brightness  ≥4500
  • Easy maintenance, with fast locks and cable connectors
  • Lightweight and slim 15kg/sqm
  • IP65 waterproof
  • High refresh rate
  • Wide viewing angle
  • High transparency

Feature

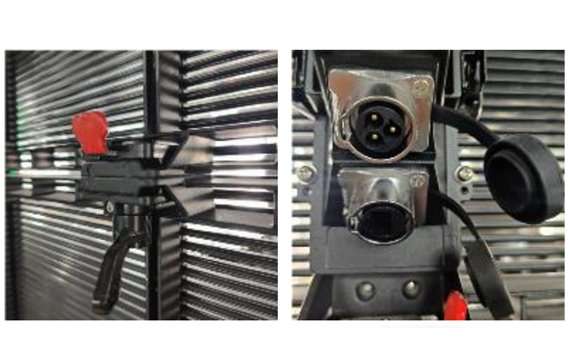

rental feature

Convenient for rental

It has the characteristics of an outdoor transparent screen and a rental LED display, such as quick locks and wire connectors, which can quickly install splicing cabinets and wires.

Low wind resistance

The surface of the Rental outdoor transparent LED screen is mesh-shaped. When the wind blows through the LED screen, it can pass through it, so the LED screen withstands little wind resistance.

Low wind resistance
super slim

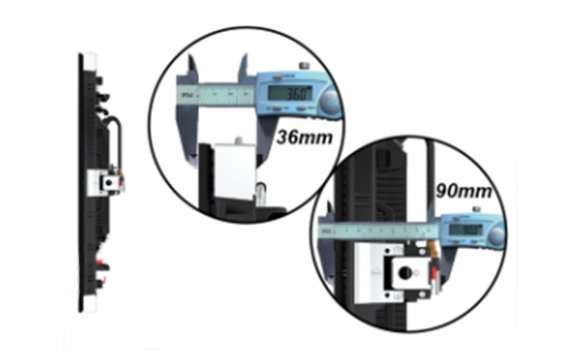

Super slim

The cabinet’s thickness range is 90 to 36mm, which is very thin, so the cabinet is light and easy to install and transport.

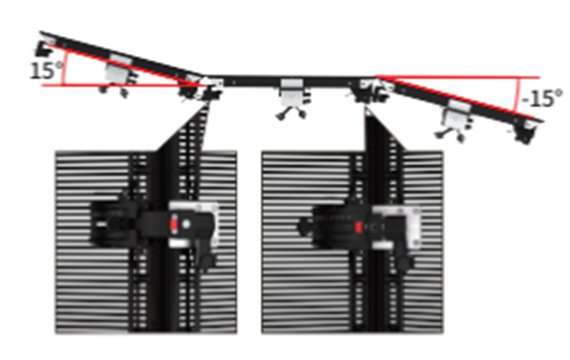

15° angle-cut arc lock cabinet

The lock can be adjusted according to the scale, which can make a 15° internal arc and a -15° external,  arc so that it can be customized according to the needs combined into a curved screen.

flexible angle
multiple installation

Stacking or hanging installation

Two installation methods can install the screen according to your needs, this can offer you more convenience when you choose the installation site.

Easy Maintenance

The cabinet includes the front and rear maintenance.

Rear maintenance requires enough space behind the screen.

The front maintenance method means that the screws can be removed from the front of the screen.

You can choose one method that suits you according to your needs.

Easy to maintain

Parameter

Module Pixel Pitch(mm) W:3.9 H:7.8 W:5.2 H:10.4 W:10.4 H:10.4 W:15.6 H:15.6
Transparency 53% 65% 65% 80%
Pixel(dot/m²) 32768 18432 9216 4096
Driver chip ICN2153PWM MY9866 MY9866 ICN2038S
refresh rate(hz) 5120~7000 3840 3840 5120~7000
Brightness(cd/m²) ≥4500 ≥4500 ≥4500 ≥4500
LED specification SMD1921 SMD1921 SMD2727 SMD2727
Best viewing distance/m 4 6 10 15
Maximum viewing angle 140°
LED lamp life ≥100,000 hours
LED pixel composition RGB 3 in 1
Cabinet Cabinet connection Fast lock
Cabinet material Die cast aluminum
Maintenance Front / Rear
Protection grade IP65
Cabinet size(mm) 1000*500*80
Cabinet weight 15kg/m²
Screen Grayscale level 14bit
Color temperature 3000k/12000k Adjustable
MTBF ≥ 6500 hours
Working temperature -20~60℃ / 20%~90%
Storage temperature -15~55℃ / 10%~90%
shadow removal System standard
LED control system Nova
Data connection WiFi / DVI / HDMI / DP / USB/RJ45 network remote control
Input voltage AC100~240V 50/60Hz
Maximum Power(W/m²) 800
Average Power(W/m²) 240
Installation method Hanging (10 cabinets vertically) /base installation/fixed installation
Packing Wooden box or flightcase
