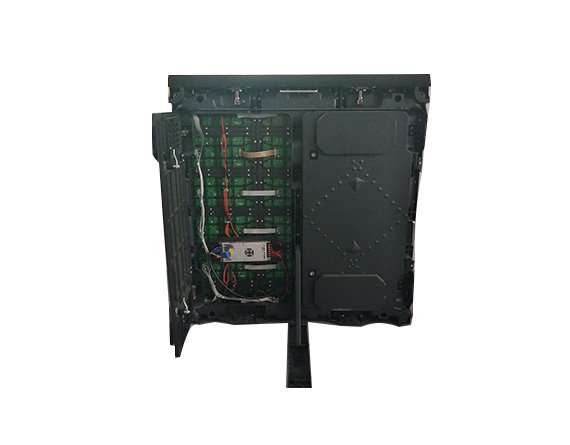

  • P8 outdoor perimeter led display back
  • P8 outdoor perimeter led display back
  • P8 outdoor perimeter led display side
  • P8 outdoor perimeter led display side
  • P8 outdoor perimeter led display front
  • P8 outdoor perimeter led display front and back
  • P8 outdoor perimeter led display back
  • P8 outdoor perimeter led display back
  • P8 outdoor perimeter led display side
  • P8 outdoor perimeter led display side
  • P8 outdoor perimeter led display front

P8 Outdoor Perimeter LED Display

P8 Outdoor Perimeter LED Display is a high brightness, high definition, high contrast, and full color LED display, it can be used in many applications. We use an HD system, which can make the LED screen operate even if you are not on-site, it gives you more convenience. we can make two maintenance methods that you can choose back or front service according to your needs.

  • Cabinet: 960×960 mm
  • Pixel pitch: 8mm
  • lightweight
  • Die-cast aluminum cabinet
  • 60 to 90° angle adjustable
  • IP65 waterproof
  • High contrast ratio

Feature

Soft mask

Soft mask

The soft mask can have good protection for the athletes and module lamps under the condition no much cost. And it can extend the using time of the cabinets.

Support leg

The middle leg can support the cabinet stand on the ground, and it also can adjust the viewing angle from 60 to 90, you can choose one angle that fits the match, or according to the athlete needs to adjust, it will be more flexible.

Support leg
Top hat

Top hat

The top hat can be put down at any time when you want to use it for regular use, it make the LED display has two applications in daily life, one can be used in a football court, and the other one can be used at any other outdoor sites for making advertising.

IP65 waterproof

The IP65 waterproof level means the LED screen is not limited by the moist environment, you can use it normally, so you do not consider these factors. Maybe it can save you the cost of renting a new dry site.

IP65 waterproof

Parameter

Pixel Pitch P8
LED type SMD 3535
Pixel configuration 3-in-1 SMD
Pixel density 15,625 pixels/m2
Module dimension(W*H) 320*160mm
Module resolution 40*20dots
Mask soft
Drive Method 1/5 scan
Cabinet size (W*H) 960/1280*960mm
Cabinet depth 102mm
Cabinet material magnesium or aluminum alloy
Cabinet weight 25kg/pcs
Mounting legs Middle leg
Protective cover Soft tophat
Brightness 5800 cd/m2
Best Viewing Distance 8m to 80m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ
Power consumption(Avg.) 300w/cabinet
Power consumption(Max.) 900w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Sync or Async
Certificates CE,RoHs,FCC,UL
Ingress Protection (IP) IP65
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P5 P6.67 P8 P10 P16
LED type SMD 1921 SMD 3535 SMD 3535 SMD 3535 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 40,000 pixels/m2 22,500 pixels/m2 15,625 pixels/m2 10,000 pixels/m2 3906 pixels/m2
Module dimension(W*H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 64*32dots 48*24dots 40*20dots 32*16dots 32*16dots
Mask soft soft soft soft soft
Drive Method 1/8 scan 1/6 scan 1/5 scan 1/2 scan 1/2 scan
Cabinet size (W*H) 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm
Cabinet depth 102mm 102mm 102mm 102mm 102mm
Cabinet material magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy Iron
Cabinet weight 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs
Mounting legs Middle leg Middle leg Middle leg Middle leg Middle leg
Protective cover Soft tophat Soft tophat Soft tophat Soft tophat Soft tophat
Brightness ≥5500 cd/m2 6000 cd/m2 5800 cd/m2 6500 cd/m2 6500 cd/m2
Best Viewing Distance 5m to 50m 6m to 60m 8m to 80m 10m to 100m 10m to 100m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Power consumption(Avg.) 300w/cabinet 270w/cabinet 300w/cabinet 300w/cabinet 300w/cabinet
Power consumption(Max.) 900w/cabinet 800w/cabinet 900w/cabinet 900w/cabinet 900w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65 IP65
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
