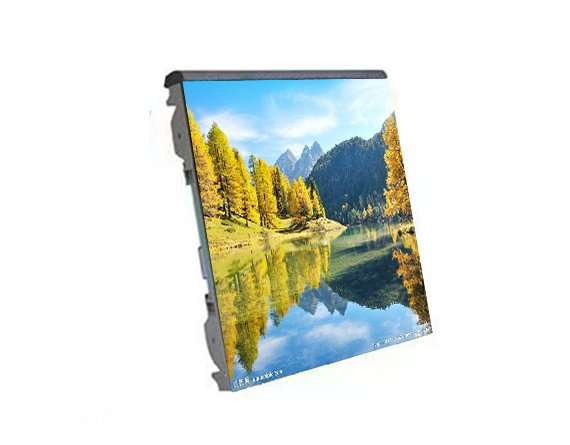

P5 Outdoor Perimeter LED Display
P5 Outdoor Perimeter LED Display is the most popular stadium-led screen, it has good display effection and price, and it can achieve your goal at lower cost. The view distance is longer, so even if you are far away from the LED screen, you also can see it clearly at a far distance. It can be controlled by remoting, making your work easier than before.
- Cabinet: 960×960 mm
- Pixel pitch: 5mm
- Max power consumption: 900w/cabinet
- Die-cast aluminum cabinet
- Brightness: ≥5500 cd/m2
- IP65 waterproof
- Operating Temperature:-20° – 50° C
Feature

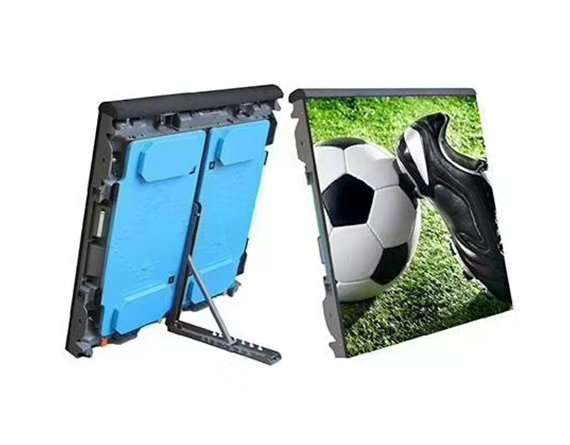

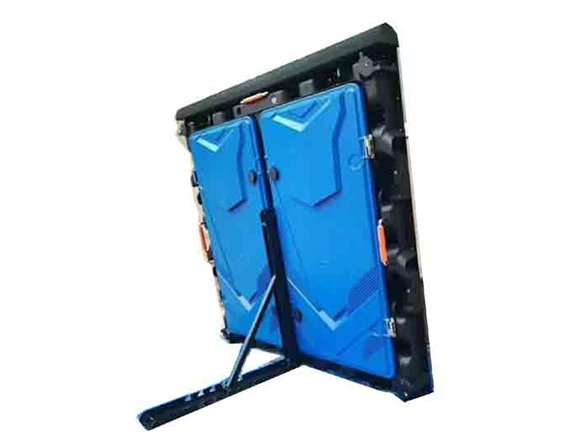

Adjustable support leg
The support leg can adjust the cabinet angle from 30 to 90, so you can choose the right angle for the player or audience, this can give others a good watching experience.
Fast lock
The side fast lock can join the two cabinets within 8 seconds, so it will be a good design when you are installing the led screen, this will save your time.
Good design
The cabinets include many parts, these parts make the cabinets operate normally even if there is just one cabinet working. Especially, the top hat can protect the player far away from injury.
Parameter
- P5 perimeter led display parameter
- perimeter led display series parameter
| Pixel Pitch | P5 |
| LED type | SMD 1921 |
| Pixel configuration | 3-in-1 SMD |
| Pixel density | 40,000 pixels/m2 |
| Module dimension(W*H) | 320*160mm |
| Module resolution | 64*32dots |
| Mask | soft |
| Drive Method | 1/8 scan |
| Cabinet size (W*H) | 960/1280*960mm |
| Cabinet depth | 102mm |
| Cabinet material | magnesium or aluminum alloy |
| Cabinet weight | 25kg/pcs |
| Mounting legs | Middle leg |
| Protective cover | Soft tophat |
| Brightness | ≥5500 cd/m2 |
| Best Viewing Distance | 5m to 50m |
| Viewing Angle | 140 * 140 |
| Grey Level | 14 Bit |
| Refresh Rate | ≥1920HZ |
| Power consumption(Avg.) | 300w/cabinet |
| Power consumption(Max.) | 900w/cabinet |
| Humidity-operating | 10% ~ 95% |
| Operating Temperature | -20° – 50° C |
| Screen life | ≥100000 hours |
| Controlling System | Sync or Async |
| Certificates | CE,RoHs,FCC,UL |
| Ingress Protection (IP) | IP65 |
| Warranty | 2 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |
| Pixel Pitch | P5 | P6.67 | P8 | P10 | P16 |
| LED type | SMD 1921 | SMD 3535 | SMD 3535 | SMD 3535 | SMD 3535 |
| Pixel configuration | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD |
| Pixel density | 40,000 pixels/m2 | 22,500 pixels/m2 | 15,625 pixels/m2 | 10,000 pixels/m2 | 3906 pixels/m2 |
| Module dimension(W*H) | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 64*32dots | 48*24dots | 40*20dots | 32*16dots | 32*16dots |
| Mask | soft | soft | soft | soft | soft |
| Drive Method | 1/8 scan | 1/6 scan | 1/5 scan | 1/2 scan | 1/2 scan |
| Cabinet size (W*H) | 960/1280*960mm | 960/1280*960mm | 960/1280*960mm | 960/1280*960mm | 960/1280*960mm |
| Cabinet depth | 102mm | 102mm | 102mm | 102mm | 102mm |
| Cabinet material | magnesium or aluminum alloy | magnesium or aluminum alloy | magnesium or aluminum alloy | magnesium or aluminum alloy | Iron |
| Cabinet weight | 25kg/pcs | 25kg/pcs | 25kg/pcs | 25kg/pcs | 25kg/pcs |
| Mounting legs | Middle leg | Middle leg | Middle leg | Middle leg | Middle leg |
| Protective cover | Soft tophat | Soft tophat | Soft tophat | Soft tophat | Soft tophat |
| Brightness | ≥5500 cd/m2 | 6000 cd/m2 | 5800 cd/m2 | 6500 cd/m2 | 6500 cd/m2 |
| Best Viewing Distance | 5m to 50m | 6m to 60m | 8m to 80m | 10m to 100m | 10m to 100m |
| Viewing Angle | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 |
| Grey Level | 14 Bit | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
| Refresh Rate | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ | ≥1920HZ |
| Power consumption(Avg.) | 300w/cabinet | 270w/cabinet | 300w/cabinet | 300w/cabinet | 300w/cabinet |
| Power consumption(Max.) | 900w/cabinet | 800w/cabinet | 900w/cabinet | 900w/cabinet | 900w/cabinet |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% |
| Operating Temperature | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C |
| Screen life | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Controlling System | Sync or Async | Sync or Async | Sync or Async | Sync or Async | Sync or Async |
| Certificates | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 |
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |||||
