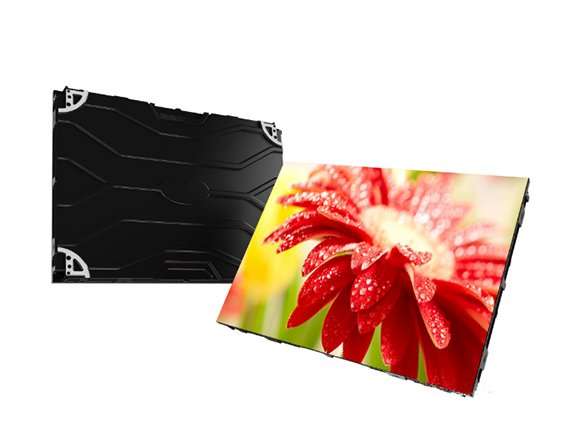

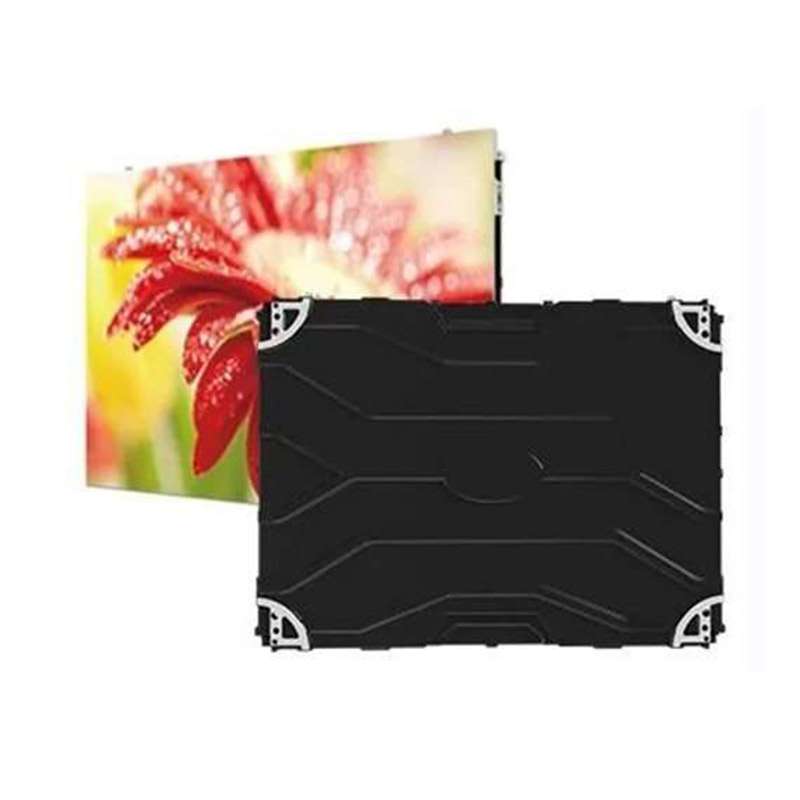

p5 indoor fixed led display
P5 indoor LED display is the best price and the display effect is not bad. It can be installed without cabinets, and the LED module is directly adsorbed on the tube. If it is not equipped with cabinets, you can choose air transportation to speed up the product delivery date and reduce the transportation cost.
- Pixel pitch: 5mm
- Resolution: 40,000 dots/sqm
- LED module size: 320x160mm
- LED module resolution: 64 x 32 dots
- Drive model: 1/16 scan
- Front or back service repair method
Feature

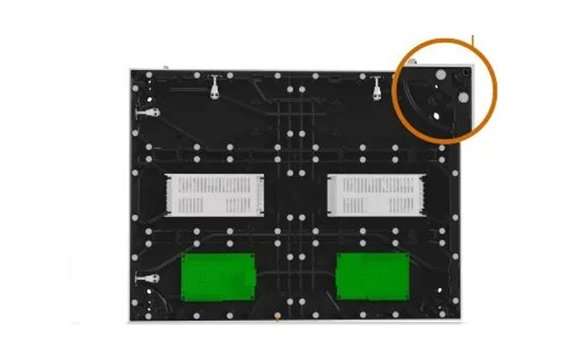

Protective corner
The cabinets with the protective corner, that can have a good protection for the modules, make the led screen more stable and use long time.

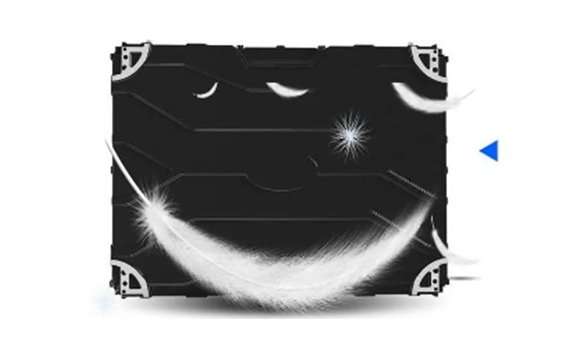

Light weight

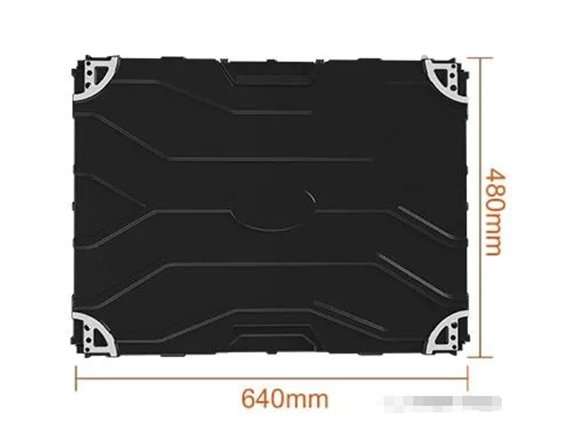

The cabinet is super light and thin, the weight is just 4.3kg, and the thickness is just 50mm, so it will be good choice for rental use, this can save time when you install the led screen.

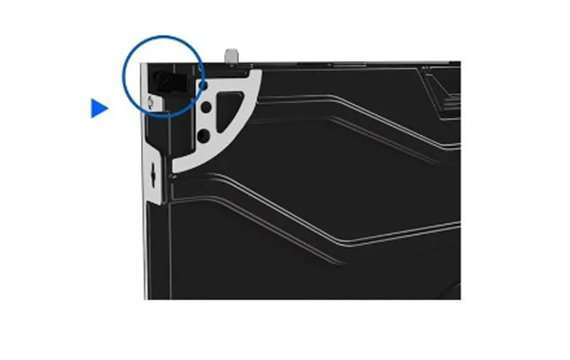

Front service
Here is a front-connect plat hole, which can put the modules by magnetic, no need for other tools, that makes the install and repair easier.
Parameter
- p5 indoor led display specification
- IF Indoor Fixed LED Display specification
| Model No. | IF5 |
| Pixel Pitch | 5 mm |
| Pixel Structure | 3 IN 1 SMD |
| Pixel Density | 40,000 pixel m2 |
| Module Resolution | 80×40 |
| Module Size (W X H) | 320×160 mm |
| White Balance Brightness | ≥800cd / m2 |
| Horizontal Viewing Angle | 140 Deg |
| Vertical Viewing Angle | 140 Deg |
| Brightness Uniformity | ≥ 97% |
| Contrast Ratio | ≥ 5000: 1 |
| Single processing bits | 16 bits*3 |
| Gray scale | 12-16 Bit |
| Drive Model | 1/16 scan |
| Maximum power consumption | 480W / m2 |
| Average power consumption | 160W / m2 |
| Frame Rate | ≥ 60 HZ |
| Refresh Rate | 1920-3840 HZ |
| Control Distance | Cable: 100m, Optical Fiber: 10 KM |
| Way to Control | Synchronous or asynchronous |
| Brightness Adjustment Range | 0-100 Stepless Adjustment |
| Color Temperature | 2000K-12500K Adjustable |
| Continuous Operation Time | ≥ 72h |
| Expected LED Lifetime (MAX): | > 100,000 hours |
| IP Rating | IP20 |
| Operating Temperature | -20 deg.C to 50 deg.c |
| Operating Humidity | 10%-80% RH No Condensation |
| Storage Temperature | -20 deg.c to 60 deg.c |
| Operating Voltage | DC 4.5-5V |
| Power Requirement | AC: 220/110 x (1±10%) V 50x (1±5%) Hz |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |
| Model No. | IF2 | IF2.5 | IF3.076 | IF4 | IF5 |
| Pixel Pitch | 2.0 mm | 2.5 mm | 3.076 mm | 4 mm | 5 mm |
| Pixel Structure | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Pixel Density | 250,000 pixel/m2 | 160,000 pixel/m2 | 105,625 pixel/m2 | 62,500 pixel/m2 | 40,000 pixel m2 |
| Module Resolution | 160×80 | 128×64 | 104×52 | 80×40 | 80×40 |
| Module Size (W X H) | 320×160 mm | 320×160 mm | 320×160 mm | 320×160 mm | 320×160 mm |
| White Balance Brightness | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 |
| Horizontal Viewing Angle | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 140 Deg |
| Vertical Viewing Angle | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 140 Deg |
| Brightness Uniformity | ≥ 97% | ≥ 97% | ≥ 97% | ≥ 97% | ≥ 97% |
| Contrast Ratio | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 |
| Single processing bits | 16 bits*3 | 16 bits*3 | 16 bits*3 | 16 bits*3 | 16 bits*3 |
| Grayscale | 12-16 Bit | 12-16 Bit | 12-16 Bit | 12-16 Bit | 12-16 Bit |
| Drive Model | 1/40 scan | 1/32 scan | 1/26 scan | 1/20 scan | 1/16 scan |
| Maximum power consumption | 730W / m2 | 730W / m2 | 650W / m2 | 650W / m2 | 480W / m2 |
| Average power consumption | 245W / m2 | 245W / m2 | 220W / m2 | 220W / m2 | 160W / m2 |
| Frame Rate | ≥ 60 HZ | ||||
| Refresh Rate | 1920-3840 HZ | ||||
| Control Distance | Cable: 100m, Optical Fiber: 10 KM | ||||
| Way to Control | Synchronous or asynchronous | ||||
| Brightness Adjustment Range | 0-100 Stepless Adjustment | ||||
| Color Temperature | 2000K-12500K Adjustable | ||||
| Continuous Operation Time | ≥ 72h | ||||
| Expected LED Lifetime (MAX): | > 100,000 hours | ||||
| IP Rating | IP20 | ||||
| Operating Temperature | -20 deg.C to 50 deg.c | ||||
| Operating Humidity | 10%-80% RH No Condensation | ||||
| Storage Temperature | -20 deg.c to 60 deg.c | ||||
| Operating Voltage | DC 4.5-5V | ||||
| Power Requirement | AC: 220/110 x (1±10%) V 50x (1±5%) Hz | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |||||
