P4.81 outdoor rental led display RS1000 series

The P4.81 outdoor rental LED display 500x1000mm is a powerful and reliable display, with a max power consumption of 1000W/㎡, and a high grayscale made with aluminum alloy, it can make you installed freely, and it also can show a vibrant and dynamic viewing experience for your audience.

  • Cabinet: 500×1000 mm
  • Pixel pitch: P4.81
  • Low noise, low consumption
  • High flatness
  • Metal heat dissipation
  • Super reliable
  • Portable

Feature

Light weight
Light weight

The cabinet is die-casting material, the weight is lighter than iron cabinets, and it also with a humanization handle that can make you use it more convenient, which can save your labor when you are mobiling it.

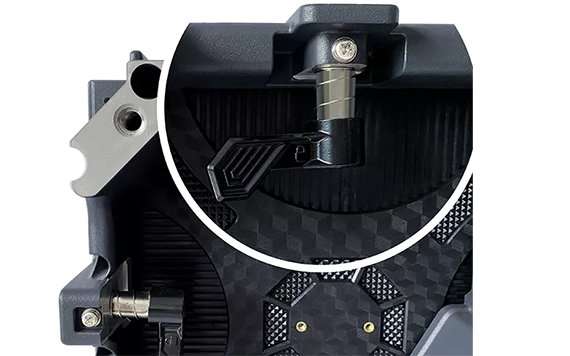

Fast lock

The fast lock takes more convenience to install and dismantle, you just install it with 5 second, this save your time well.

Corner Protective

Corner Protective

When we ship the cargo, there is a risk of damaging the cabinets or the modules, so we make the corners protective, which can solve this problem well.

High Drive IC

This cabinet with the best drive IC in the market, which can achieve high definition, high gray level, lower consumer, and color uniformity. It can make the display effect better than other screens and can help you attract more customers.

High drive IC

Parameter

Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD1415 SMD1415 SMD1921 SMD1921
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250mmx250mm 250mmx250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/24 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance back back back back
Cabinet size (W*H) 500*1000mm 500*1000mm 500*1000mm 500*1000mm
Cabinet depth 88mm 88mm 88mm 88mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 13kg/pcs 13kg/pcs 13kg/pcs 13kg/pcs
Brightness ≥4500 cd/m2 ≥4500 cd/m2 ≥4500 cd/m2 ≥4000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet 140w/cabinet 130w/cabinet 120w/cabinet
Power consumption(Max.) 400w/cabinet 400w/cabinet 390w/cabinet 390w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65
Warranty 3 Years 3 Years 3 Years 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD1415 SMD1415 SMD1921 SMD1921
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250mmx250mm 250mmx250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/24 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance back back back back
Cabinet size (W*H) 500*1000mm 500*1000mm 500*1000mm 500*1000mm
Cabinet depth 88mm 88mm 88mm 88mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 13kg/pcs 13kg/pcs 13kg/pcs 13kg/pcs
Brightness ≥4500 cd/m2 ≥4500 cd/m2 ≥4500 cd/m2 ≥4000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet 140w/cabinet 130w/cabinet 120w/cabinet
Power consumption(Max.) 400w/cabinet 400w/cabinet 390w/cabinet 390w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65
Warranty 3 Years 3 Years 3 Years 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
