P4.81 indoor rental led display RP500 series

P4.81 Indoor Rental LED Display 500x500mm is a diecasting cabinet, that is super light and super thin, making it portable, you can take it at any time when you are in an event. If you do not have a budget for buying an indoor rental led display, this will be the best choice, the price is the cheapest, but the effect is also well. It is used for meetings, exhibitions, weddings, foundations,  lighting and sound equipment, and other rental places.

  • Cabinet: 500×500 mm
  • Pixel pitch: 4.81mm
  • Vivid image and video display
  • Excellent performence
  • Ultra thin, Ultra light
  • Multi waterproof design
  • Excellent heat dissipation system

Feature

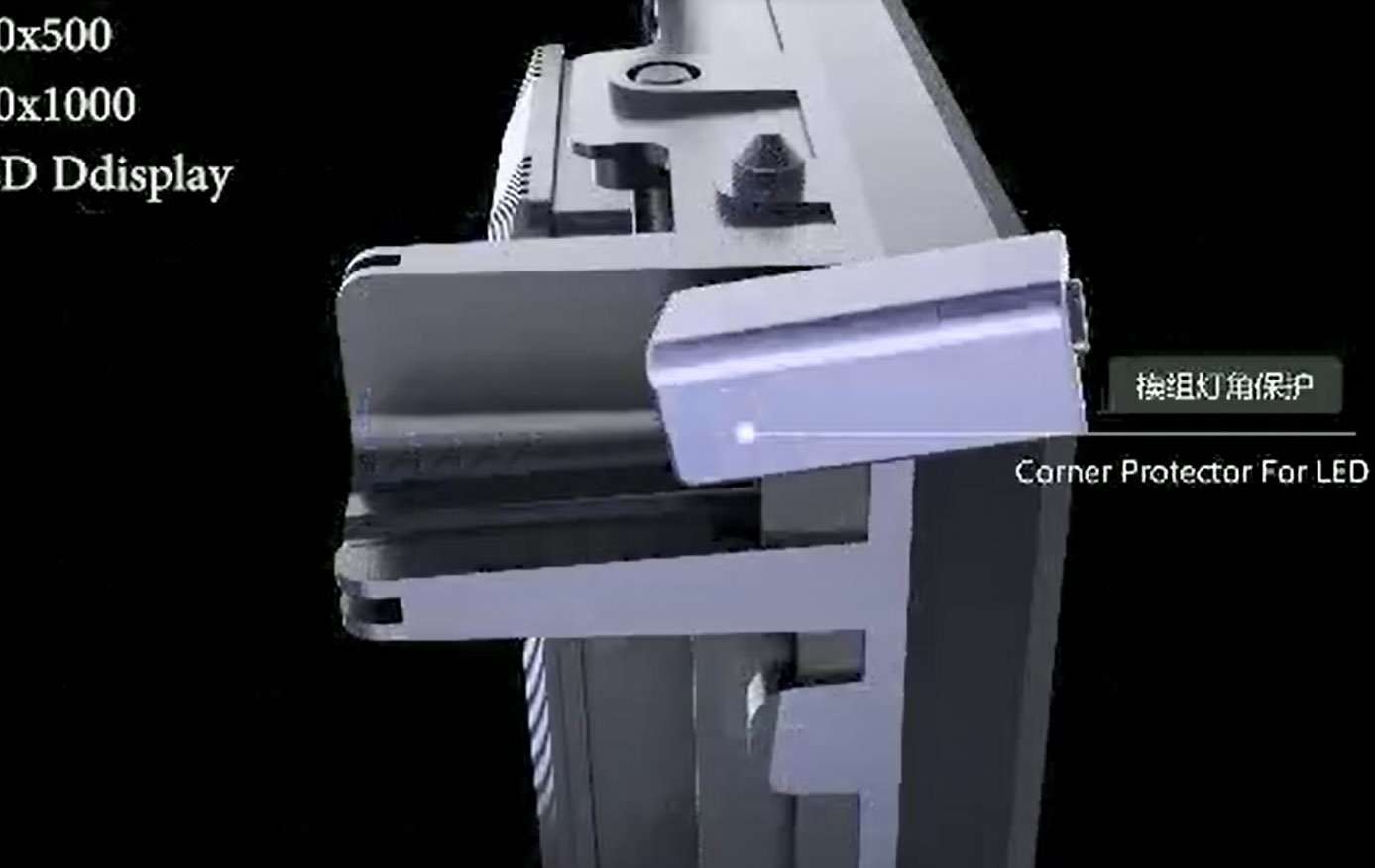

Anti-collision design

There is a corner protective that when you ship it, you can cover it, then it can protect the modules well, can lessen the damage to the product, When you use it, you can let it down, and there is no effection. It can save the cost of the package.

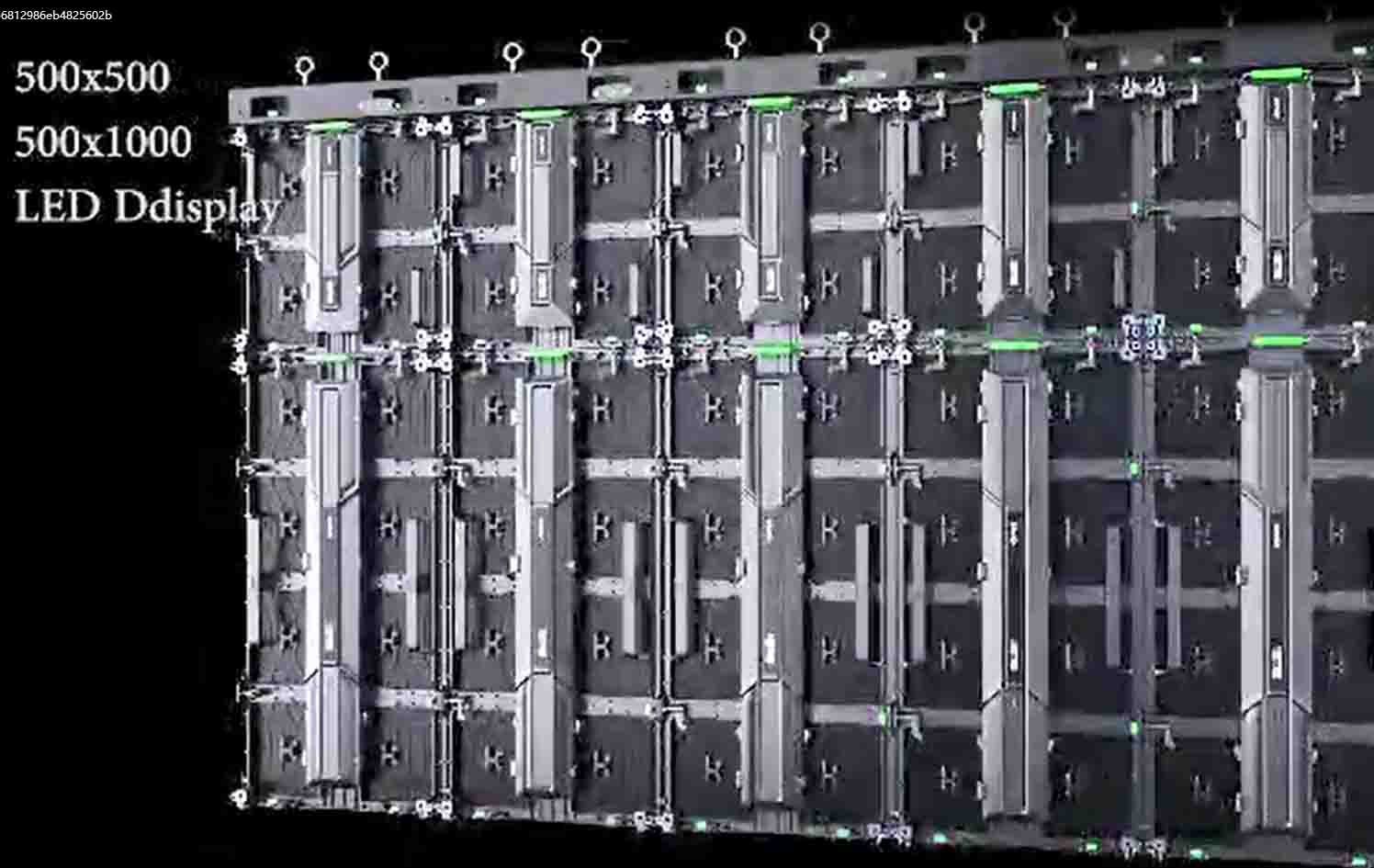

Compatitable with 500x500mm cabinets

You can connect the 500x500mm cabinet even if you use 500x1000mm at the same time, which can make your screen larger, and give the audience good and grand sight.

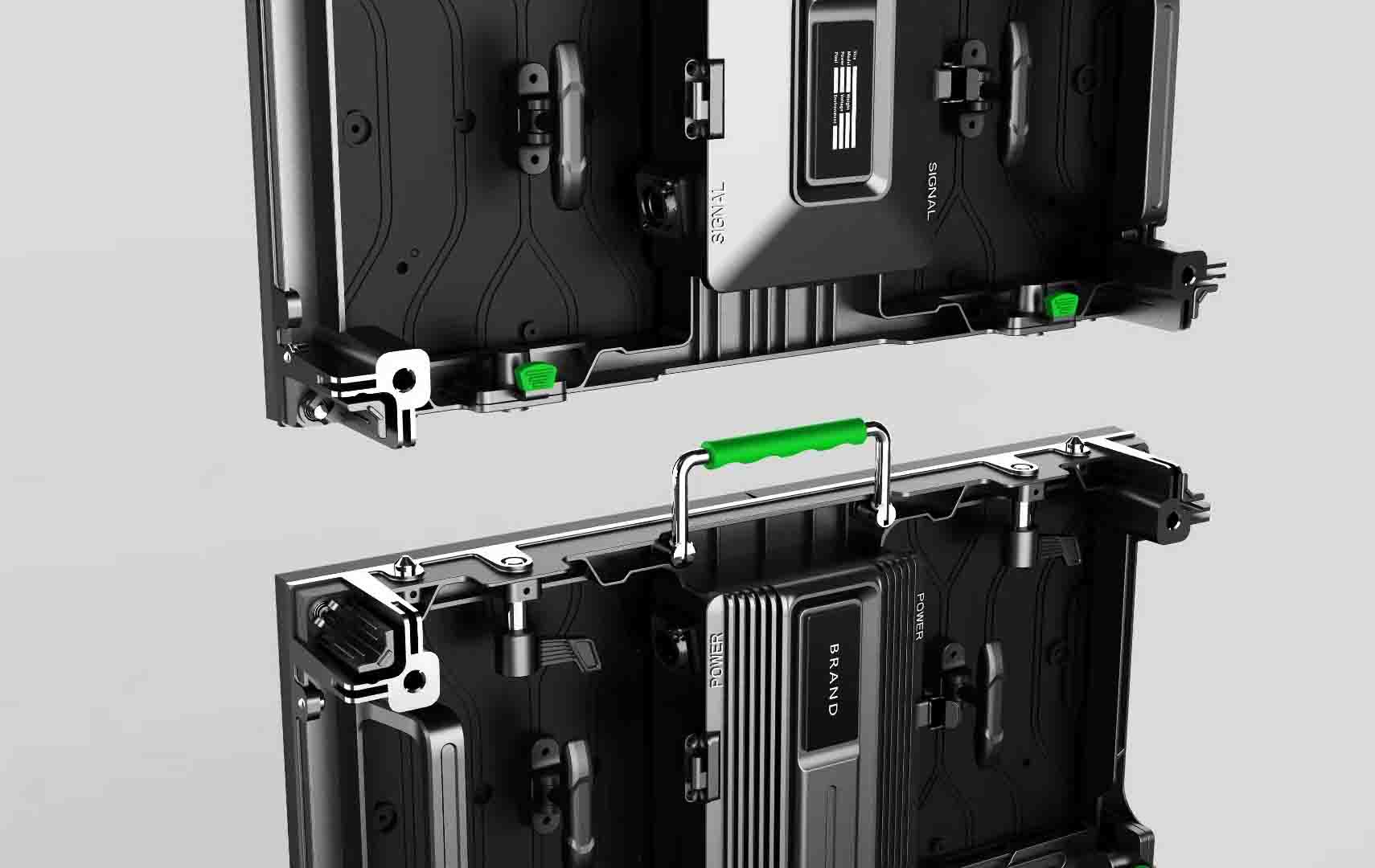

Fast lock

You can use the fast lock to connect the cabinets within 5 seconds, and the connection is seamless, the video that will be displayed will be clearer,  also assemble the cabinets within 5 seconds, save the time and cost in installing.

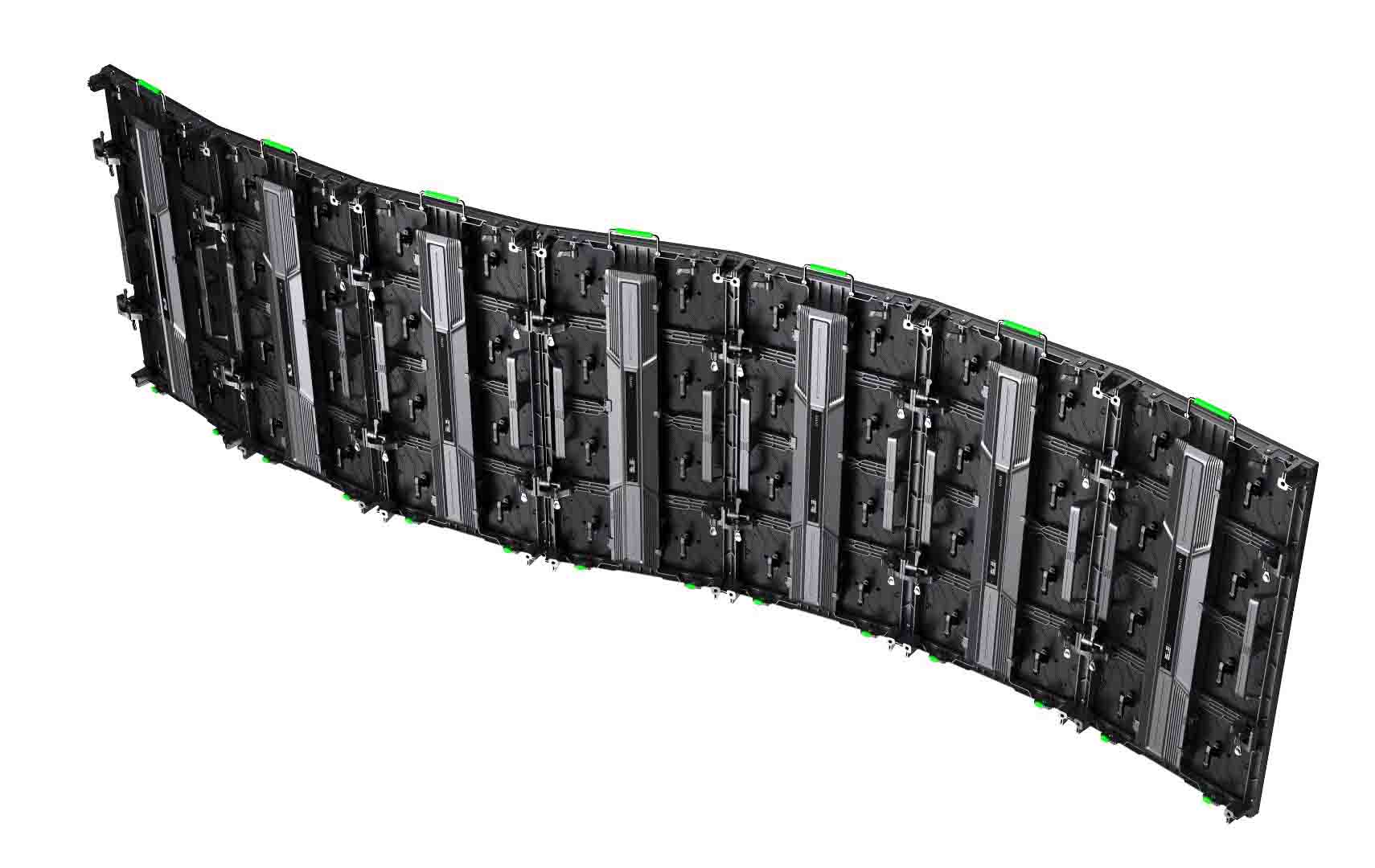

Curved use

Here is a curve fast lock to make the LED display shape curved, This can adjust the angle of the LED display from -15 to 15 or more other angles, it can be used in many indoor or outdoor places.

Parameter

Pixel Pitch P4.81
LED type SMD2121
Pixel configuration 3-in-1 SMD
Pixel density 43,264 pixels/m2
Module dimension(W*H) 250*250mm
Module resolution 52*52dots
Drive Method 1/13 scan
Maintenance back
Cabinet size (W*H) 500*500mm
Cabinet depth 92mm
Cabinet material  Aluminum
Cabinet weight 6kg/pcs
Brightness ≥1000 cd/m2
Best Viewing Distance 5m to 50m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ / 3840HZ
Power consumption(Avg.) 50w/cabinet
Power consumption(Max.) 150w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Sync or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP31
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD2121/1515 SMD2121 SMD2121 SMD2121
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250*250mm 250*250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/32 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance back back back back
Cabinet size (W*H) 500*500mm 500*500mm 500*500mm 500*500mm
Cabinet depth 92mm 92mm 92mm 92mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 6kg/pcs 6kg/pcs 6kg/pcs 6kg/pcs
Brightness ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ / 3840HZ ≥1920HZ / 3840HZ ≥1920HZ / 3840HZ ≥1920HZ / 3840HZ
Power consumption(Avg.) 60w/cabinet 55w/cabinet 50w/cabinet 50w/cabinet
Power consumption(Max.) 170w/cabinet 160w/cabinet 150w/cabinet 150w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async Sync or Async Sync or Async
Certificates CE, RoHS, FCC, UL  CE, RoHS, FCC, UL CE, RoHS, FCC, UL CE, RoHS, FCC, UL
Ingress Protection (IP) IP31 IP31 IP31 IP31
Warranty 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
What's the brand name of the Indoor Rental LED Display?

The brand name is SZLEDWORLD.

What's the model number of the Indoor Rental LED Display?

The model number is P4.81.

What is the minimum order quantity for the Indoor Rental LED Display?

The minimum order quantity for the Indoor Rental LED Display is 1sqm.
