P4.81 indoor rental led display RP1000 series

P4.81 Indoor Rental LED Display 500x1000mm is the most economical product in the indoor rental led display, it can save the cost, and also give you a good experience of the products. So when your budget is lessen, this can be a good choice, it can make you earn money in a short time. It with fast lock design, good rental hanging solution.

  • Cabinet: 500×1000 mm
  • Pixel pitch: 4.81mm
  • IP65 level grade
  • High reliability
  • With front and rear maintenance
  • High flatness,
  • Quick lock design

Feature

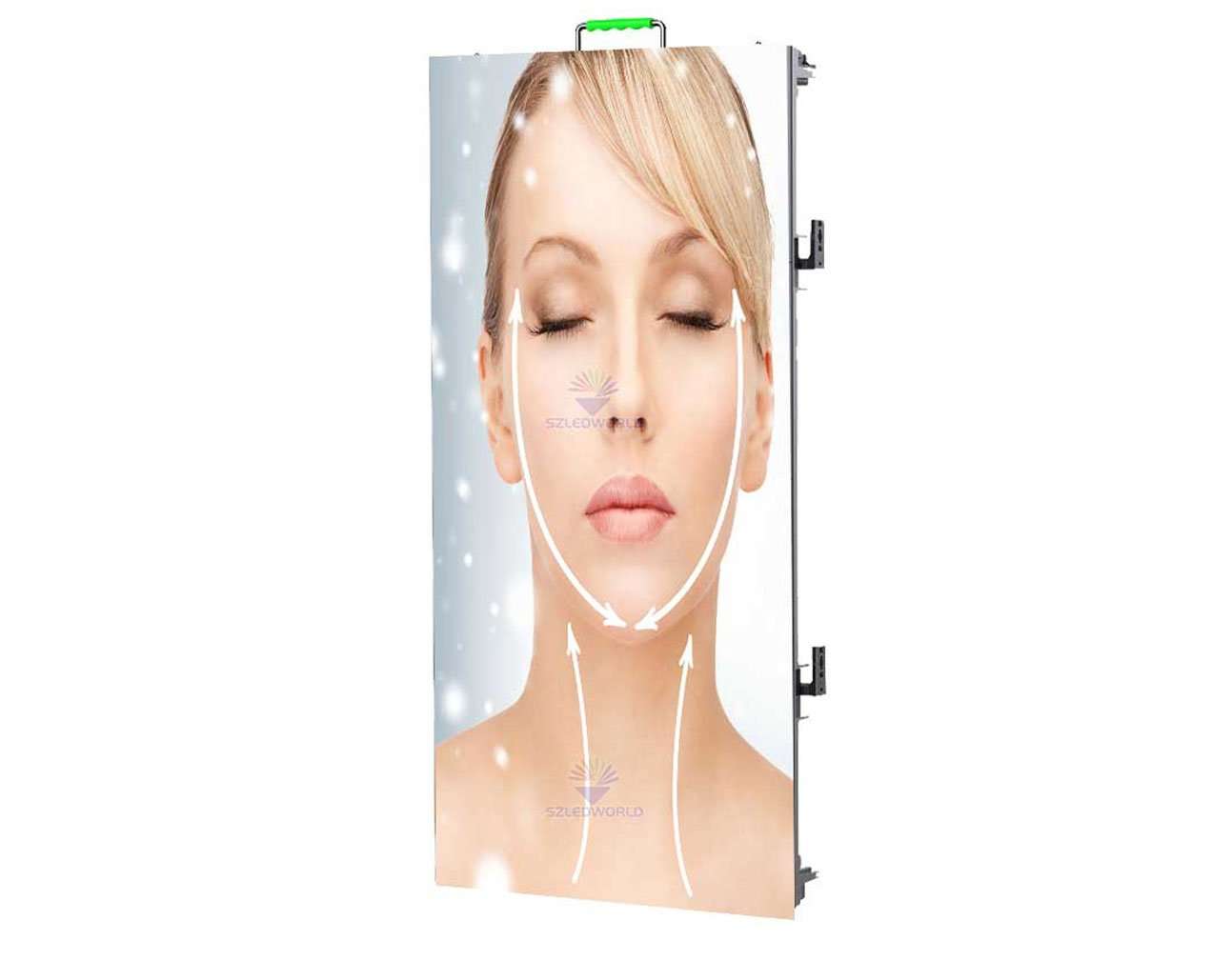

Seamless connect

The fast lock design can connect the cabinet well, there is no gap when you see the videos from the front, and wherever you see the LED screen, you can see the videos in clearly.

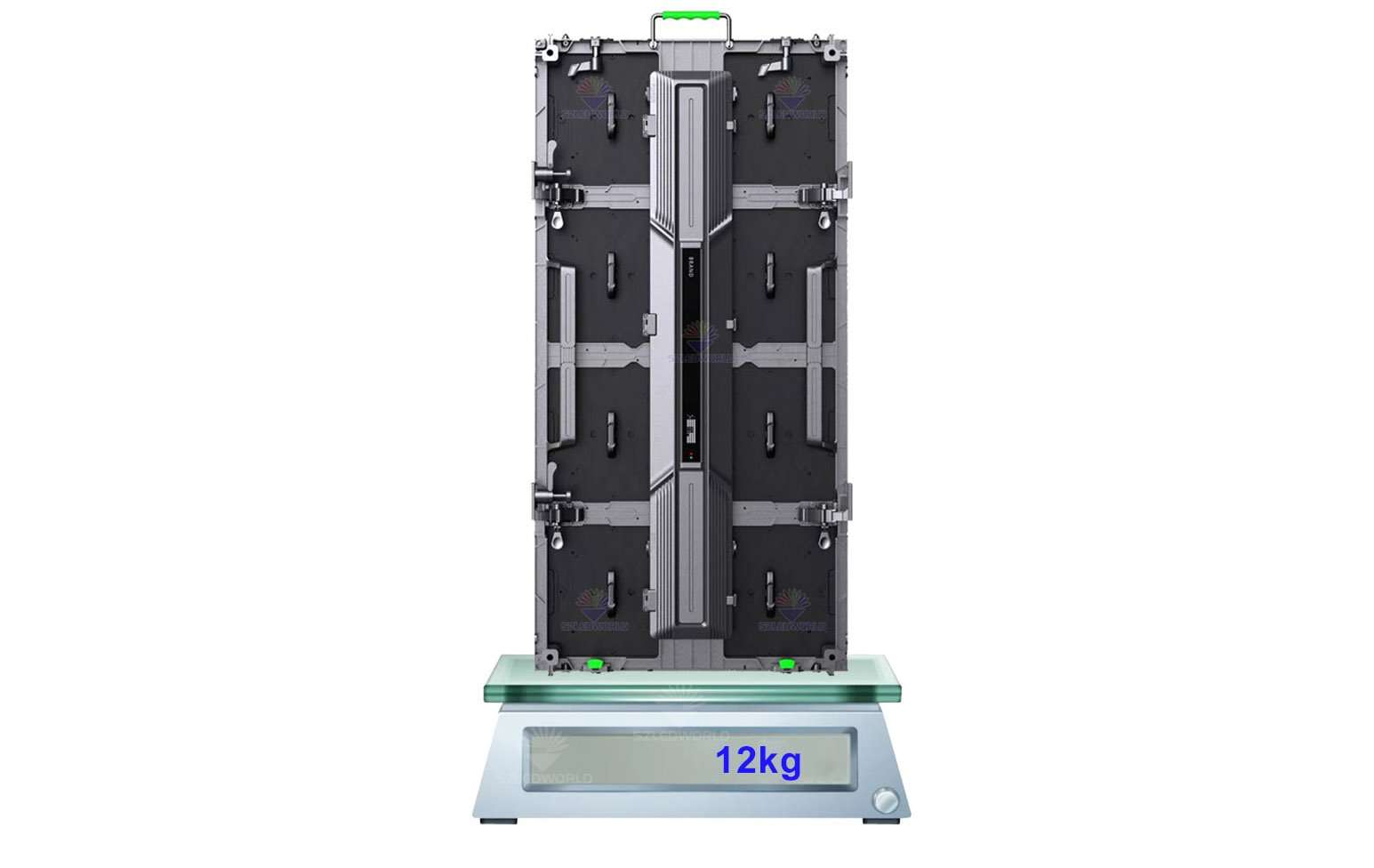

Light weight

The cabinet is only 12kg, more than 50% lighter weight than other standard products. It is easier to make stack-and-hang solutions. on the other hand, it is more convenient for transport, saving your labor cost for assembly and disassembly.

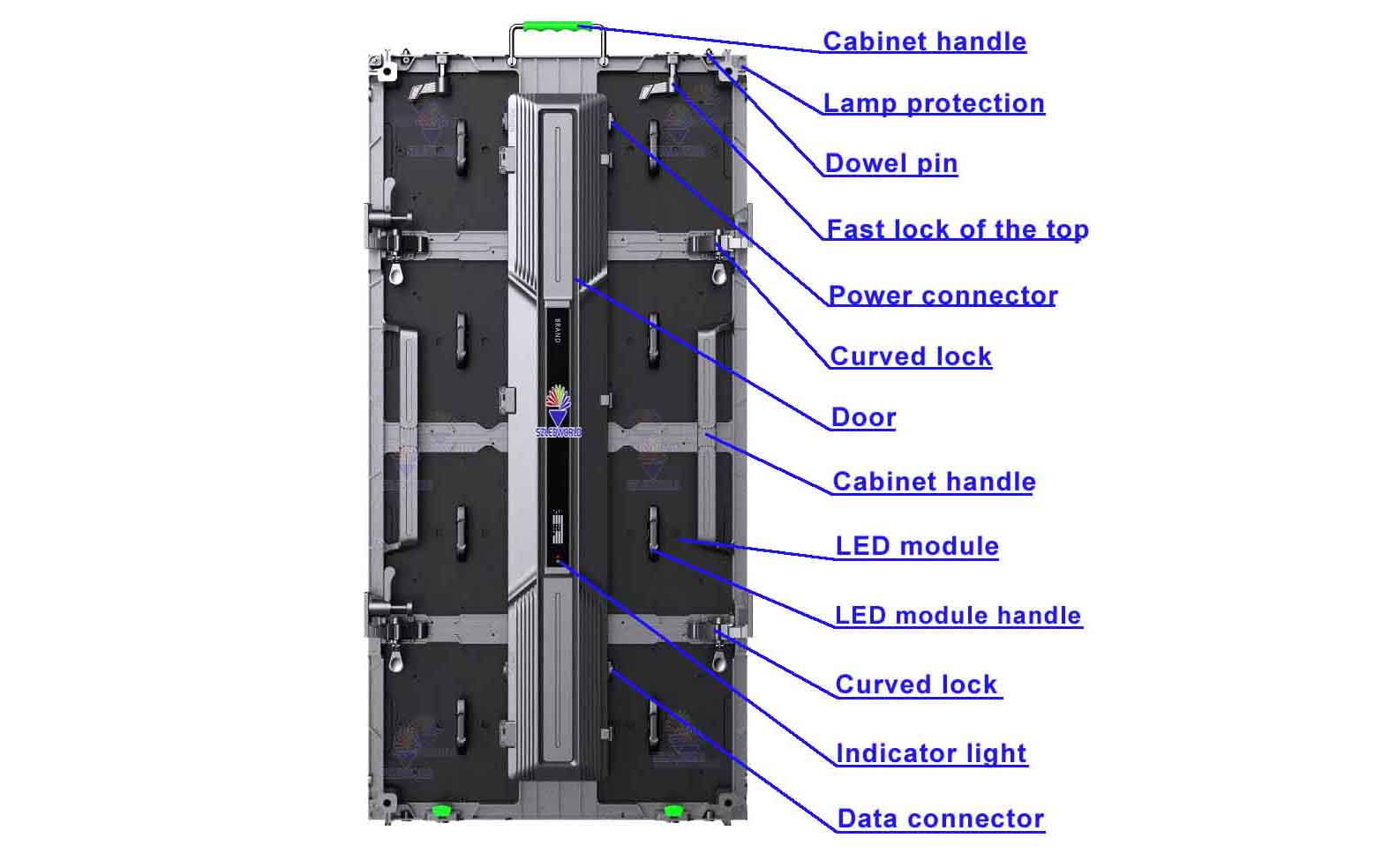

Accessories

The cabinets with clear accessories include a cabinet handle, lamp protection, dowel pin, fast lock of the top, power connector, curved lock, door, led modules handle, indicator light, and data connector.

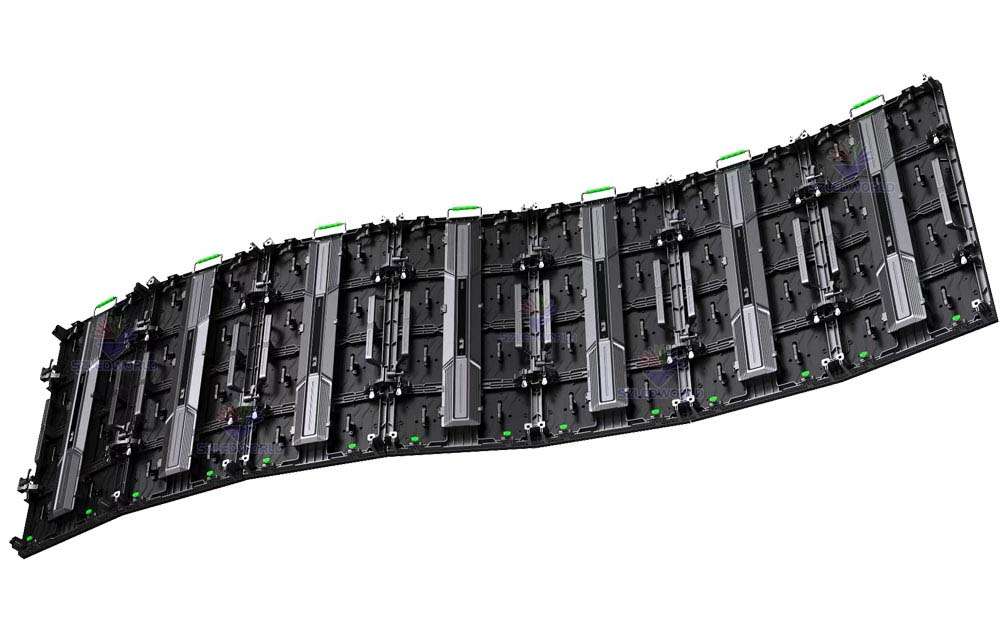

Curved connection

There is a curved lock on the side of the cabinets, which allows you to shape it in any shape, adding to the novelty of the P4.81 outdoor LED display.

Parameter

Pixel Pitch P4.81
LED type SMD2121
Pixel configuration 3-in-1 SMD
Pixel density 43,264 pixels/m2
Module dimension(W*H) 250*250mm
Module resolution 52*52dots
Drive Method 1/13 scan
Maintenance back
Cabinet size (W*H) 500*1000mm
Cabinet depth 92mm
Cabinet material  Aluminum
Cabinet weight 12kg/pcs
Brightness ≥1000 cd/m2
Best Viewing Distance 5m to 50m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ /3840HZ
Power consumption(Avg.) 100w/cabinet
Power consumption(Max.) 300w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Synch or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP31
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD2121/1515 SMD2121 SMD2121 SMD2121
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250*250mm 250*250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/32 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance back back back back
Cabinet size (W*H) 500*1000mm 500*1000mm 500*1000mm 500*1000mm
Cabinet depth 92mm 92mm 92mm 92mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 12kg/pcs 12kg/pcs 12kg/pcs 12kg/pcs
Brightness ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ
Power consumption(Avg.) 120w/cabinet 110w/cabinet 100w/cabinet 100w/cabinet
Power consumption(Max.) 340w/cabinet 330w/cabinet 300w/cabinet 300w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP31 IP31 IP31 IP31
Warranty 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
