P4 indoor rental led display LR640 series
P4 indoor rental LED display 640x640mm is a good choice for investing events when you do not have enough budget, this can display a vivid video and picture to your audience. It also with a lightweight advantage, when you mobile it, it can be a big convenience for you, saving you time and cost.
- Cabinet: 640×640 mm
- Pixel pitch: 4mm
- Physics Pixel Density: 62,500 pixels/m2
- Ultra-thin, easy to mobile and install
- Aluminum cabinets
- Large viewing angle
- High intensity
Feature
Good heat disspation
This cabinet with many advantages, especially for its good heat dissipation, it can make your machine keep a stable temperature, which will add to the using lifetime of the LED display.
Various color for choosing
Here are black, yellow, blue, and other customized color cabinets for your choosing, the bright colors can attract more and more audience attention.

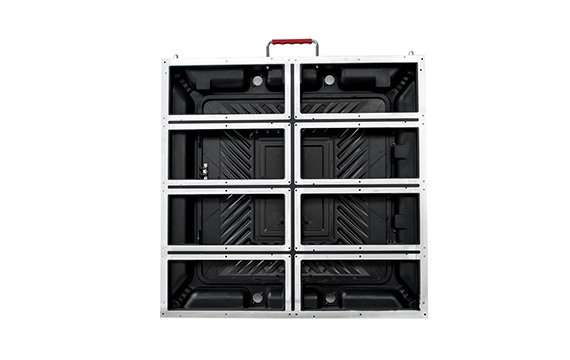

Die casting with die casting
The cabinet just includes 8pcs 320x160mm LED modules, also the material is die casting, which makes the weight of the cabinet light, it can save you time when you install and repair it, also it can save labor when transporting the goods.
Parameter
- P4 indoor rental led display 640x640mm Parameter
- LR640 series for other pixel pitch
| Pixel Pitch | P4 |
| Model | LRI 4 |
| LED type | SMD2121 |
| Pixel configuration | 3 in 1 SMD |
| Pixel density | 62,500 pixels/m2 |
| Module dimension(W*H) | 320*160mm |
| Module resolution | 80*40dots |
| Drive Method | 1/20 scan |
| Maintenance | back |
| Cabinet size (W*H) | 640*640mm |
| Cabinet resolution | 160*160 dots |
| Cabinet depth | 79mm |
| Cabinet material | Aluminum |
| Cabinet weight | 10.5 kg/pcs |
| SQM / cabinet | 0.41 sqm |
| Brightness | 900 cd/m2 |
| Color temperature | 6500deg. K |
| Best Viewing Distance | 4m to 40m |
| Viewing Angle | 140 * 140 |
| Grey Level | 14 Bit |
| Refresh Rate | ≥1920Hz or ≥3840Hz |
| Video frame rate | 60Hz |
| Power consumption(Avg.) | 100w/cabinet |
| Power consumption(Max.) | 300w/cabinet |
| Input voltage (nominal) | 110 or 220VAC |
| Humidity-operating | 10% ~ 95% |
| Operating Temperature | -20° – 50° C |
| Screen life | ≥100000 hours |
| Input interface | DVI, VGA, HDMI, DP, SDI etc. |
| Control system | Novastar, colorlight, linsn, HD etc. |
| Certificates | CE,RoHS,FCC,UL |
| Ingress Protection (IP) | Front IP65 |
| Warranty | 2 Years |
| Pixel Pitch | P4 | P5 |
| Model | LRI 4 | LRI 5 |
| LED type | SMD2121 | SMD2121 |
| Pixel configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel density | 62,500 pixels/m2 | 40,000 pixels/m2 |
| Module dimension(W*H) | 320*160mm | 320*160mm |
| Module resolution | 80*40dots | 64*32dots |
| Drive Method | 1/20 scan | 1/16 scan |
| Maintenance | back | back |
| Cabinet size (W*H) | 640*640mm | 640*640mm |
| Cabinet resolution | 160*160 dots | 128*128 dots |
| Cabinet depth | 79mm | 79mm |
| Cabinet material | Aluminum | Aluminum |
| Cabinet weight | 10.5 kg/pcs | 10.5 kg/pcs |
| SQM / cabinet | 0.41 sqm | 0.41 sqm |
| Brightness | 900 cd/m2 | 900 cd/m2 |
| Color temperature | 6500deg. K | 6500deg. K |
| Best Viewing Distance | 4m to 40m | 4m to 40m |
| Viewing Angle | 140 * 140 | 140 * 140 |
| Grey Level | 14 Bit | 14 Bit |
| Refresh Rate | ≥1920Hz or ≥3840Hz | ≥1920Hz or ≥3840Hz |
| Video frame rate | 60Hz | 60Hz |
| Power consumption(Avg.) | 100w/cabinet | 100w/cabinet |
| Power consumption(Max.) | 300w/cabinet | 300w/cabinet |
| Input voltage (nominal) | 110 or 220VAC | 110 or 220VAC |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% |
| Operating Temperature | -20° – 50° C | -20° – 50° C |
| Screen life | ≥100000 hours | ≥100000 hours |
| Input interface | DVI, VGA, HDMI, DP, SDI etc. | DVI, VGA, HDMI, DP, SDI etc. |
| Control system | Novastar, colorlight, linsn, HD etc. | Novastar, colorlight, linsn, HD etc. |
| Certificates | CE,RoHS,FCC,UL | CE,RoHS,FCC,UL |
| Ingress Protection (IP) | Front IP65 | Front IP65 |
| Warranty | 2 Years | 2 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | ||
