P3.91 indoor rental led display RK500 series

P3.91 Indoor Rental LED Display 500x500mm is a high-quality and reliable indoor LED video wall solution for indoor applications. It offers excellent images and vivid colors, making it suitable for a wide range of indoor applications. This panel with a resolution of 1920*1080, offering a bright 1000cd/㎡ of brightness. It can used in churches, meeting rooms, weddings, and so on.

  • Cabinet: 500×500 mm
  • Pixel pitch: 3.91mm
  • A high degree of protection
  • High durability and stability
  • Full front maintenance
  • Clear image, vivid video
  • The standard size can use many cabinets

Feature

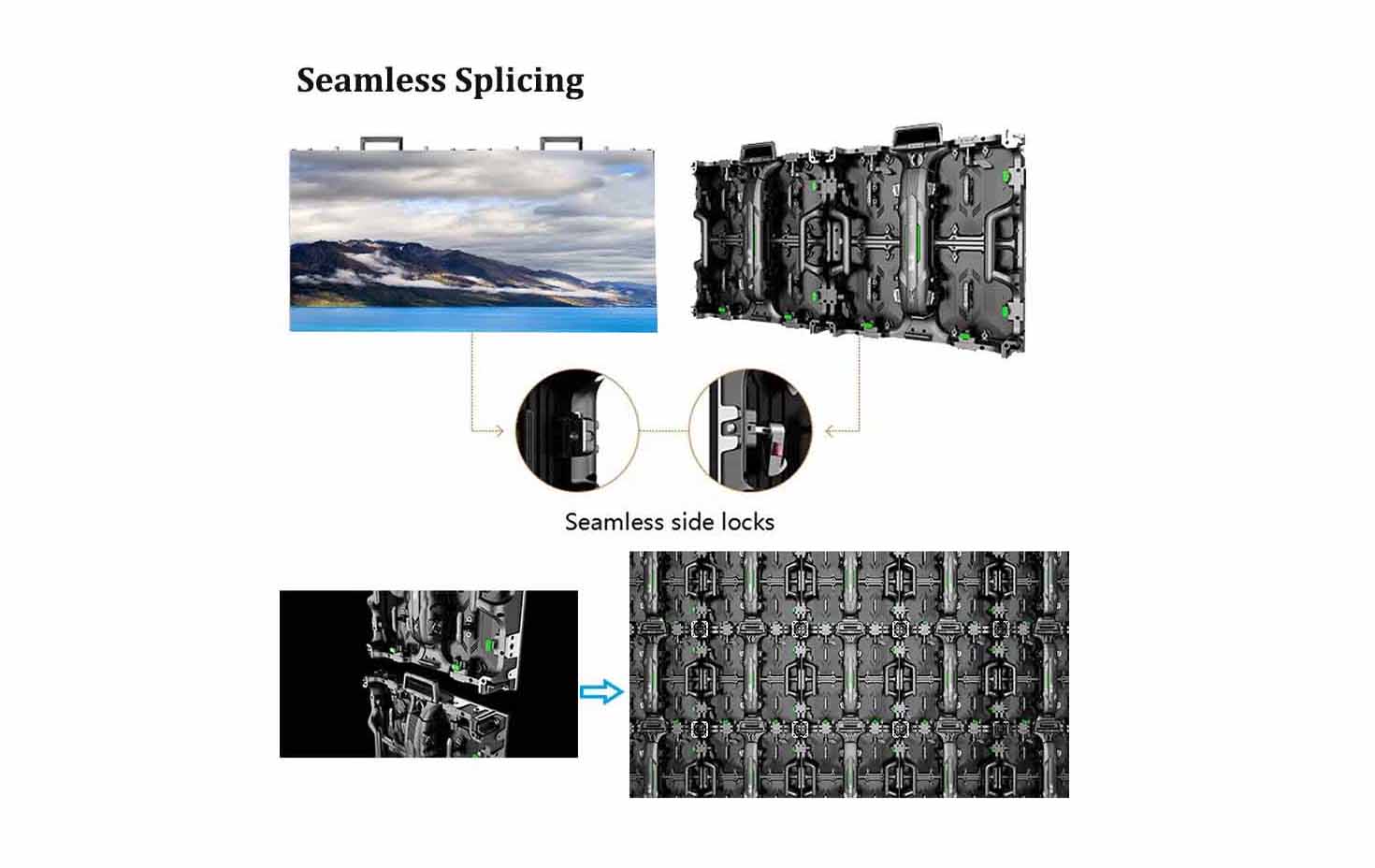

Seamless connection

The seamless side lock makes the cabinets connect better, it can show a good video to the audience. There will be a high degree of protection, and high durability, making you have a good user experience.

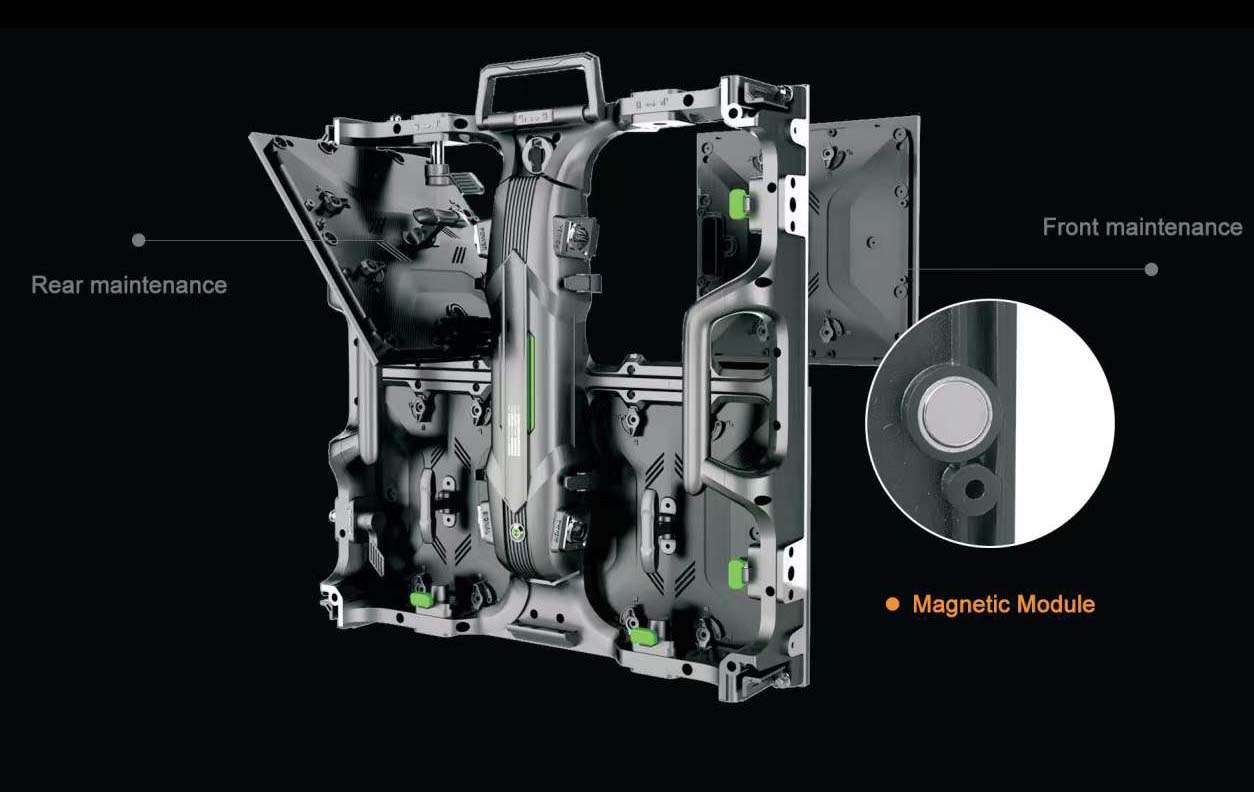

Rear and front service

This cabinet can be both rear and front service, making it faster and easier to install and disassemble, The die-casting cabinets with magnetic installation can be used at many places so it can improve work efficiency well.

Super light

Just 7.5kg/cabinet, one person can move it, saving time and labor. It can have a good performance when you use it in an event. It is Slim and light weight, with quick disassembly.

Parameter

Pixel Pitch P3.91
LED type SMD2121
Pixel configuration 3 in 1 SMD
Pixel density 65,536 pixels/m2
Module dimension(W*H) 250*250mm
Module resolution 64*64dots
Drive Method 1/16 scan
Maintenance Front and back
Cabinet size (W*H) 500*500mm
Cabinet depth 85mm
Cabinet material  Aluminum
Cabinet weight 7.7kg/pcs
Brightness ≥1000 cd/m2
Best Viewing Distance 4m to 40m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ
Power consumption(Avg.) 50w/cabinet
Power consumption(Max.) 150w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Synch or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP31
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD2121/1515 SMD2121 SMD2121 SMD2121
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250*250mm 250*250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/32 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance Front and back Front and back Front and back Front and back
Cabinet size (W*H) 500*500mm 500*500mm 500*500mm 500*500mm
Cabinet depth 85mm 85mm 85mm 85mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 7.7kg/pcs 7.7kg/pcs 7.7kg/pcs 7.7kg/pcs
Brightness ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2 ≥1000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Power consumption(Avg.) 60w/cabinet 55w/cabinet 50w/cabinet 50w/cabinet
Power consumption(Max.) 170w/cabinet 160w/cabinet 150w/cabinet 150w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP31 IP31 IP31 IP31
Warranty 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
