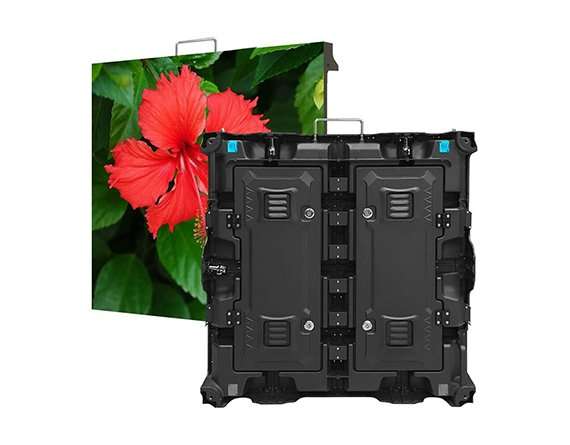

• P3 outdoor fixed 960x960mm cabinets front and back

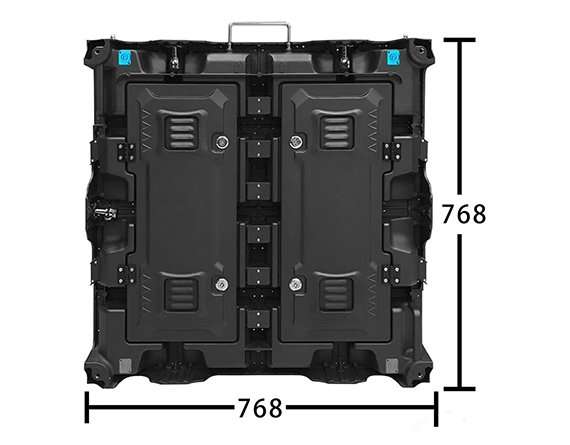

  • P3 outdoor fixed 960x960mm cabinets back

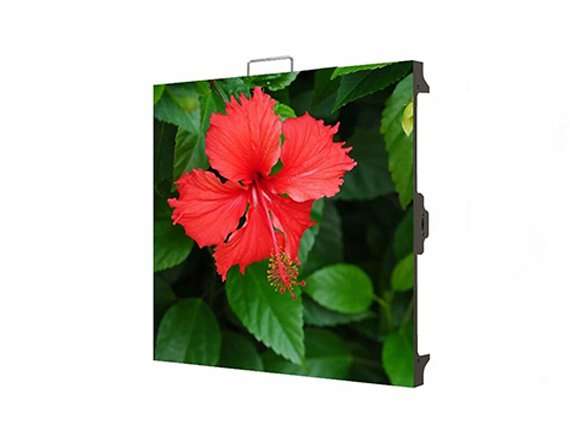

  • P3 outdoor fixed 960x960mm cabinets side
  • P3 outdoor fixed 960x960mm cabinets front and back
  • P3 outdoor fixed 960x960mm cabinets back
  • P3 outdoor fixed 960x960mm cabinets side

P3 Outdoor Fixed LED Display 768x768mm

P3 Outdoor Fixed LED Display 768x768mm is a good choice for you compared with other outdoor LED displays. The small pixel pitch decides the LED screen has a vivid effect. We can install a light sensor that allows you to control the brightness level according to your specific needs. Whether it’s a bright sunny day or a cloudy evening, your display will always be visible and eye-catching.

  • Cabinet: 768×768 mm
  • Pixel pitch: 3.0mm
  • Stainless screw
  • High brightness
  • Energy saving
  • Wide viewing angle
  • Input Voltage: AC220V/60HZ

Feature

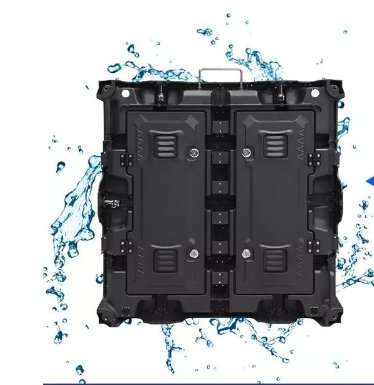

waterproof-768x768

IP65 Waterproof

  • IP65 waterproof, sealed waterproof cover;
  • The outlet connector is waterproof with a sealing ring;
  • Excellent dustproof performance;
  • Resistant to salt spray, it can be installed  near the seaside

Fast installtion

The cabinets have a fast lock, which can make the two cabinets joints together within 6 seconds, it makes the installation faster and more convenient.

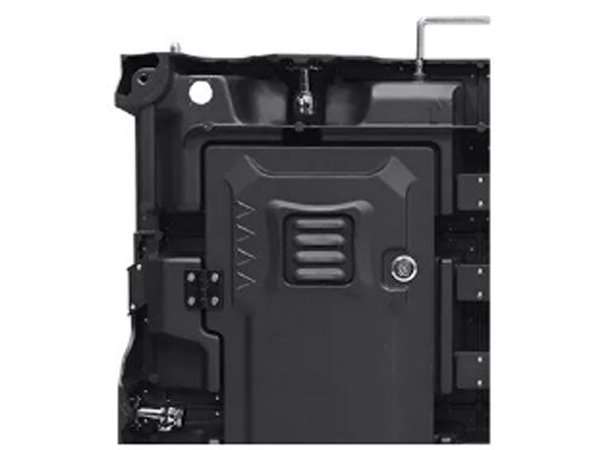

fastlock-768mm cabinet

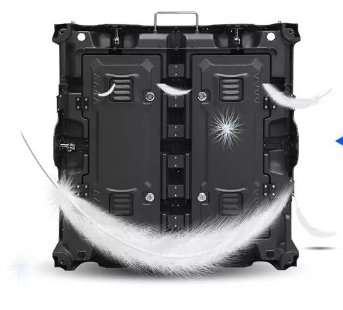

light-768mm cabinet

very light

Made of magnesium alloy or aluminum alloy, the cabinet weight is about 18kg/pcs.
You save manpower and costs during installation, handling, and product transportation, and improve your economic benefits.

Synchronous & asynchronous control system

The LED screen can be used in two systems: synchronous and asynchronous

Most of the time, when you use a synchronous system, we suggest that you use NOVA software, on the contrary, when you use an asynchronous system, we suggest that you use HD software, and you can choose one that suits you according to your needs.

Synchronous

Parameter

Pixel Pitch P3
LED type SMD1921
Pixel configuration 3-in-1 SMD
Pixel density 111,111 pixels/m2
Module dimension(W*H) 192*192mm
Module resolution 64*64dots
Drive Method 1/16 scan
Cabinet size (W*H) 768*768mm
Cabinet depth 102mm
Cabinet material magnesium alloy
Cabinet weight 18kg/pcs
Brightness ≥5500 cd/m2
Best Viewing Distance 3m to 30m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ
Power consumption(Avg.) 270 w/cabinet
Power consumption(Max.) 800 w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Sync or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP65
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P3 P6
LED type SMD1921 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD
Pixel density 111,111 pixels/m2 27,777 pixels/m2
Module dimension(W*H) 192*192mm 192*192mm
Module resolution 64*64dots 32*32dots
Drive Method 1/16 scan 1/8 scan
Cabinet size (W*H) 768*768mm 768*768mm
Cabinet depth 102mm 102mm
Cabinet material magnesium alloy magnesium alloy
Cabinet weight 18kg/pcs 18kg/pcs
Brightness ≥5500 cd/m2 ≥5000 cd/m2
Best Viewing Distance 3m to 30m 6m to 60m
Viewing Angle 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ
Power consumption(Avg.) 270 w/cabinet 200w/cabinet
Power consumption(Max.) 800 w/cabinet 600w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async
Certificates CE,RoHS,FCC, UL CE,RoHS,FCC, UL
Ingress Protection (IP) IP65 IP65
Warranty 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
