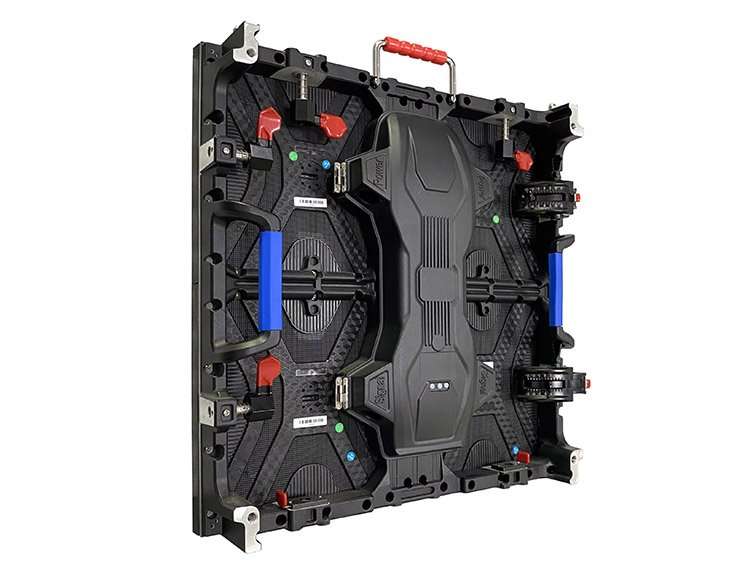

  • P2.9 outdoor rental led display 500x500mm side
  • P2.9 outdoor rental led display 500x500mm front
  • P2.9 outdoor rental led display 500x500mm
  • P2.9 outdoor rental led display 500x500mm back
  • P2.9 outdoor rental led display 500x500mm side
  • P2.9 outdoor rental led display 500x500mm front

P2.9 outdoor rental led display RL500 series

P2.9 Outdoor Rental LED Display 500x500mm is an updated product for small pixel pitches in the outdoor rental field. This is the clearest product compared to other outdoor rental products, This can offer you the most vivid and excellent videos, Due to it being a new technology, it has many advantages that most outdoor rental led screens do not have, so this is a best choose for you in outdoor rental field.

  • Cabinet: 500×500 mm
  • Pixel pitch: 2.976mm
  • Magnetic front service or back service with screw
  • Die-cast aluminum cabinet
  • Mute design
  • High precision
  • High-efficiency cooling

Feature

Multifunction

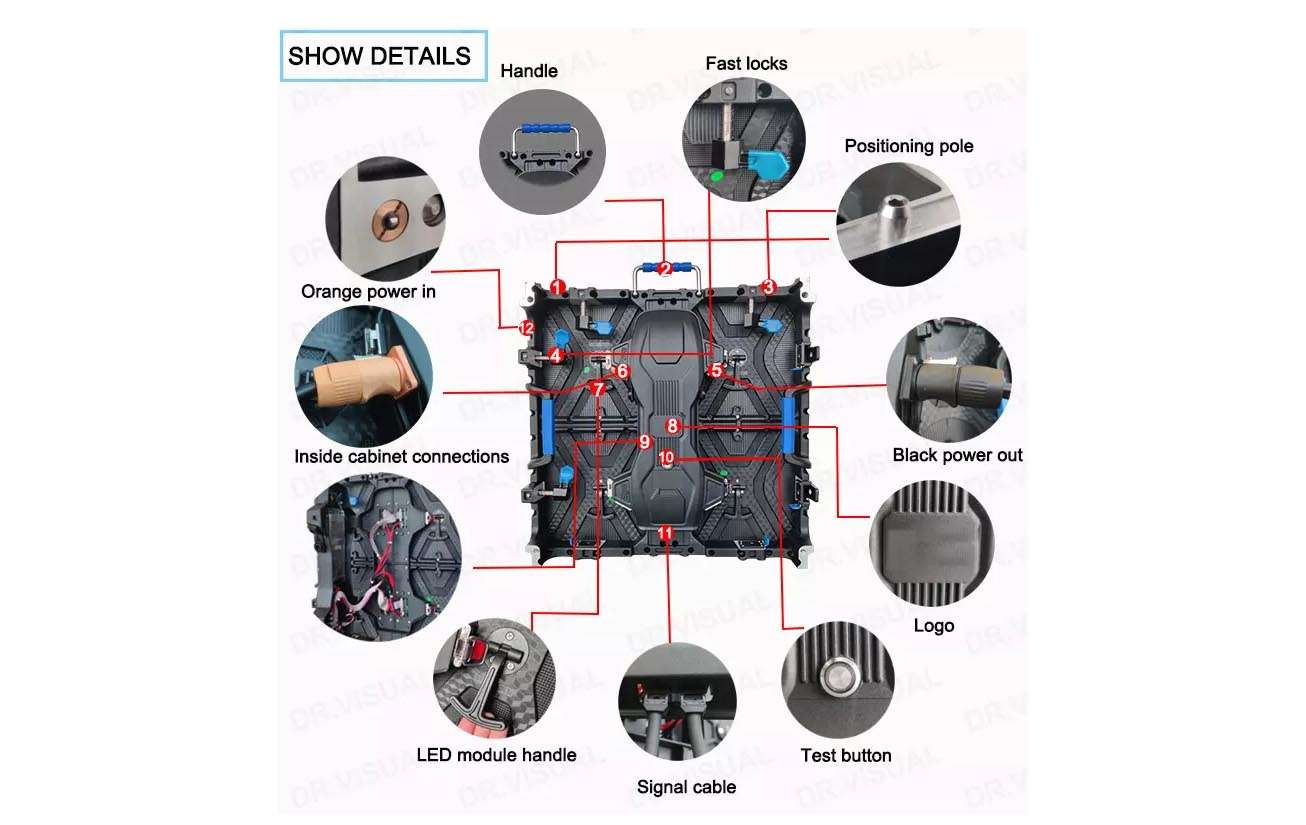

There are many humanization designs in this cabinet, which can be seen clearly in the picture, making it attract more persons sight.

Compatitable

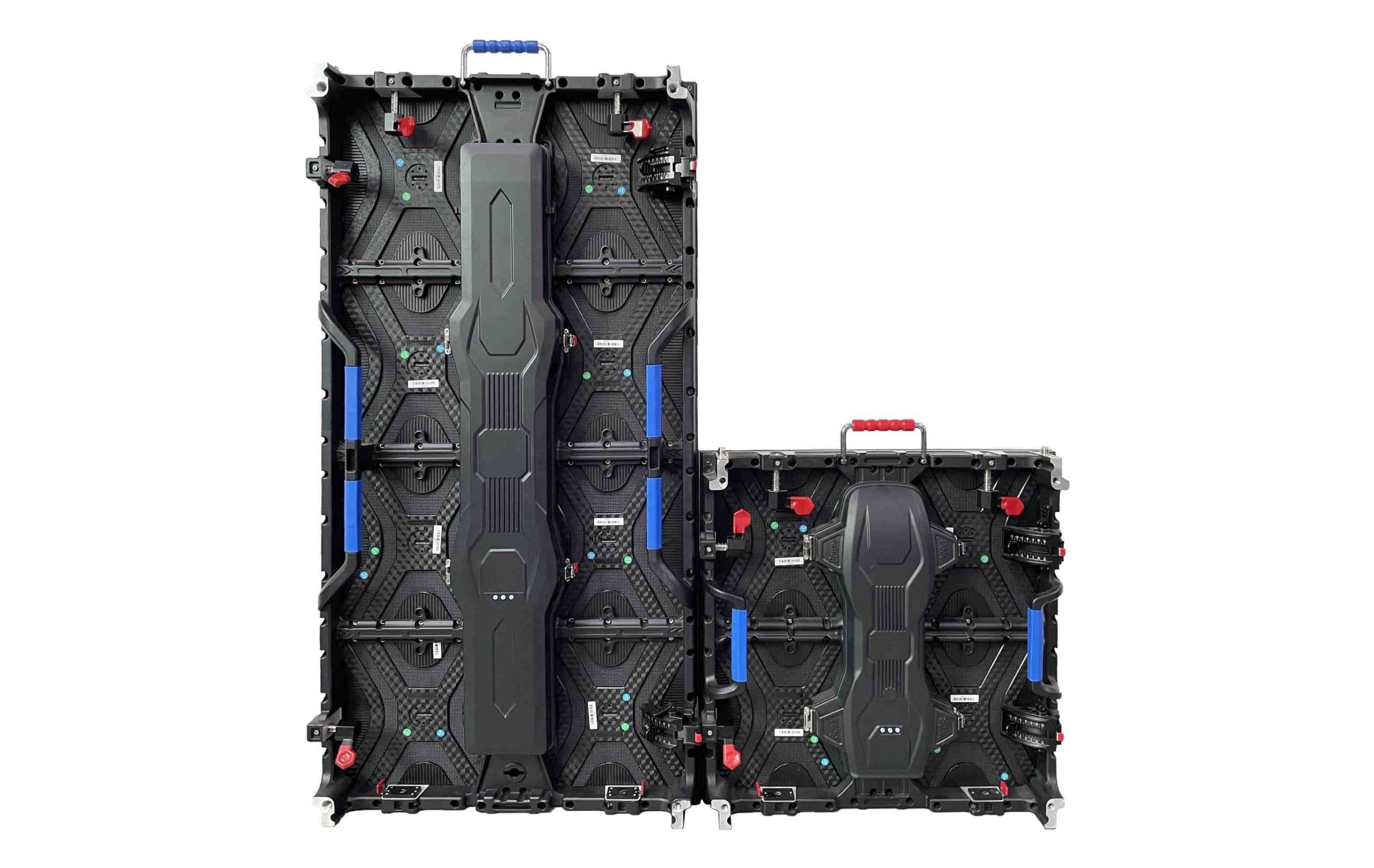

It is compatible with 500x1000mm cabinets

Seamless design

This is a perfect solution for a variety of installations at any event, from hanging to floor to stacking.  Multiple accessories are provided to help the fast and easy setup of displays across a versatile range of environments.



Multiple installation

Stacking installation: This can make your installation easier and faster during the events.

Lifting installation: The hanging bar can hang the cabinets from the truss. Due to the cabinet being lightweight, it is easy to make the physical pressure less

Parameter

Pixel Pitch P2.97
LED type SMD1415
Pixel configuration 3-in-1 SMD
Pixel density 112,896 pixels/m2
Module dimension(W*H) 250*250mm
Module resolution 84*84dots
Drive Method 1/21 scan
Maintenance back
Cabinet size (W*H) 500*500mm
Cabinet depth 88mm
Cabinet material  Aluminum
Cabinet weight 8kg/pcs
Brightness ≥4500 cd/m2
Best Viewing Distance 3m to 30m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet
Power consumption(Max.) 400w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Synch or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP65
Warranty 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD1415 SMD1415 SMD1921 SMD1921
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250mmx250mm 250mmx250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/24 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance back back back back
Cabinet size (W*H) 500*500mm 500*500mm 500*500mm 500*500mm
Cabinet depth 88mm 88mm 88mm 88mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 8kg/pcs 8kg/pcs 8kg/pcs 8kg/pcs
Brightness ≥4500 cd/m2 ≥4500 cd/m2 ≥4500 cd/m2 ≥4000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet 140w/cabinet 130w/cabinet 120w/cabinet
Power consumption(Max.) 400w/cabinet 400w/cabinet 390w/cabinet 390w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE, RoHS, FCC, UL CE, RoHS, FCC, UL CE,RoHS,FCC, UL CE,RoHS,FCC, UL
Ingress Protection (IP) IP65 IP65 IP65 IP65
Warranty 3 Years 3 Years 3 Years 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
