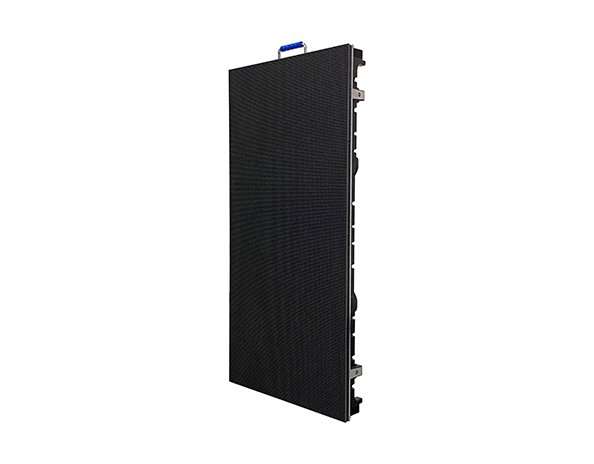

P2.9 outdoor rental led display RL1000 series
P2.9 Outdoor Rental LED Display 500x1000mm is one of the most popular products on the rental market. The small pixel pitch decided it could show vivid and clear pictures and videos to the audience. It has 4000-4500nit high brightness and 3840Hz high refresh rate, so it can see clearly even on a sunny day. Also, it can fit changeable weather.
- Cabinet: 500×1000 mm
- Pixel pitch: 2.976mm
- Easy to repair and install
- Anti-collision
- Magnetic LED Module
- IP65 waterproof
- Ultra-thin
Feature
Easy to replace LED modules
The power supply and receiving card are installed on the door of the cabinets without blocking the screw holes of the LED module, so it is more convenient and faster when the LED module needs to be replaced.
Curved splicing
There are 2 pairs of arc-shaped locks on both sides of the cabinet, and the operation of the curved locks is smooth and flexible. It is easy to splice the cabinet into inner or outer arc shapes, making your P2.976 indoor LED display more colorful and eye-catching.
Compatible with splicing
The 500x500mm cabinet and the 500x1000mm cabinet can be spliced together and shaped into each other. While using the advantageous price of 500x1000mm cabinets, a certain number of 500x500mm cabinets are mixed to meet the size requirements of LED displays with different heights in units of 500mm.
Parameter
- P2.9 outdoor rental LED display 500x1000mm parameter
- RL1000 series for other pixel pitch
| Pixel Pitch | P2.97 |
| LED type | SMD1415 |
| Pixel configuration | 3-in-1 SMD |
| Pixel density | 112,896 pixels/m2 |
| Module dimension(W*H) | 250*250mm |
| Module resolution | 84*84dots |
| Drive Method | 1/21 scan |
| Maintenance | back |
| Cabinet size (W*H) | 500*1000mm |
| Cabinet depth | 88mm |
| Cabinet material | Aluminum |
| Cabinet weight | 13kg/pcs |
| Brightness | ≥4500 cd/m2 |
| Best Viewing Distance | 3m to 30m |
| Viewing Angle | 140 * 140 |
| Grey Level | 14 Bit |
| Refresh Rate | ≥1920HZ /3840HZ |
| Power consumption(Avg.) | 140w/cabinet |
| Power consumption(Max.) | 400w/cabinet |
| Humidity-operating | 10% ~ 95% |
| Operating Temperature | -20° – 50° C |
| Screen life | ≥100000 hours |
| Controlling System | Synch or Async |
| Certificates | CE, RoHS, FCC, UL |
| Ingress Protection (IP) | IP65 |
| Warranty | 3 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |
| Pixel Pitch | P2.604 | P2.97 | P3.91 | P4.81 |
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 3-in-1 SMD | 3-in-1 SMD | 3 in 1 SMD | 3-in-1 SMD |
| Pixel density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module dimension(W*H) | 250*250mm | 250*250mm | 250mmx250mm | 250mmx250mm |
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Drive Method | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Maintenance | back | back | back | back |
| Cabinet size (W*H) | 500*1000mm | 500*1000mm | 500*1000mm | 500*1000mm |
| Cabinet depth | 88mm | 88mm | 88mm | 88mm |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 13kg/pcs | 13kg/pcs | 13kg/pcs | 13kg/pcs |
| Brightness | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4000 cd/m2 |
| Best Viewing Distance | 2.5m to 25m | 3m to 30m | 4m to 40m | 5m to 50m |
| Viewing Angle | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 |
| Grey Level | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
| Refresh Rate | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ |
| Power consumption(Avg.) | 140w/cabinet | 140w/cabinet | 130w/cabinet | 120w/cabinet |
| Power consumption(Max.) | 400w/cabinet | 400w/cabinet | 390w/cabinet | 390w/cabinet |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% |
| Operating Temperature | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C |
| Screen life | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Controlling System | Synch or Async | Synch or Async | Synch or Async | Synch or Async |
| Certificates | CE, RoHS, FCC, UL | CE, RoHS, FCC, UL | CE, RoHS, FCC, UL | CE, RoHS, FCC, UL |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | ||||
