P2.9 indoor rental led display RF500 series

P2.9 Indoor Rental LED Display 500x500mm with die-casting aluminum cabinet, It is light and easy to install with many methods, It has high definition and grayscale, so this means that it is durable and stable, can be used for a long time, the consumption is lower, so this is also a cost-effectively products. It is most used in indoor conferences or other events.

Cabinet: 500×500 mm
Pixel pitch: 2.976mm
3840HZ refresh rate
Die-cast aluminum cabinet
Back service and front service both
Heat dissipation design
Durable can stable

PRODUCT DETAILS

Send Your Inquiry

Feature
Parameter
Download
Video
Related products
FAQs
Top

Feature

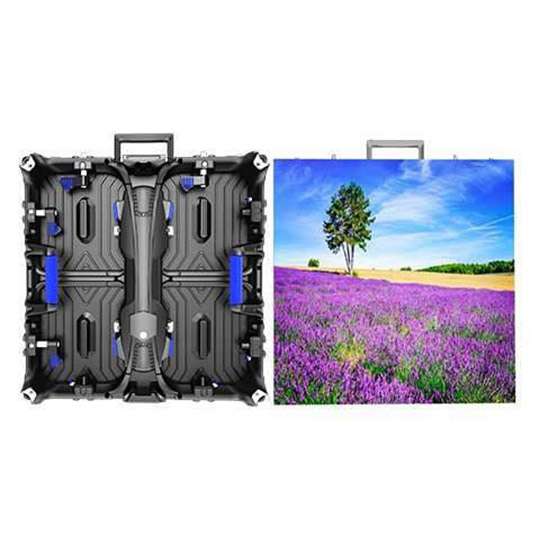

P2.976 indoor rental led display 500x500mm

Easy to repair and install

The cabinet is designed delicately, with no extra lines and cables, which it makes more convenient when you are repairing and installing, the power supply and receiving card in one box, You can find the problems clearly when the machine has some malfunctions.

Seamless design

When you install the cabinets, there is no gap between the two or more cabinets, which makes the LED screen look more grand if your screen area is big, When you make the advertising on this screen, this can display a good performance.

Parameter

P2.9 indoor rental LED display 500x500mm parameter
RF500 series for other pixel pitch

Pixel Pitch	P2.97
LED type	SMD1415
Pixel configuration	3-in-1 SMD
Pixel density	112,896 pixels/m2
Module dimension(W*H)	250*250mm
Module resolution	84*84dots
Drive Method	1/21 scan
Maintenance	Front and back
Cabinet size (W*H)	500*500mm
Cabinet depth	75mm
Cabinet material	Aluminum
Cabinet weight	8kg/pcs
Brightness	≥4000 cd/m2
Best Viewing Distance	3m to 30m
Viewing Angle	140 * 140
Grey Level	14 Bit
Refresh Rate	≥1920HZ / 3840HZ
Power consumption(Avg.)	70w/cabinet
Power consumption(Max.)	200w/cabinet
Humidity-operating	10% ~ 95%
Operating Temperature	-20° – 50° C
Screen life	≥100000 hours
Controlling System	Sync or Async
Certificates	CE, RoHS, FCC, UL
Ingress Protection (IP)	IP65
Warranty	3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD.

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED type	SMD1415	SMD1415	SMD1921	SMD1921
Pixel configuration	3-in-1 SMD	3-in-1 SMD	3 in 1 SMD	3-in-1 SMD
Pixel density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module dimension(W*H)	250*250mm	250*250mm	250mmx250mm	250mmx250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Drive Method	1/24 scan	1/21 scan	1/16 scan	1/13 scan
Maintenance	Front and back	Front and back	Front and back	Front and back
Cabinet size (W*H)	500*500mm	500*500mm	500x500mm	500x500mm
Cabinet depth	75mm	75mm	75mm	75mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet weight	8kg/pcs	8kg/pcs	8kg/pcs	8kg/pcs
Brightness	≥4500 cd/m2	≥4000 cd/m2	≥4000 cd/m2	≥4000 cd/m2
Best Viewing Distance	2.5m to 25m	3m to 30m	4m to 40m	5m to 50m
Viewing Angle	140 * 140	140 * 140	140 * 140	140 * 140
Grey Level	14 Bit	14 Bit	14 Bit	14 Bit
Refresh Rate	≥1920HZ /3840HZ	≥1920HZ / 3840HZ	≥1920HZ / 3840HZ	≥1920HZ / 3840HZ
Power consumption(Avg.)	140w/cabinet	70w/cabinet	65w/cabinet	60w/cabinet
Power consumption(Max.)	200w/cabinet	200w/cabinet	195w/cabinet	190w/cabinet
Humidity-operating	10% ~ 95%	10% ~ 95%	10% ~ 95%	10% ~ 95%
Operating Temperature	-20° – 50° C	-20° – 50° C	-20° – 50° C	-20° – 50° C
Screen life	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Controlling System	Synch or Async	Sync or Async	Sync or Async	Sync or Async
Certificates	CE, RoHS, FCC, UL	CE, RoHS, FCC, UL	CE, RoHS, FCC, UL	CE, RoHS, FCC, UL
Ingress Protection (IP)	IP65	IP65	IP65	IP65
Warranty	3 Years	3 Years	3 Years	3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD.
