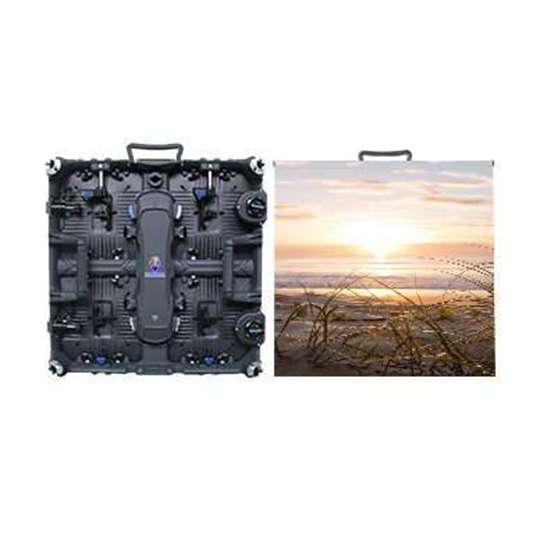

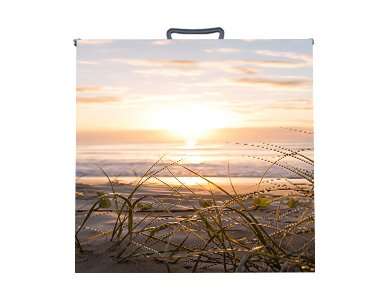

P2.6 outdoor rental led display RG500 series
P2.6 Outdoor Rental LED Display 500x500mm become more and more popular in the recent market even though this is an updated product in the outdoor rental field, it has high definition, and high brightness features, and the lightweight cabinet makes it easier to suspend on truss with hang bars, also you can use it for fixed use, in a word, it is a good choice for you to enter an advertising market.
- Cabinet: 500×500 mm
- Pixel pitch: 2.604mm
- Good performance in dissipating heat
- Ultra-wide view
- SMD three-in-one technology
- Low power consumption
- High grey scale
Feature
Portable power box
The power box at the back of the cabinet is easy to assemble and install, You can pull it out without tools, so it can save your time, and save the cost of labor.

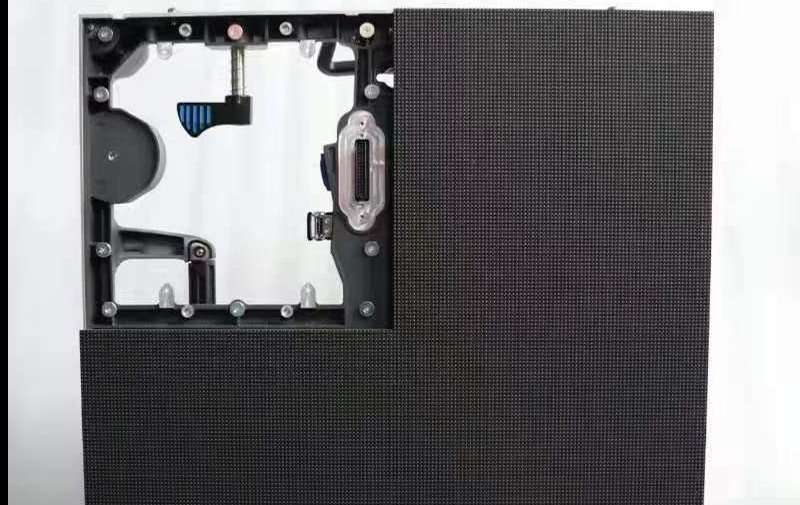

Magnetic front service
The cabinet can be maintained from the front side. The magnetic front service feature makes the LED display very convenient to assemble and disassemble, The module is magnetic and is easy to take out in a few seconds, saving much time and labor.
Adjust the angle of the curve cabinet
It can have a good adjustment for the angle of the cabinets, making the concave and convex installation have many angles
Parameter
- P2.6 outdoor rental LED display 500x500mm parameter
- RG500 series for other pixel pitch
| Pixel Pitch | P2.604 |
| LED type | SMD1415 |
| Pixel configuration | 3-in-1 SMD |
| Pixel density | 147,456 pixels/m2 |
| Module dimension(W*H) | 250*250mm |
| Module resolution | 96*96dots |
| Drive Method | 1/24 scan |
| Maintenance | Front and back |
| Cabinet size (W*H) | 500*500mm |
| Cabinet depth | 88mm |
| Cabinet material | Aluminum |
| Cabinet weight | 7.5kg/pcs |
| Brightness | ≥4500 cd/m2 |
| Best Viewing Distance | 2.5m to 25m |
| Viewing Angle | 140 * 140 |
| Grey Level | 14 Bit |
| Refresh Rate | ≥1920HZ /3840HZ |
| Power consumption(Avg.) | 140w/cabinet |
| Power consumption(Max.) | 400w/cabinet |
| Humidity-operating | 10% ~ 95% |
| Operating Temperature | -20° – 50° C |
| Screen life | ≥100000 hours |
| Controlling System | Synch or Async |
| Certificates | CE, RoHS, FCC, UL |
| Ingress Protection (IP) | IP65 |
| Warranty | 3 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |
| Pixel Pitch | P2.604 | P2.97 | P3.91 | P4.81 |
| LED type | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Pixel configuration | 3-in-1 SMD | 3-in-1 SMD | 3 in 1 SMD | 3-in-1 SMD |
| Pixel density | 147,456 pixels/m2 | 112,896 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module dimension(W*H) | 250*250mm | 250*250mm | 250mmx250mm | 250mmx250mm |
| Module resolution | 96*96dots | 84*84dots | 64*64dots | 52*52dots |
| Drive Method | 1/24 scan | 1/21 scan | 1/16 scan | 1/13 scan |
| Maintenance | Front and back | Front and back | Front and back | Front and back |
| Cabinet size (W*H) | 500*500mm | 500*500mm | 500*500mm | 500*500mm |
| Cabinet depth | 88mm | 88mm | 88mm | 88mm |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet weight | 7.5kg/pcs | 7.5kg/pcs | 7.5kg/pcs | 7.5kg/pcs |
| Brightness | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4500 cd/m2 | ≥4000 cd/m2 |
| Best Viewing Distance | 2.5m to 25m | 3m to 30m | 4m to 40m | 5m to 50m |
| Viewing Angle | 140 * 140 | 140 * 140 | 140 * 140 | 140 * 140 |
| Grey Level | 14 Bit | 14 Bit | 14 Bit | 14 Bit |
| Refresh Rate | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ | ≥1920HZ /3840HZ |
| Power consumption(Avg.) | 140w/cabinet | 140w/cabinet | 130w/cabinet | 120w/cabinet |
| Power consumption(Max.) | 400w/cabinet | 400w/cabinet | 390w/cabinet | 390w/cabinet |
| Humidity-operating | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% | 10% ~ 95% |
| Operating Temperature | -20° – 50° C | -20° – 50° C | -20° – 50° C | -20° – 50° C |
| Screen life | ≥100000 hours | ≥100000 hours | ≥100000 hours | ≥100000 hours |
| Controlling System | Synch or Async | Synch or Async | Synch or Async | Synch or Async |
| Certificates | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL | CE,RoHs,FCC,UL |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | ||||
