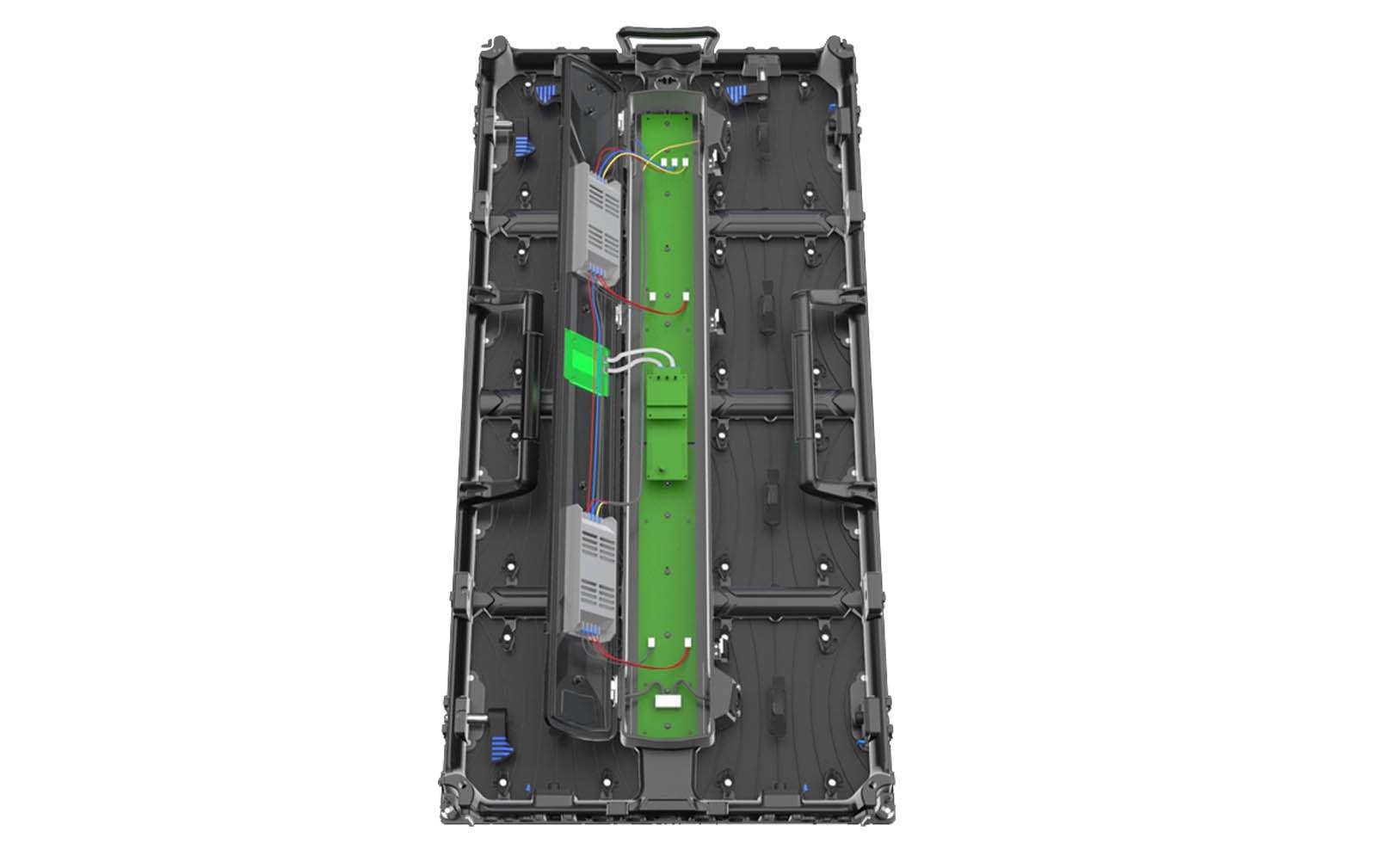

  • P2.6 outdoor rental led display 500x1000mm back
  • P2.6 outdoor rental led display 500x1000mm front
  • P2.6 outdoor rental led display 500x1000mm side
  • P2.6 outdoor rental led display 500x1000mm
  • P2.6 outdoor rental led display 500x1000mm back
  • P2.6 outdoor rental led display 500x1000mm front
  • P2.6 outdoor rental led display 500x1000mm side

P2.6 outdoor rental led display RG1000 series

P2.6 Outdoor Rental LED Display 500x1000mm is a precise and elegant cabinet, It also with a humanization handle which makes you move the cabinet easier. It can be used in events, shows, exhibitions, etc.

  • Cabinet: 500×1000 mm
  • Pixel pitch: 2.604mm
  • Seamless connection
  • multiple installations
  • stable working
  • Easy concave and convex for curve
  • Fast cooling

Feature

Front magnetic service

The front magnetic service makes it more convenient when you are repairing, you just use the front service tool to pull out the modules, which can save most of your time.

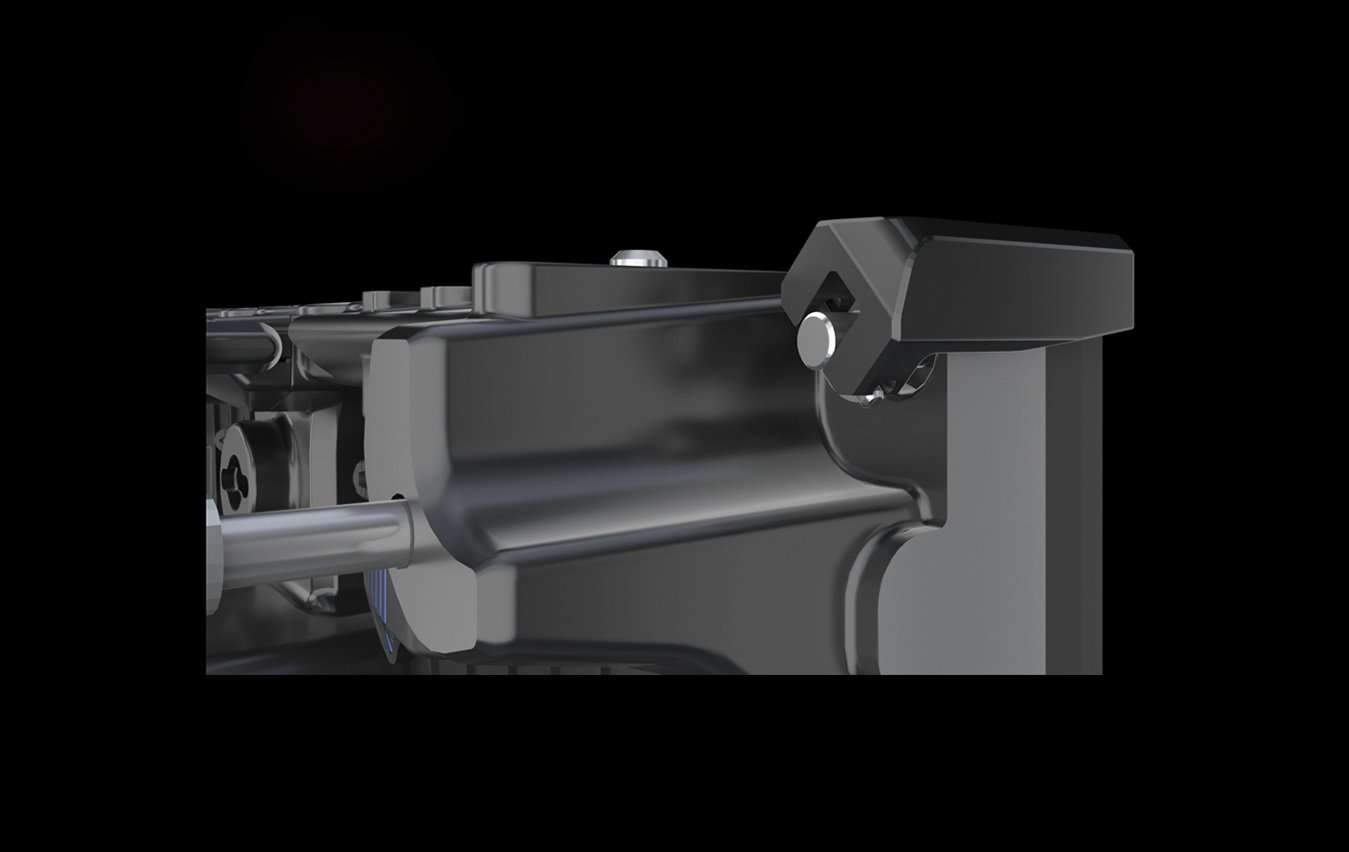

Protective corner

The protective corner design can have good protection for modules when shipping and disloading, even though when you are installing and disassembling, it can lessen the machine damage.

Update receiving card

The updated receiving card MRV280 is more stable than the old one, it can make the machine used long time, and more stable and durable, which gives you a better experience when you are operating the LED screen.

Wider power box

The wider box can install two bigger power supplies in the cabinet, which can save the cost, also there is an indicating light, when the machine has some problems, you just see the light and you can find the issues soon, so it is convenient.

Parameter

Pixel Pitch P2.604
LED type SMD1415
Pixel configuration 3-in-1 SMD
Pixel density 147,456 pixels/m2
Module dimension(W*H) 250*250mm
Module resolution 96*96dots
Drive Method 1/24 scan
Maintenance Front and back
Cabinet size (W*H) 500*1000mm
Cabinet depth 88mm
Cabinet material  Aluminum
Cabinet weight 15kg/pcs
Brightness ≥4500 cd/m2
Best Viewing Distance 2.5m to 25m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet
Power consumption(Max.) 400w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Synch or Async
Certificates CE, RoHS, FCC, UL
Ingress Protection (IP) IP65
Warranty 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.604 P2.97 P3.91 P4.81
LED type SMD1415 SMD1415 SMD1921 SMD1921
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3 in 1 SMD 3-in-1 SMD
Pixel density 147,456 pixels/m2 112,896 pixels/m2 65,536 pixels/m2 43,264 pixels/m2
Module dimension(W*H) 250*250mm 250*250mm 250mmx250mm 250mmx250mm
Module resolution 96*96dots 84*84dots 64*64dots 52*52dots
Drive Method 1/24 scan 1/21 scan 1/16 scan 1/13 scan
Maintenance Front and back Front and back Front and back Front and back
Cabinet size (W*H) 500*1000mm 500*1000mm 500*1000mm 500*1000mm
Cabinet depth 88mm 88mm 88mm 88mm
Cabinet material  Aluminum  Aluminum  Aluminum  Aluminum
Cabinet weight 15kg/pcs 15kg/pcs 15kg/pcs 15kg/pcs
Brightness ≥4500 cd/m2 ≥4500 cd/m2 ≥4500 cd/m2 ≥4000 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 4m to 40m 5m to 50m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ ≥1920HZ /3840HZ
Power consumption(Avg.) 140w/cabinet 140w/cabinet 130w/cabinet 120w/cabinet
Power consumption(Max.) 400w/cabinet 400w/cabinet 390w/cabinet 390w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65
Warranty 3 Years 3 Years 3 Years 3 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
