P2.6 Indoor rental led display RA500 series

P2.6 Indoor Rental LED Display 500x500mm with high definition, which is a good choice for events. The high resolution is fit to make the advertisement and bring you a profit, so this is also a good choice for investing. It is used in celebrations, weddings, concerts, theaters, nightclubs, conference halls, and so on.

Cabinet: 500×500 mm
Pixel pitch: 2.976
Super light
High strength
High precision
Cost-effective
Easy to install

PRODUCT DETAILS

Send Your Inquiry

Feature
Parameter
Download
Video
Related products
Top

Feature

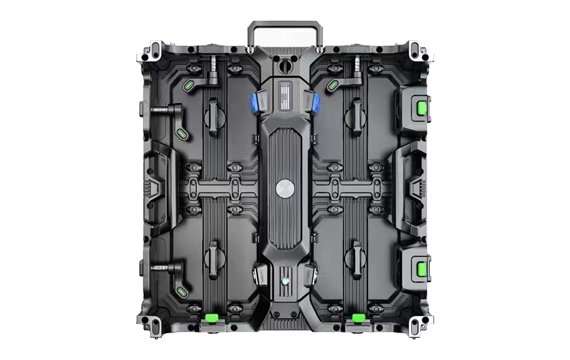

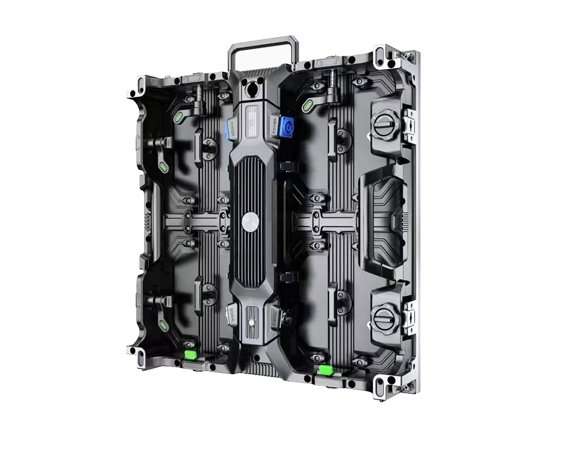

P2.6 500x500mm indoor rental led display

Light weight

The cabinet size is just 500x500mm with die-casting, so the weight is light just 7kg, This is a good choice for renting, you can move it at any time, even though there is no flight case, the delicate appearance also can attract the people’s sight.

Hard Connection without wires

These include the control box, power supply, sending card, and HUB board, there without wires connection, the cable can be more stable and durable, and the HUB board connects modules and power supplies directly instead of using wires, making the appearance look well.

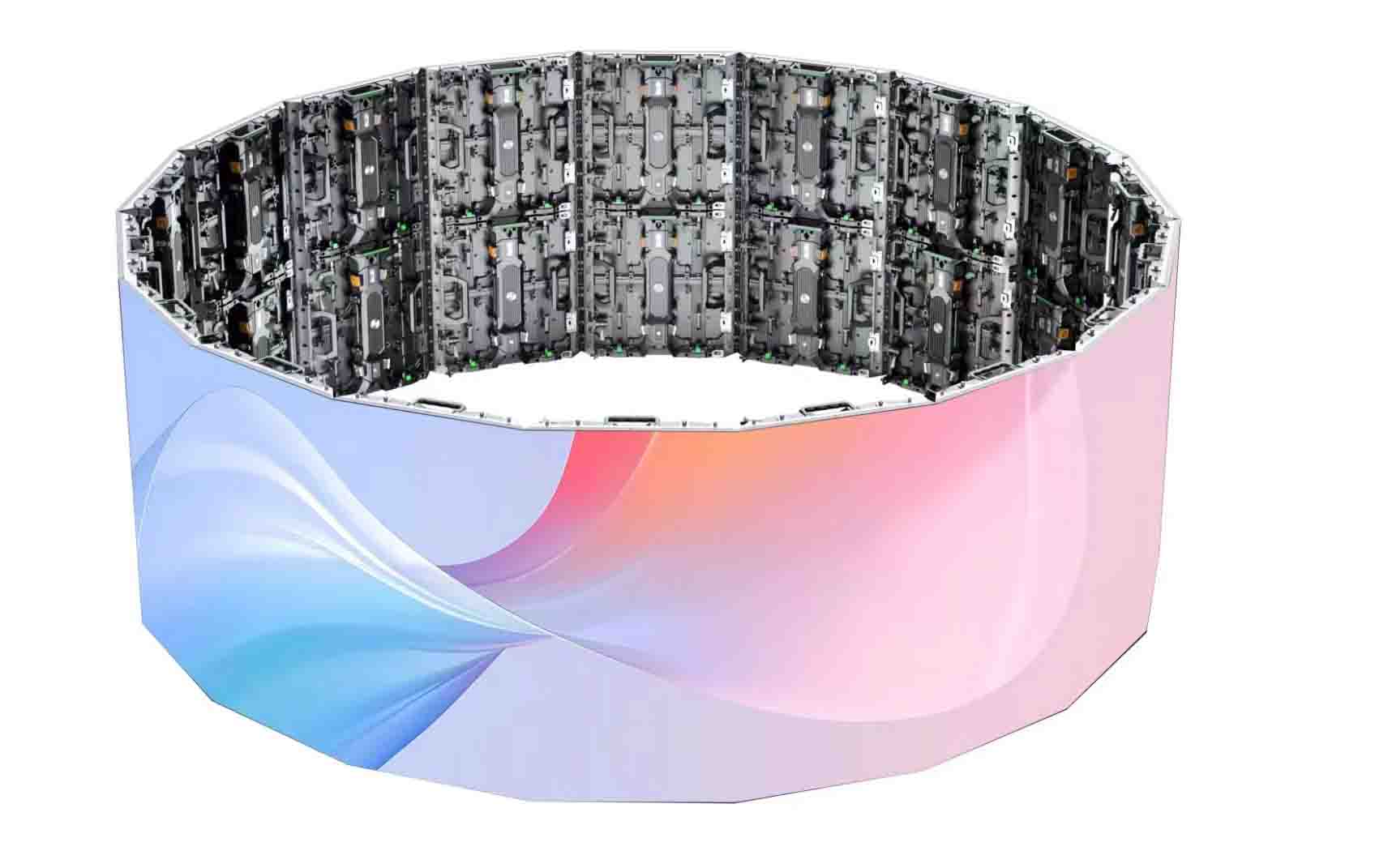

Curved design

It can be used as a curved screen -5 to +10 degrees. The curved fast lock makes the screen seamless between cabinets, making the curved shape also offer a vivid and clear picture and videos.

Parameter

P2.6 Indoor rental LED display 500x500mm parameter
RA500 series for other pixel pitch

Pixel Pitch	P2.604
LED type	SMD2121/1515
Pixel configuration	3-in-1 SMD
Pixel density	147,456 pixels/m2
Module dimension(W*H)	250*250mm
Module resolution	96*96dots
Drive Method	1/32 scan
Maintenance	Front and back
Cabinet size (W*H)	500*500mm
Cabinet depth	87mm
Cabinet material	Aluminum
Cabinet weight	7.7kg/pcs
Brightness	≥1000 cd/m2
Best Viewing Distance	2.5m to 25m
Viewing Angle	140 * 140
Grey Level	14 Bit
Refresh Rate	≥1920HZ / 3840HZ
Power consumption(Avg.)	60w/cabinet
Power consumption(Max.)	170w/cabinet
Humidity-operating	10% ~ 95%
Operating Temperature	-20° – 50° C
Screen life	≥100000 hours
Controlling System	Sync or Async
Certificates	CE,RoHS,FCC,UL
Ingress Protection (IP)	IP31
Warranty	2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED type	SMD2121/1515	SMD2121	SMD2121	SMD2121
Pixel configuration	3-in-1 SMD	3-in-1 SMD	3 in 1 SMD	3-in-1 SMD
Pixel density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module dimension(W*H)	250*250mm	250*250mm	250*250mm	250*250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Drive Method	1/32 scan	1/21 scan	1/16 scan	1/13 scan
Maintenance	Front and back	Front and back	Front and back	Front and back
Cabinet size (W*H)	500*500mm	500*500mm	500*500mm	500*500mm
Cabinet depth	87mm	87mm	87mm	87mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet weight	7.7kg/pcs	7.7kg/pcs	7.7kg/pcs	7.7kg/pcs
Brightness	≥1000 cd/m2	≥1000 cd/m2	≥1000 cd/m2	≥1000 cd/m2
Best Viewing Distance	2.5m to 25m	3m to 30m	4m to 40m	5m to 50m
Viewing Angle	140 * 140	140 * 140	140 * 140	140 * 140
Grey Level	14 Bit	14 Bit	14 Bit	14 Bit
Refresh Rate	≥1920HZ / 3840HZ	≥1920HZ / 3840HZ	≥1920HZ / 3840HZ	≥1920HZ / 3840HZ
Power consumption(Avg.)	60w/cabinet	55w/cabinet	50w/cabinet	50w/cabinet
Power consumption(Max.)	170w/cabinet	160w/cabinet	150w/cabinet	150w/cabinet
Humidity-operating	10% ~ 95%	10% ~ 95%	10% ~ 95%	10% ~ 95%
Operating Temperature	-20° – 50° C	-20° – 50° C	-20° – 50° C	-20° – 50° C
Screen life	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Controlling System	Sync or Async	Sync or Async	Sync or Async	Sync or Async
Certificates	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL
Ingress Protection (IP)	IP31	IP31	IP31	IP31
Warranty	2 Years	2 Years	2 Years	2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
