P2.6 Indoor rental led display RA1000 series

P2.6 Indoor Rental LED Display 500x1000mm with lightweight, good performance, and other features are getting more and more popular in the market. It is also a product that sells well in our company, it has got many customer’s favorites. We have 2 year free guarantee for you, maintenance until you do not use this screen, so choose it, it can not make you disappointed.

Cabinet: 500×1000 mm
Pixel pitch: 2.604mm
Anti-collision system
Hard Connection
Seamless splicing
High-efficiency cooling
High precision

PRODUCT DETAILS

Send Your Inquiry

Feature
Parameter
Download
Video
Related products
FAQs
Top

Feature

Corner design

You can connect the cabinets and then change them into corner LED displays, which can be used on the outside wall of the supermarket, It can achieve the effect of 3D if you have 3D videos, this is a popular method of advertising nowadays.

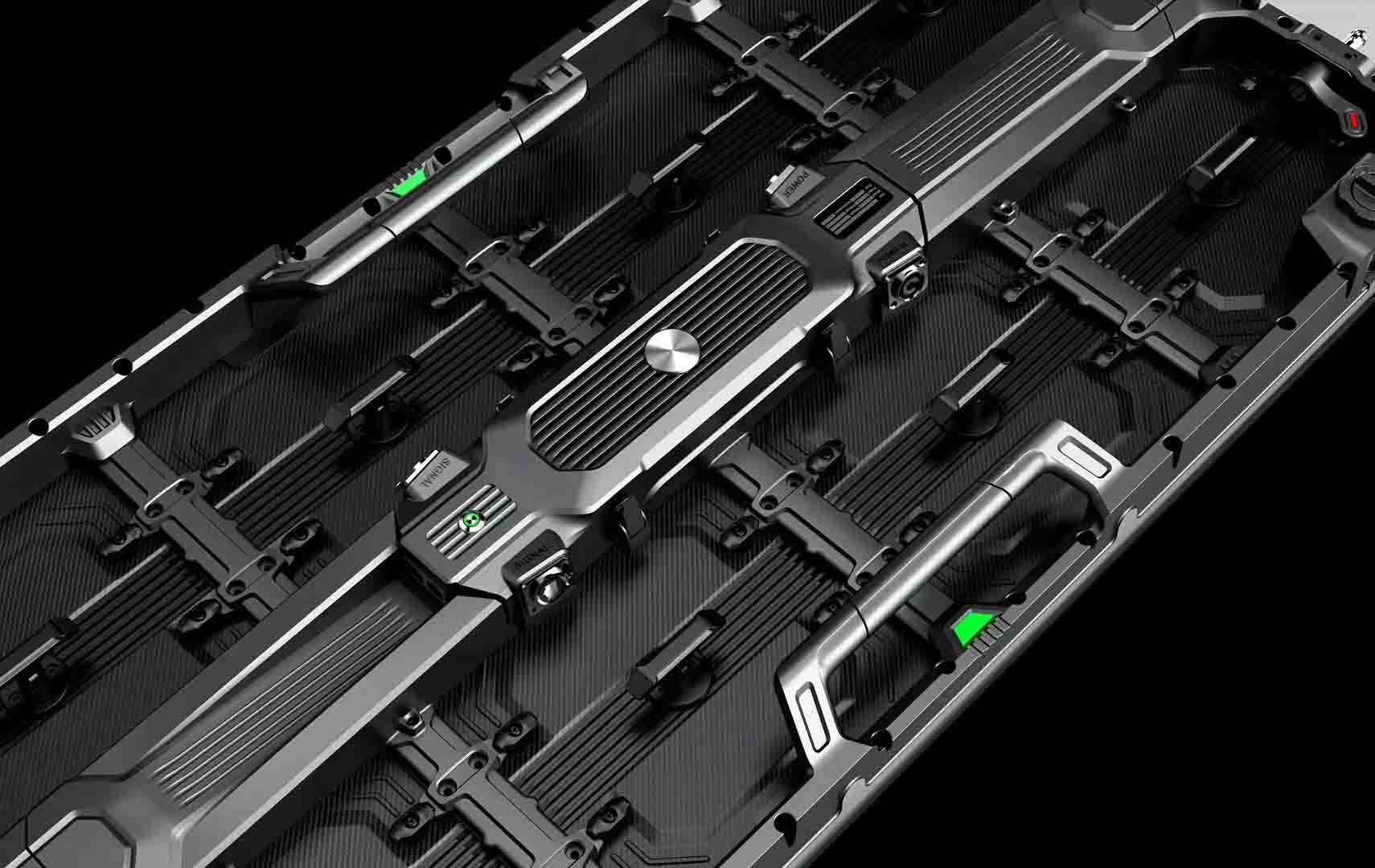

No wires connection

Without wires connection, signal and power can make the LED display more stable and reliable, take out the back cover directly, easy to change within a few seconds, save the most time, and offer convenience when you use it.

Humanization handle

The humanization handle can make it easier to take the cabinets, as well as prepare, install, and assemble them, so this will be a good option for rental use.

Parameter

P2.6 Indoor rental LED display 500x1000mm parameter
RA1000 series for other pixel pitch

LED type	SMD2121/1515
Pixel configuration	3-in-1 SMD
Pixel density	147,456 pixels/m2
Module dimension(W*H)	250*250mm
Module resolution	96*96dots
Drive Method	1/32 scan
Maintenance	Front and back
Cabinet size (W*H)	500*500mm
Cabinet depth	87mm
Cabinet material	Aluminum
Cabinet weight	7.7kg/pcs
Brightness	≥1000 cd/m2
Best Viewing Distance	2.5m to 25m
Viewing Angle	140 * 140
Grey Level	14 Bit
Refresh Rate	≥1920HZ / 3840HZ
Power consumption(Avg.)	60w/cabinet
Power consumption(Max.)	170w/cabinet
Humidity-operating	10% ~ 95%
Operating Temperature	-20° – 50° C
Screen life	≥100000 hours
Controlling System	Sync or Async
Certificates	CE, RoHS, FCC, UL
Ingress Protection (IP)	IP31
Warranty	2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD.

Pixel Pitch	P2.604	P2.97	P3.91	P4.81
LED type	SMD2121/1515	SMD2121	SMD2121	SMD2121
Pixel configuration	3-in-1 SMD	3-in-1 SMD	3 in 1 SMD	3-in-1 SMD
Pixel density	147,456 pixels/m2	112,896 pixels/m2	65,536 pixels/m2	43,264 pixels/m2
Module dimension(W*H)	250*250mm	250*250mm	250*250mm	250*250mm
Module resolution	96*96dots	84*84dots	64*64dots	52*52dots
Drive Method	1/32 scan	1/21 scan	1/16 scan	1/13 scan
Maintenance	Front and back	Front and back	Front and back	Front and back
Cabinet size (W*H)	500*1000mm	500*1000mm	500*1000mm	500*1000mm
Cabinet depth	87mm	87mm	87mm	87mm
Cabinet material	Aluminum	Aluminum	Aluminum	Aluminum
Cabinet weight	13.2kg/pcs	13.2kg/pcs	13.2kg/pcs	13.2kg/pcs
Brightness	≥1000 cd/m2	≥1000 cd/m2	≥1000 cd/m2	≥1000 cd/m2
Best Viewing Distance	2.5m to 25m	3m to 30m	4m to 40m	5m to 50m
Viewing Angle	140 * 140	140 * 140	140 * 140	140 * 140
Grey Level	14 Bit	14 Bit	14 Bit	14 Bit
Refresh Rate	≥1920Hz/3840HZ	≥1920Hz/3840HZ	≥1920Hz/3840HZ	≥1920Hz/3840HZ
Power consumption(Avg.)	120w/cabinet	110w/cabinet	100w/cabinet	100w/cabinet
Power consumption(Max.)	340w/cabinet	320w/cabinet	300w/cabinet	300w/cabinet
Humidity-operating	10% ~ 95%	10% ~ 95%	10% ~ 95%	10% ~ 95%
Operating Temperature	-20° – 50° C	-20° – 50° C	-20° – 50° C	-20° – 50° C
Screen life	≥100000 hours	≥100000 hours	≥100000 hours	≥100000 hours
Controlling System	Synch or Async	Synch or Async	Synch or Async	Synch or Async
Certificates	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL	CE,RoHS,FCC,UL
Ingress Protection (IP)	IP31	IP31	IP31	IP31
Warranty	2 Years	2 Years	2 Years	2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD.
