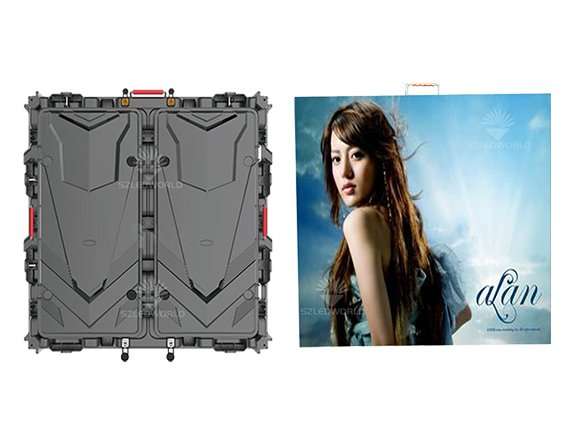

• P2.5 outdoor fixed 960x960mm cabinets front and back

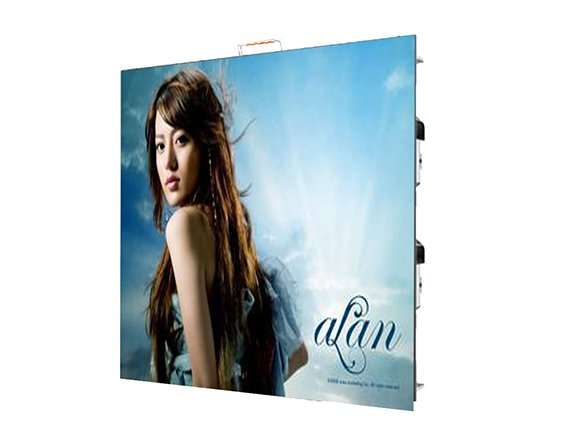

  • P2.5 outdoor fixed 960x960mm cabinets front

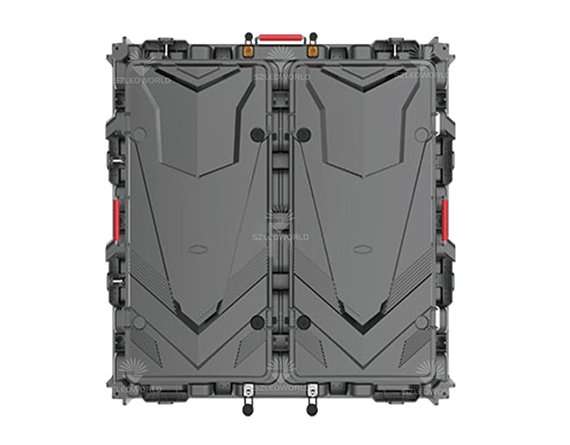

  • P2.5 outdoor fixed 960x960mm cabinets back

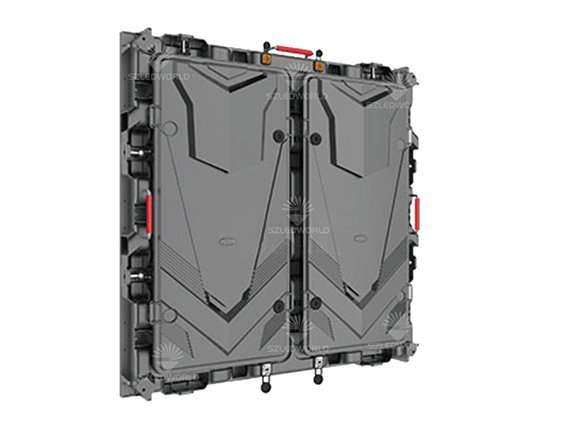

  • P2.5 outdoor fixed 960x960mm cabinets side
  • P2.5 outdoor fixed 960x960mm cabinets front and back
  • P2.5 outdoor fixed 960x960mm cabinets front
  • P2.5 outdoor fixed 960x960mm cabinets back
  • P2.5 outdoor fixed 960x960mm cabinets side

P2.5 Outdoor Fixed LED Display 960x960mm

P2.5 Outdoor Fixed LED Display 960x960mm is an updated product, it has the clearest picture and videos compared with the other LED screens. It has an IP65 waterproof grade to be used on rainy days. With its advanced technology and innovative design, this display is perfect for outdoor applications such as commercial buildings, transportation hubs, stadiums, and more.

  • Cabinet: 960×960 mm
  • Pixel pitch: 2.5mm
  • Magnesium or Aluminum or iron cabinets
  • High definition
  • Good heat dissipation
  • IP65 waterproof
  • High contrast

Feature

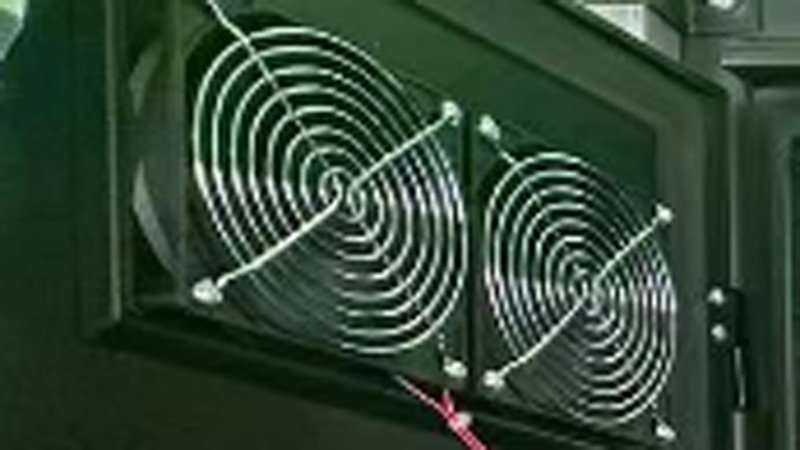

fan

Good heat dissipation

There are 4 fans for one cabinet and aluminium material that make the LED screen have good heat dissipation, it can control the LED screen temperature, making the LED screen can be used for a long time, and it can have good protection for the circuit of the module.

Ultra thin cabinets

The cabinets are very thin, which solves the installation problems, you can put the cabinets easily because they are also very light, which can save your labor cost. So it is a good choice on outdoor led display for you.

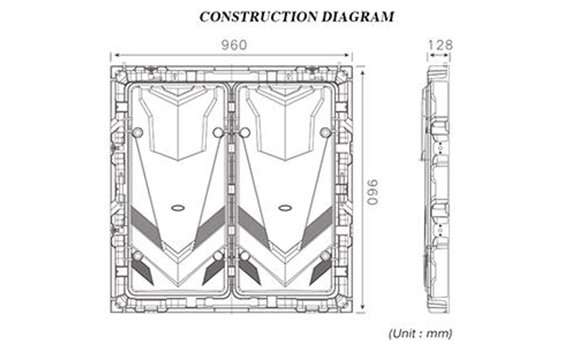

Ultra thin and light
P8 outdoor fixed 960x960mm side

High brightness

The LED screen brightness can reach 6500nits or more, so it decides that the LED screen video or picture can be seen even on a strong sunny day, so it can give you more opportunity to get the advertisement.

Save energy

This cabinet uses advanced technology that makes the machine more economical, it can save electricity energy a lot, in the meanwhile, that means it can save your cost.

Energy saving

Parameter

Pixel Pitch P2.5
LED type SMD1415
Pixel configuration 3-in-1 SMD
Pixel density 160,000 pixels/m2
Module dimension(W*H) 320*160mm
Module resolution 128*64dots
Drive Method 1/16 scan
Cabinet size (W*H) 960*960mm
Cabinet depth 102mm
Cabinet material magnesium or aluminum alloy
Cabinet weight 25kg/pcs
Brightness ≥5500 cd/m2
Best Viewing Distance 2.5m to 25m
Viewing Angle 140 * 140
Grey Level 14 Bit
Refresh Rate ≥1920HZ
Power consumption(Avg.) 400 w/cabinet
Power consumption(Max.) 1200 w/cabinet
Humidity-operating 10% ~ 95%
Operating Temperature -20° – 50° C
Screen life ≥100000 hours
Controlling System Sync or Async
Certificates CE,RoHs,FCC,UL
Ingress Protection (IP) IP65
Warranty 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Pixel Pitch P2.5 P3.33 P4 P5 P6.67 P8 P10
LED type SMD1415 SMD1921 SMD 1921 SMD 1921 SMD 3535 SMD 3535 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 160,000 pixels/m2 90,000 pixels/m2 62,500 pixels/m2 40,000 pixels/m2 22,500 pixels/m2 15,625 pixels/m2 10,000 pixels/m2
Module dimension(W*H) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module resolution 128*64dots 96*48dots 80*40dots 64*32dots 48*24dots 40*20dots 32*16dots
Drive Method 1/16 scan 1/12 scan 1/10 scan 1/8 scan 1/6 scan 1/5 scan 1/2 scan
Cabinet size (W*H) 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm 960/1280*960mm
Cabinet depth 102mm 102mm 102mm 102mm 102mm 102mm 102mm
Cabinet material magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy
Cabinet weight 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs 25kg/pcs
Brightness ≥5500 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 6000 cd/m2 5800 cd/m2 6500 cd/m2
Best Viewing Distance 3m to 30m 3m to 30m 4m to 40m 5m to 50m 6m to 60m 8m to 80m 10m to 100m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Power consumption(Avg.) 400 w/cabinet 400 w/cabinet 300w/cabinet 300w/cabinet 270w/cabinet 300w/cabinet 300w/cabinet
Power consumption(Max.) 1200 w/cabinet 1200 w/cabinet 900w/cabinet 900w/cabinet 800w/cabinet 900w/cabinet 900w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65 IP65 IP65 IP65
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
