p2.5 indoor fixed led display
P2.5 indoor LED display is the most popular product for indoor fixed installation. If you are looking for a balance between display effect and price, it is undoubtedly your best choice. It displays delicate, smooth, bright pictures and is easy to install. your audience can see the video and picture more clearly. It is used in indoor occasions such as hotels, auditoriums, schools, stages, etc.
- Pixel pitch: 2.5mm
- Resolution: 160,000 pixels/sqm
- LED module size: 320x160mm or 160x160mm
- Drive model: 1/32 scan
- High refresh rate: 3840Hz or 7680Hz
- Front service and Rear service for your choose from.
Feature

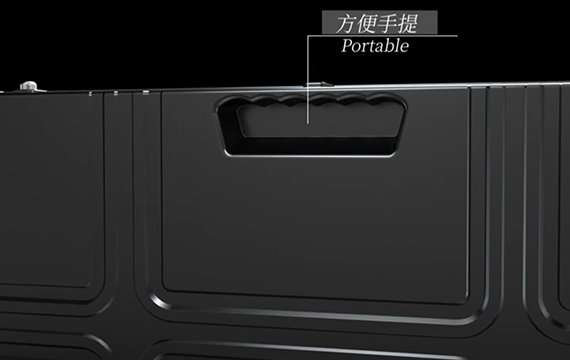

Portable handle
Here is a portable handle at the top of the cabinets, this can take the cabinets easily, also a good design when you install or move the led screen.
Good design
The cabinet has joint locks on the left-right sides and the top and bottom, making it easier for you to join the cabinets, and the gap after joining is extremely small, which improves the display effect of your LED display.

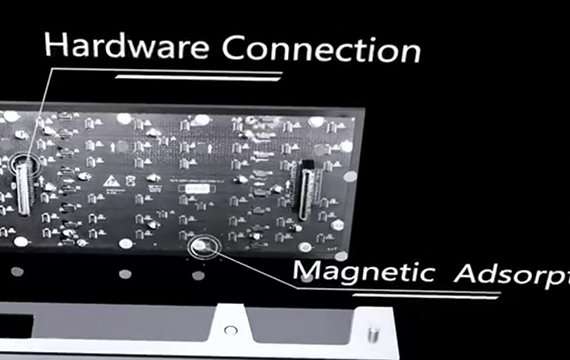

Hardware connection
There is a hardware connection that can make the program have a better sending. Also the modules with the magnetic adsorption, which make the led screen can be repaired from front, if there is no space at the back, this is a good choice for you.
Parameter
- p2.5 indoor fixed led display
- IF Series Indoor LED Display
| Model No. | IF2.5 |
| Pixel Pitch | 2.5 mm |
| Pixel Structure | 3 IN 1 SMD |
| Pixel Density | 160000 pixel / m2 |
| Module Resolution | 128×64 |
| Module Size (W X H) | 320×160 mm |
| White Balance Brightness | ≥800cd / m2 |
| Color Temperature | 2000K-12500K Adjustable |
| Horizontal Viewing Angle | 140 Deg |
| Vertical Viewing Angle | 140 Deg |
| Brightness Uniformity | ≥ 97% |
| Contrast Ratio | ≥ 5000: 1 |
| Single processing bits | 16 bits*3 |
| Gray scale | 12-16 Bit |
| Control Distance | Cable: 100m, Optical Fiber: 10 KM |
| Drive Model | Constant Current source Driver |
| Frame Rate | ≥ 60 HZ |
| 1920-3840 HZ | |
| Way to Control | Synchronous or asynchronous |
| Brightness Adjustment Range | 0-100 Stepless Adjustment |
| Continuous Operation Time | ≥ 72h |
| Expected LED Lifetime (MAX): | > 100,000 hours |
| IP Rating | IP20 |
| Operating Temperature | -20 deg.C to 50 deg.c |
| Operating Humidity | 10%-80% RH No Condensation |
| Storage Temperature | -20 deg.c to 60 deg.c |
| Operating Voltage | DC 4.5-5V |
| Power Requirement | AC: 220 x (1±10%) V 50x (1±5%) Hz |
| Maximum power consumption | 730W / m2 |
| Average power consumption | 245W / m2 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |
| Model No. | IF2 | IF2.5 | IF3.076 | IF4 | IF5 |
| Pixel Pitch | 2.0 mm | 2.5 mm | 3.076 mm | 4 mm | 5 mm |
| Pixel Structure | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Pixel Density | 250,000 pixel/m2 | 160,000 pixel/m2 | 105,625 pixel/m2 | 62,500 pixel/m2 | 40,000 pixel m2 |
| Module Resolution | 160×80 | 128×64 | 104×52 | 80×40 | 80×40 |
| Module Size (W X H) | 320×160 mm | 320×160 mm | 320×160 mm | 320×160 mm | 320×160 mm |
| White Balance Brightness | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 | ≥800cd / m2 |
| Horizontal Viewing Angle | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 140 Deg |
| Vertical Viewing Angle | 140 Deg | 140 Deg | 140 Deg | 140 Deg | 140 Deg |
| Brightness Uniformity | ≥ 97% | ≥ 97% | ≥ 97% | ≥ 97% | ≥ 97% |
| Contrast Ratio | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 | ≥ 5000: 1 |
| Single processing bits | 16 bits*3 | 16 bits*3 | 16 bits*3 | 16 bits*3 | 16 bits*3 |
| Gray scale | 12-16 Bit | 12-16 Bit | 12-16 Bit | 12-16 Bit | 12-16 Bit |
| Drive Model | 1/40 scan | 1/32 scan | 1/26 scan | 1/20 scan | 1/16 scan |
| Maximum power consumption | 730W / m2 | 730W / m2 | 650W / m2 | 650W / m2 | 480W / m2 |
| Average power consumption | 245W / m2 | 245W / m2 | 220W / m2 | 220W / m2 | 160W / m2 |
| Frame Rate | ≥ 60 HZ | ||||
| Refresh Rate | 1920-3840 HZ | ||||
| Control Distance | Cable: 100m, Optical Fiber: 10 KM | ||||
| Way to Control | Synchronous or asynchronous | ||||
| Brightness Adjustment Range | 0-100 Stepless Adjustment | ||||
| Color Temperature | 2000K-12500K Adjustable | ||||
| Continuous Operation Time | ≥ 72h | ||||
| Expected LED Lifetime (MAX): | > 100,000 hours | ||||
| IP Rating | IP20 | ||||
| Operating Temperature | -20 deg.C to 50 deg.c | ||||
| Operating Humidity | 10%-80% RH No Condensation | ||||
| Storage Temperature | -20 deg.c to 60 deg.c | ||||
| Operating Voltage | DC 4.5-5V | ||||
| Power Requirement | AC: 220/110 x (1±10%) V 50x (1±5%) Hz | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to RGBLEDWORLD. | |||||
