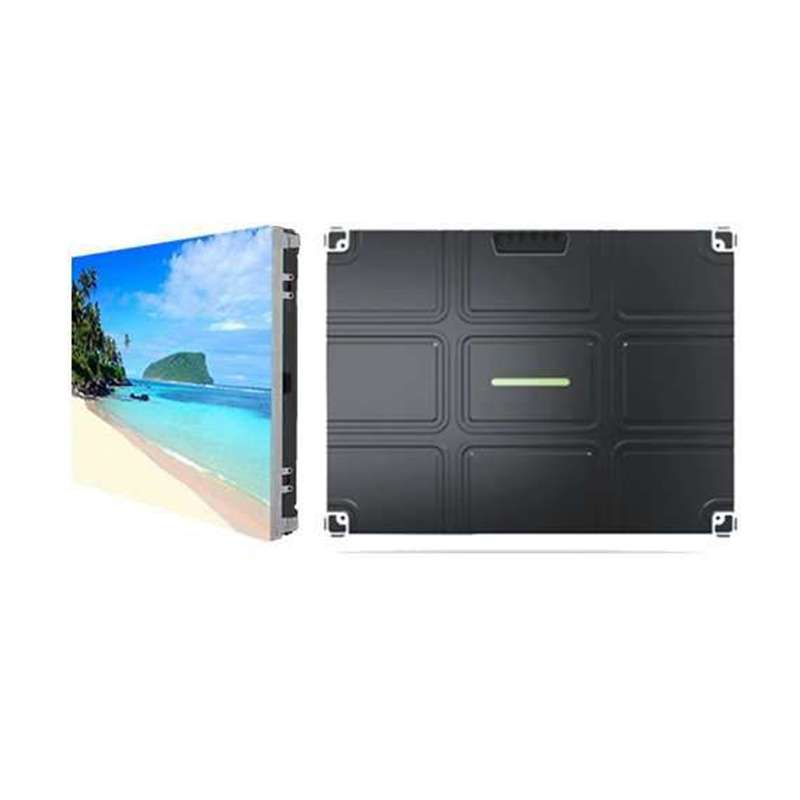

• P2 indoor fixed led display front and back

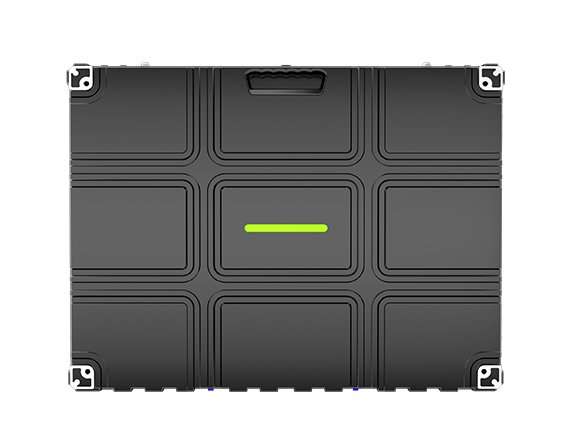

  • P2 indoor fixed led display back

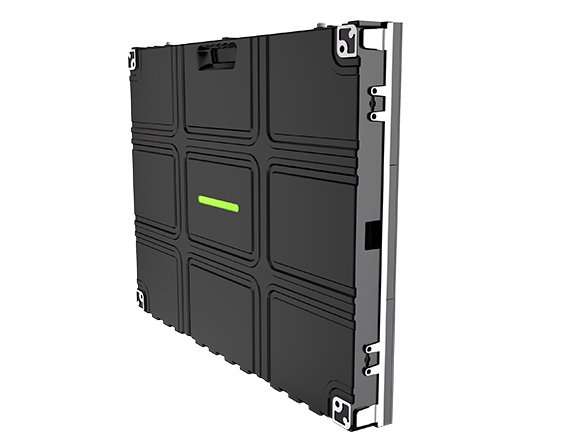

  • P2 indoor fixed led display side
  • P2 indoor fixed led display side
  • P2 indoor fixed led display front and back
  • P2 indoor fixed led display back
  • P2 indoor fixed led display side
  • P2 indoor fixed led display side

P2 Indoor LED Display

P2 indoor LED display is a high-definition model with bright colors, high grayscale level, front maintenance, and rear maintenance for you to choose from, suitable for indoor conference halls, exhibition halls, shopping malls, churches, etc.

  • Pixel pitch: 2mm
  • Pixel density: 250,000 dots/sqm;
  • Drive model: 1/40 scan;
  • Ultra-thin and ultra-light
  • Viewing Angle: 140°/120°
  • Good heat dissipation

Feature

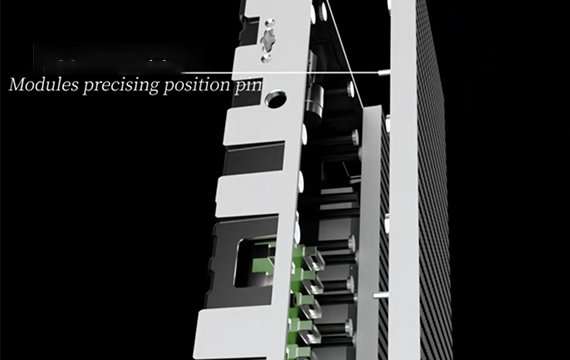

Modules precising position pin

Modules precising position pin

This pin can make the modules installed soon and calculate, this can save the installation time, improve your working affection.

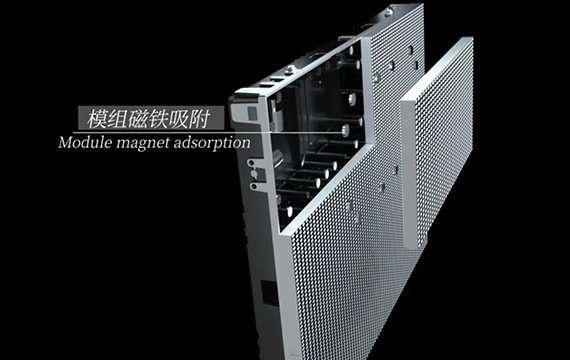

Module magnet adsorption

The magnet can make the LED screen have full front maintenance, then save time in preparing, giving you more choices when you choose the maintenance method.

Module magnet adsorption

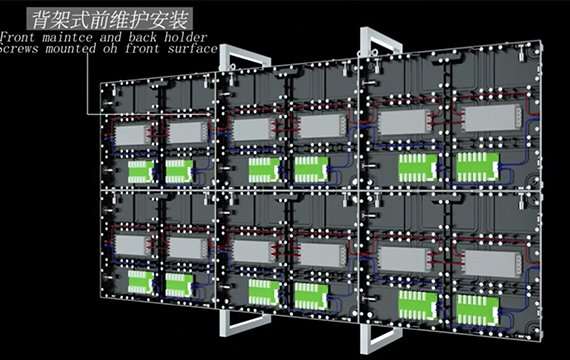

Front repair and back holder

Front repair and back holder

You can design the back holder even though no wall can install the LED display, this does not have the limits for the spot.

If there is no space at the back of cabinets, these cabinets also can be repaired from the front, this can offer convenience when you have other choices.

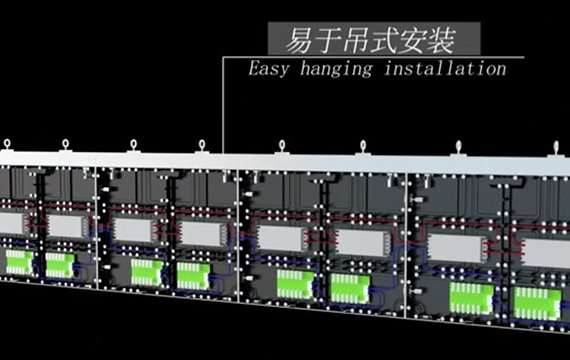

Easy hanging installation

This not only can be installed by the back holder but is also easy to hang installation, this is almost used in a rental event and can save time in installing.

Easy hanging installation

Parameter



Model No. IF2
Pixel Pitch 2.0 mm
Pixel Structure 3 IN 1 SMD
Pixel Density 250,000 pixel / m2
Module Resolution 160×80
Module Size (W X H) 320×160 mm
White Balance Brightness ≥800cd / m2
Color Temperature 2000K-12500K Adjustable
Horizontal Viewing Angle 140 Deg
Vertical Viewing Angle 140 Deg
Brightness Uniformity ≥ 97%
Contrast Ratio ≥ 5000: 1
Single processing bits 16 bits*3
Gray scale 12-16 Bit
Control Distance Cable: 100m, Optical Fiber: 10 KM
Drive Model Constant Current source Driver
Frame Rate ≥ 60 HZ
Refresh Rate 1920-3840 HZ
Way to Control Synchronous or asynchronous
Brightness Adjustment Range 0-100 Stepless Adjustment
Continuous Operation Time ≥ 72h
Expected LED Lifetime (MAX): > 100,000 hours
IP Rating IP20
Operating Temperature -20 deg.C to 50 deg.c
Operating Humidity 10%-80% RH No Condensation
Storage Temperature -20 deg.c to 60 deg.c
Operating Voltage DC 4.5-5V
Power Requirement AC: 220 x (1±10%) V 50x (1±5%) Hz
Maximum power consumption 730W / m2
Average power consumption 245W / m2
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
Model No. IF2 IF2.5 IF3.076 IF4 IF5
Pixel Pitch 2.0 mm 2.5 mm 3.076 mm 4 mm 5 mm
Pixel Structure 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD 3 IN 1 SMD
Pixel Density 250,000 pixel/m2 160,000 pixel/m2 105,625 pixel/m2 62,500 pixel/m2 40,000 pixel m2
Module Resolution 160×80 128×64 104×52 80×40 80×40
Module Size (W X H) 320×160 mm 320×160 mm 320×160 mm 320×160 mm 320×160 mm
White Balance Brightness ≥800cd / m2 ≥800cd / m2 ≥800cd / m2 ≥800cd / m2 ≥800cd / m2
Horizontal Viewing Angle 140 Deg 140 Deg 140 Deg 140 Deg 140 Deg
Vertical Viewing Angle 140 Deg 140 Deg 140 Deg 140 Deg 140 Deg
Brightness Uniformity ≥ 97% ≥ 97% ≥ 97% ≥ 97% ≥ 97%
Contrast Ratio ≥ 5000: 1 ≥ 5000: 1 ≥ 5000: 1 ≥ 5000: 1 ≥ 5000: 1
Single processing bits 16 bits*3 16 bits*3 16 bits*3 16 bits*3 16 bits*3
Gray scale 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit 12-16 Bit
Drive Model 1/40 scan 1/32 scan 1/26 scan 1/20 scan 1/16 scan
Maximum power consumption 730W / m2 730W / m2 650W / m2 650W / m2 480W / m2
Average power consumption 245W / m2 245W / m2 220W / m2 220W / m2 160W / m2
Frame Rate ≥ 60 HZ
Refresh Rate 1920-3840 HZ
Control Distance Cable: 100m, Optical Fiber: 10 KM
Way to Control Synchronous or asynchronous
Brightness Adjustment Range 0-100 Stepless Adjustment
Color Temperature 2000K-12500K Adjustable
Continuous Operation Time ≥ 72h
Expected LED Lifetime (MAX): > 100,000 hours
IP Rating IP20
Operating Temperature -20 deg.C to 50 deg.c
Operating Humidity 10%-80% RH No Condensation
Storage Temperature -20 deg.c to 60 deg.c
Operating Voltage DC 4.5-5V
Power Requirement AC: 220/110 x (1±10%) V 50x (1±5%) Hz
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
What is the P2 led screen price

P2 led screen price is 1560 USD/sqm to 3200 USD/sqm

What is the P2 led screen resolution

P2 led screen resolution is 250,000 dots/sqm
