Outdoor transparent led display ( LTO series)

The outdoor transparent LED screen LTO series is your best choice for outdoor transparent series products. It can work normally in harsh outdoor environments and has the characteristics of high light transmittance, high brightness, lightness, thinness, waterproof, dustproof, and windproof.

  • The die-cast aluminum cabinet is thin, light, highly precise, and does not require a fan for heat dissipation;
  •  Transparency 55%, natural light can pass through the LED screen smoothly
  • The cabinet is thin, takes up little space, and can be suitable for most installation situations without changing the installation structure;
  • The grid module has small wind resistance and the die-cast aluminum material dissipates heat quickly;
  • Compatible with front and rear maintenance at the same time, maintenance cost is low;
  • The module adopts glue filling process, waterproof protection, IP65

Feature

Outdoor transparent LED display waterproof

Waterproof

The PCB and lamp beads are surrounded by waterproof glue, with a waterproof rating of IP65. Hundreds of cases have verified it and has very good waterproof, dustproof, and windproof effects. It is your trustworthy outdoor transparent screen product model.

Slim and lightweight design

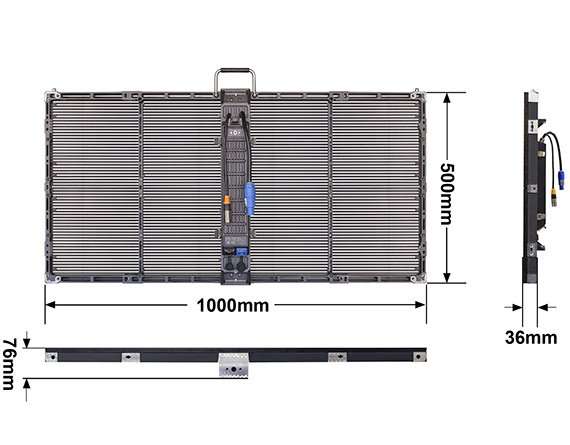

The cabinet is designed with aluminum material, so it is lighter and more slim than the traditional one. One single panel can be easily assembled and the weight of each is 15kgs/sqm. The thickness is 36mm.

Outdoor transparent LED display thin
Single Block

Single Block

The bar is designed in a single block. A connector that connects two LED bars, reduces wiring, facilitates maintenance, and ensures the LED screen is more durable, and the video more stable.

High transparency

The LED screen has good transparency, no blocking of outdoor light, and the transparency can be up to 53% to 71%.

And no lines are making the LED screen appearance look more beautiful. It is also available in various pixel pitches suitable for any budget.

High transparency
Outdoor transparent LED display Front & Rear service

Front & Rear Service

The LTO transparent Outdoor LED screen can be maintained from the front or the back. Maintenance is simple and convenient to meet your diverse needs in different usage environments.

Parameter

Model LTO3.9-7.8 LTO5.2-10.4 LTO10.4 LTO15.6
Pixel Pitch(mm) H:3.9 V:7.8 H:5.2 V:10.4 H:10.4 V:10.4 H:15.6 V:15.6
Transparency Rate 53% 58% 58% 71%
Resolution(dot/ m²) 32768 18432 9216 4096
Cabinet Resolution 256×64 192×48 96×48 64×32
Weight(Kg/ m²) 15 15 15 15
Refresh(Hz) 3840 3840 3840 3840
Driving IC ICN2153PWM MY9866 MY9866 ICN2038S
Scan Mode 1/8 1/4 1/2 Static
LED Type SMD1921 SMD1921 SMD2727 SMD2727
Brightness (cd/ m²) ≥ 4500 ≥ 5500
Lamp Life Span ≥ 100 000 hours
Pixel Compose RGB all in one
Grey Scale 14bit
Max Power Consumption (W/ m²) 800
Ave. Power Consumption(W/ m²) 260
LED Control System NOVA
Connection & Control WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control
IP Level IP65
Clean Ghosting Yes
Input Power AC100~240V 50/60Hz
Module Input Power DC4.7~5V ±0.2V
Cabinet Material (mm) 1000x500x80
Cabinet Material Die Casting
Maintenance Front/ Rear Service
Working Tempareture and humidity Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing
Installation Hanging (vertical 20pcs cabinet) 10 )/ Stacking / Fixed installation
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
