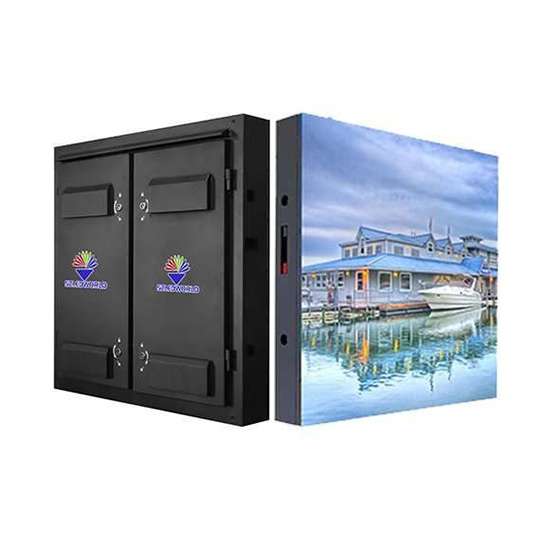

• LFO outdoor fixed led display back and front

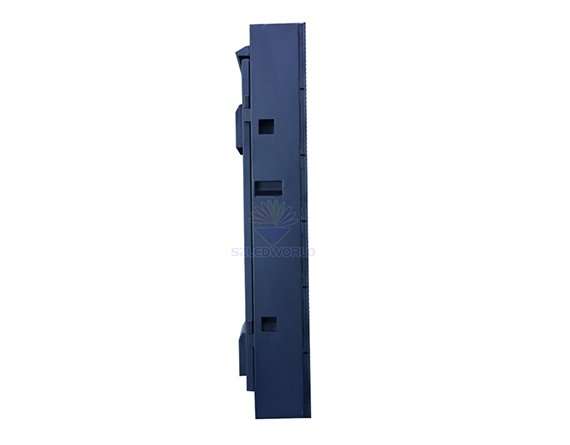

  • LFO outdoor fixed led display side

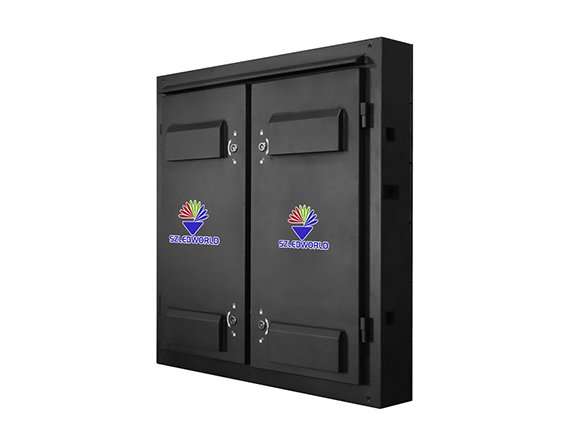

  • LFO outdoor fixed led display back

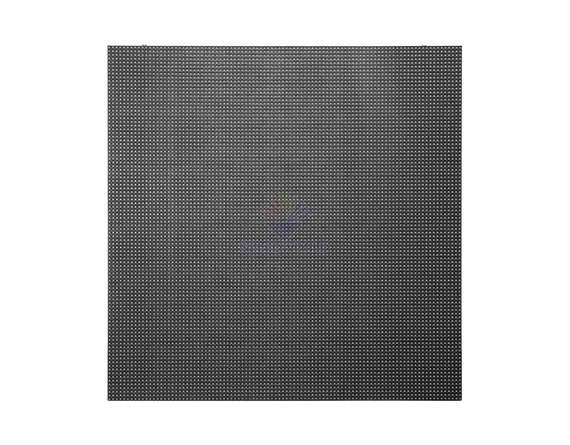

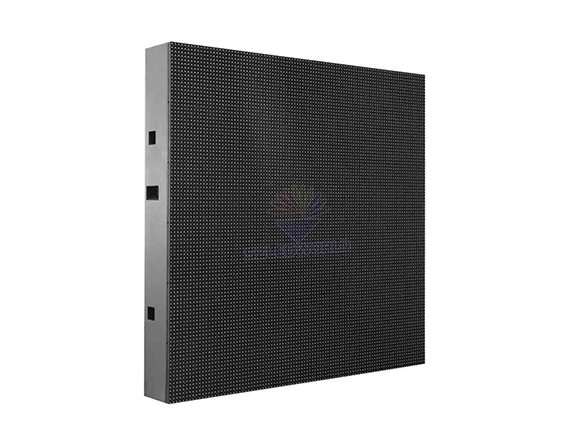

  • LFO outdoor fixed led display front
  • LFO outdoor fixed led display front
  • LFO outdoor fixed led display side
  • LFO outdoor fixed led display back and front
  • LFO outdoor fixed led display side
  • LFO outdoor fixed led display back
  • LFO outdoor fixed led display front
  • LFO outdoor fixed led display front
  • LFO outdoor fixed led display side

LFO Series Outdoor Fixed LED Display

LFO Series outdoor fixed LED display is a classic, cost-effective outdoor model, one of the main types many customers choose for fixed installation. Its cabinet size can be customized according to customer needs, and there are front service or rear maintenance for your choosing. The cabinet material can be iron powder-coated or aluminum powder-coated.

It is used in large outdoor wall advertising screens, large pillar screens in transportation hubs, floor-mounted LED displays in stations, etc.

  • Cabinet size: 960×960 mm or customized;
  • High brightness
  • Lower consumption
  • High contrast and definition
  • Stable and durable
  • cost-effective;

Feature

Waterproof

Waterproof

This cabinet is the IP65 waterproof grade, which can operate normally on a rainy day or in a moist environment.

Iron cabinets

The cabinet is made of iron material, which is more economical than aluminum cabinets, when you do not have enough money to invest it, this will be a good choice.

Iron cabinets

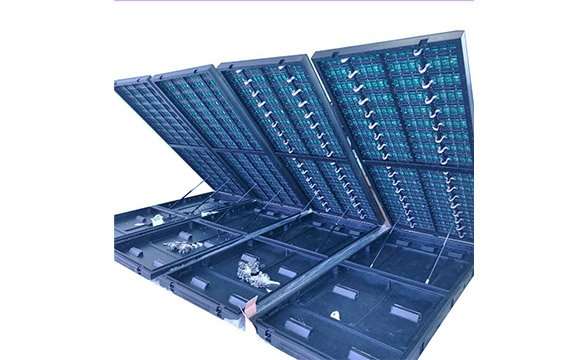

Front service

Front service

The cabinets can be designed by the front service cabinets, which can be used more places if the back area does not have enough space, you can repair it from the front,  so it gives you more choice to choose the suitable product.

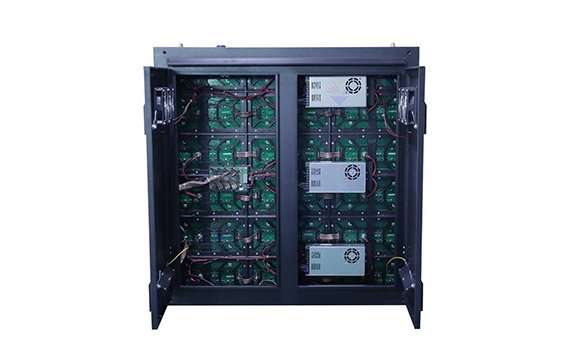

Back door

The back door can provide good protection to the line and power supply and also offers convenience for maintenance. It makes the cabinets look more tidy.

Back door

Parameter

Pixel Pitch P2.5 P3 P3.33 P4 P5 P6 P6.67 P8 P10
LED type SMD1415 SMD1921 SMD1921 SMD 1921 SMD 1921 SMD 3535 SMD 3535 SMD 3535 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 160,000 pixels/m2 111,111 pixels/m2 90,000 pixels/m2 62,500 pixels/m2 40,000 pixels/m2 62,500 pixels/m2 22,500 pixels/m2 15,625 pixels/m2 10,000 pixels/m2
Module dimension(W*H) 160*160mm 192*192mm 320*160mm 320*160mm 320*160mm 192*192mm 320*160mm 320*160mm 320*160mm
Module resolution 64*64dots 64*64dots 96*48dots 80*40dots 64*32dots 32*32dots 48*24dots 40*20dots 32*16dots
Drive Method 1/16 scan 1/16 scan 1/12 scan 1/10 scan 1/8 scan 1/8 scan 1/6 scan 1/5 scan 1/2 scan
Cabinet size (W*H) 640*640mm or Customized 768*768mm or Customized 960*960mm or Customized 960*960mm or Customized 960*960mm or Customized 1152*1152mm or Customized 960*960mm or Customized 960*960mm or Customized 960*960mm or Customized
Cabinet depth 136mm 136mm 136mm 136mm 136mm 136mm 136mm 136mm 136mm
Cabinet material  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum  Iron or aluminum
Cabinet weight 16kg/pcs 23kg/pcs 36kg/pcs 36kg/pcs 36kg/pcs 52kg/pcs 36kg/pcs 36kg/pcs 36kg/pcs
Brightness ≥6800 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 ≥5500 cd/m2 5000 cd/m2 6000 cd/m2 5800 cd/m2 6500 cd/m2
Best Viewing Distance 2.5m to 25m 3m to 30m 3m to 30m 4m to 40m 5m to 50m 6m to 60m 6m to 60m 8m to 80m 10m to 100m
Viewing Angle 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ ≥1920HZ
Power consumption(Avg.) 200 w/cabinet 267 w/cabinet 400 w/cabinet 300w/cabinet 300w/cabinet 400w/cabinet 270w/cabinet 300w/cabinet 300w/cabinet
Power consumption(Max.) 600 w/cabinet 800 w/cabinet 1200 w/cabinet 900w/cabinet 900w/cabinet 1200w/cabinet 800w/cabinet 900w/cabinet 900w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Synch or Async Synch or Async Synch or Async Synch or Async Synch or Async Synch or Async Synch or Async Synch or Async Synch or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
Warranty 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
