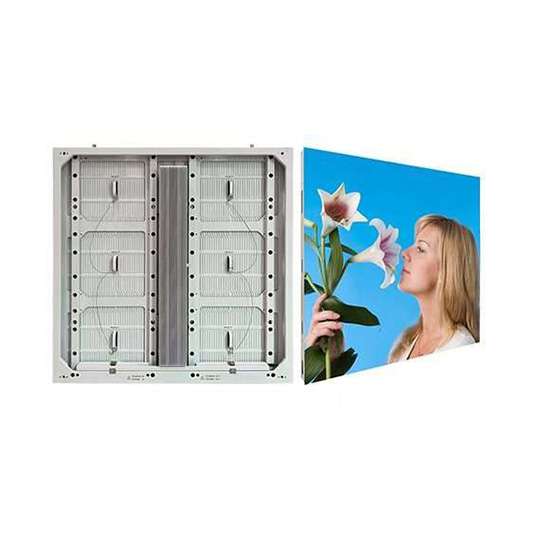

• LFEV outdoor fixed led display front and back

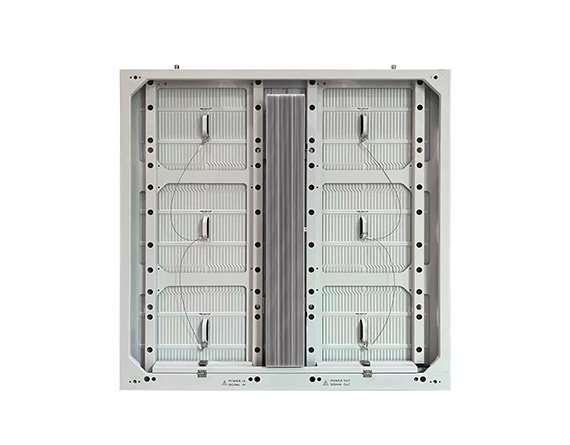

  • LFEV outdoor fixed led display back

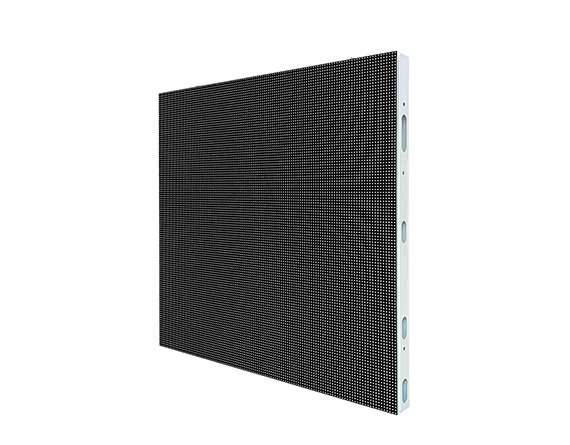

  • LFEV outdoor fixed led display side
  • LFEV outdoor fixed led display side
  • LFEV outdoor fixed led display front and back
  • LFEV outdoor fixed led display back
  • LFEV outdoor fixed led display side
  • LFEV outdoor fixed led display side

LFEV series energy saving outdoor fixed led display

LFEV series is a new series of LED displays with large modules, module size is 480x320mm or 500x250mm. It can use a 960x960mm or 1000x1000mm die-cast aluminum cabinet or profile aluminum cabinet, its height size can be customized. Has the following characteristics

  • Common cathode energy saving is about 40%;
  • High waterproof IP66;
  • Aluminum cabinet or LED module, good heat dissipation;
  • The cabinet is ultra-light, 25 kg/piece;
  • Support front and rear maintenance;
  • Ultra-thin cabinet

Feature

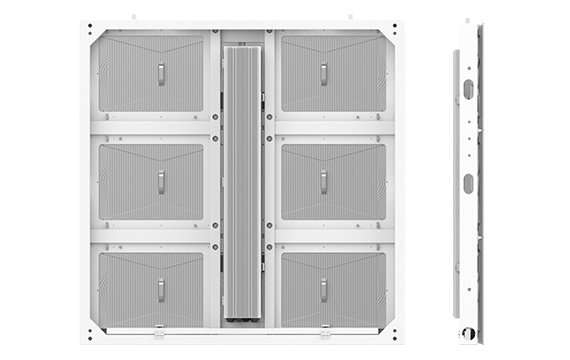

Ultra thin

Ultra thin

This cabinet is an updated technology, from the appearance view, the cabinet is white, which will be more catch the eye.

Compared to the traditional iron cabinets, this will be lighter and thinner, so you also can choose this one for a rental one, this will save your budget.

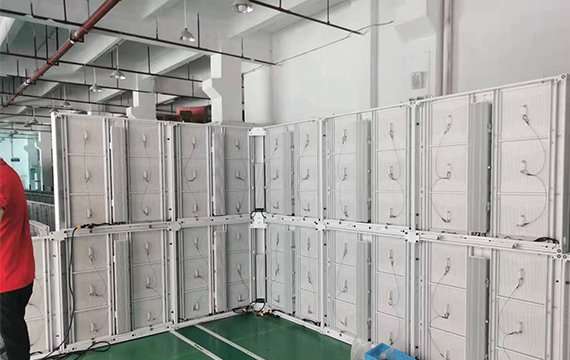

Seamless

All the cabinets combined are seamless, which will offer a vivid picture and video, also it with the 6500nits brightness, you can see this video clearly even under the strong sunshine.

Seamless

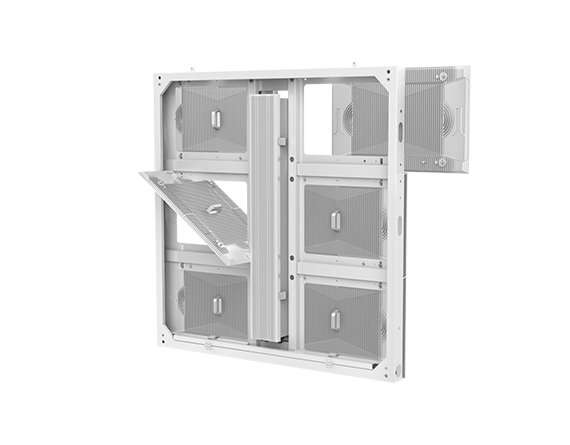

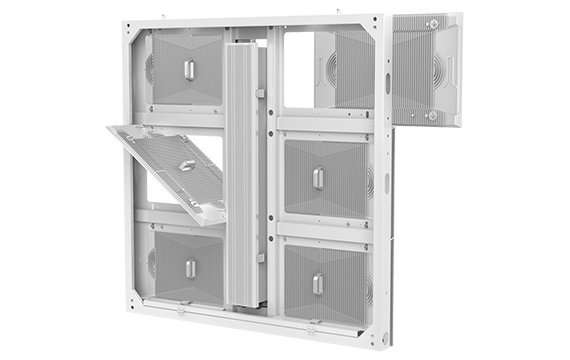

Front or rear service

Front or rear service

You can choose front or rear service according to your needs, which gives you more choice when you buy the products, front service will save you time more than rear service.

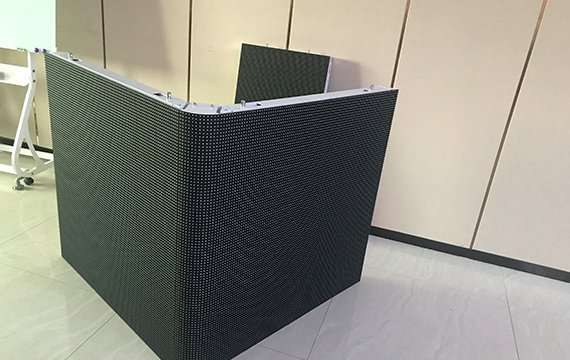

Curved design

This cabinet can be used by curves, which can achieve the 3d effect, you just find the 3d videos and then send them to the screen, and this video can attract more attention when it is displayed.

Curve design

Parameter

Parameter LFEV6.67 LFEV8 LFEV10
Pixel Configuration SMD 2727 SMD 3535 SMD 3535
Pixel Pitch(mm) 6.67 8 10
Module size(mm)  (W×H×D) 480 x320 x23.5mm 480 x320 x23.5mm 480 x320 x23.5mm
Module resolution (W×H) 72 X 48 60 X 40 48 X 32
Module weight(kg/module) 2.5 2.5 2.5
Cabinet Size (mm)(W×H×D) 960 x 960 x 101.2 960 x 960 x 101.2 960 x 960 x 101.2
Cabinet resolution (W×H) 144 X 144 120 X 120 96 X 96
Cabinet area (m2) 0.92 0.92 0.92
Weight(kg/cabinet) 28 28 28
Color Temperature 6500~9500K 6500~9500K 6500~9500K
Processing 16 bit 16 bit 16 bit
Drive method 1/6  scan 1/3  scan 1/2 scan
Brightness (nits) 5000~7500(goldwire) 5500~8000(goldwire) 5500~8500(goldwire)
Viewing Angle (Horizontal/Vertical °) 160/140 160/140 160/140
Contrast Ratio 5000:01:00 5000:01:00 5000:01:00
Max Power Consumption/m2) 570W 550W 550W
Avg Power Consumption(W/m2) 190W 185W 185W
Power Supply AC100~240V(50/60Hz) AC100~240V(50/60Hz) AC100~240V(50/60Hz)
Refresh Rate(Hz) >3840 (gold wire) >3840 (gold wire) >3840 (gold wire)
Lifetime (hrs) 100,000 100,000 100,000
Operation Temperature Range(℃) -30 — 65 -30 — 65 -30 — 65
Operation Humidity Range(RH) 10 — 95% 10 — 95% 10 — 95%
IP rating (F/R) IP68/IP65 IP68/IP65 IP68/IP65
Service (F/R) (F/R) (F/R)
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
