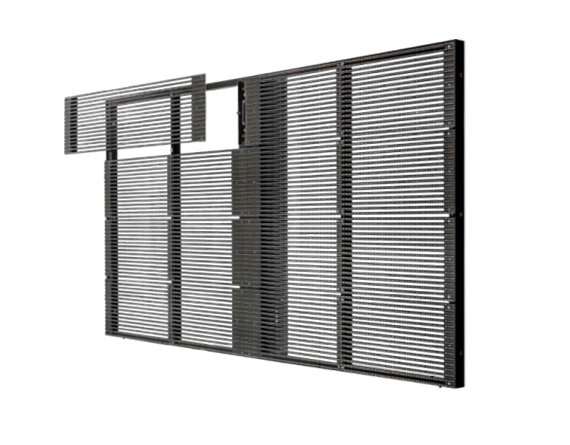

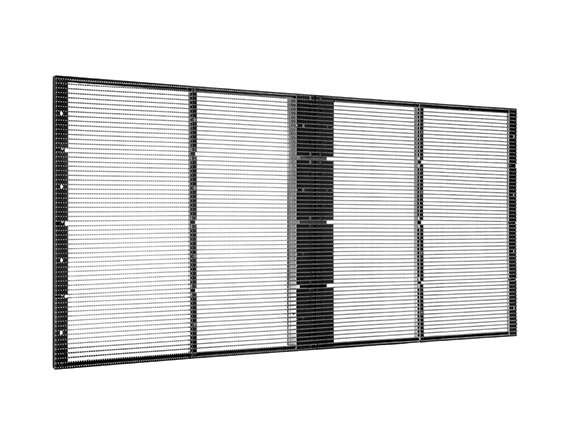

Indoor transparent led display ( LTI series)

There are two types of indoor transparent LED displays. One is installed indoors and faces the room. It does not require high brightness, so it has a price advantage. It is mainly used in nightclubs, concerts, high-speed rail stations, airport interiors, etc.; The other one is to be installed indoors, but the display face faces outdoors, requiring higher brightness to display content. It should be installed behind the glass in stores, hotels, brand chain stores, etc.

  • Seamless Splicing
  • Different brightness for your choosing
  • High grade of transparency
  • Light and easy to install
  • Energy conservation
  • Remote control
  • Vivid video and picture

Feature

High brightness

High brightness

The transparent indoor LED screen is beside the back of the window, but it can be seen clearly even in bright daylight because it has 4500~ 6500nits brightness and beats traditional projectors and LCDs, it has thin and light advantages.

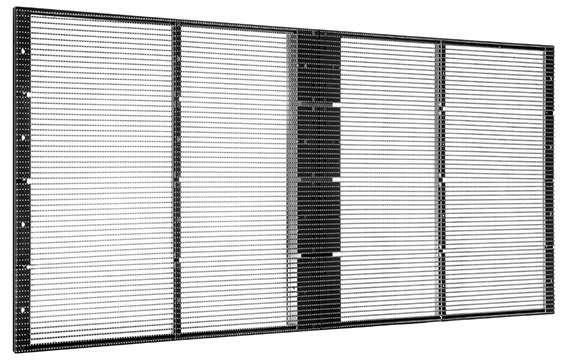

Good appearance

As you can see, there is no more extra line at the outside of the cabinets, it is an updated technology that makes the cabinets look more beautiful, and also can save time when you install and operate the led screen.

Good appearance
Simple maintenance

Simple maintenance

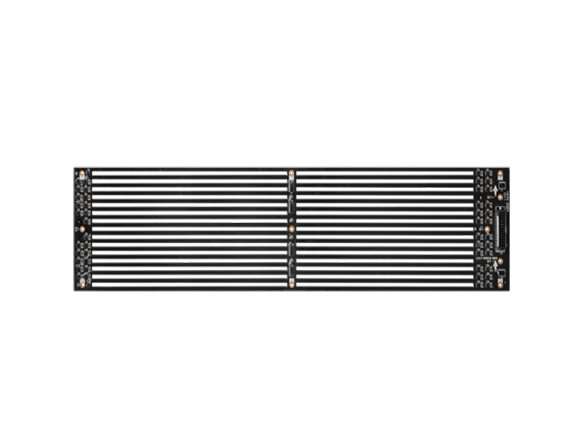

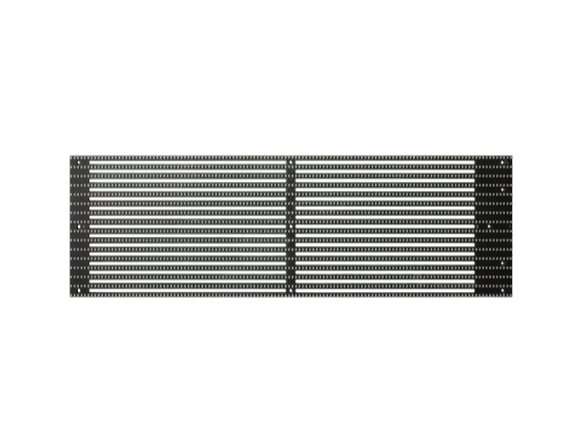

When there is one part of the LED module has a problem, you do not need to worry about repairing the entire module, just a single LED strip, there will be lower maintenance costs.

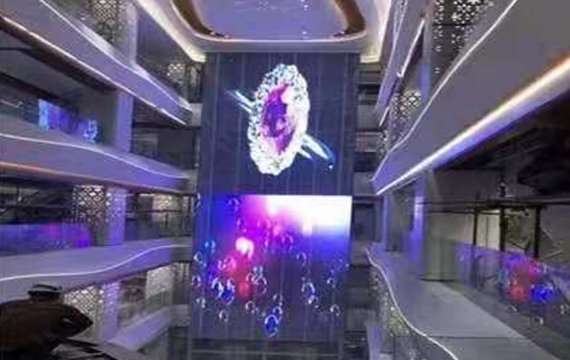

High definition

This LED screen installed in the mall, as you can see, the video and pictures are clear, can create a good atmosphere if you send an attractive video to the displays, it also can take more and more business opportunities.

High definition

Parameter

Model LTI2.6-5.2 LTI3.9-7.8 LTI5.2-10.4 LTI 10.4 LTI 15.6
Pixel Pitch(mm) H:2.6 V:5.2 H:3.9 V:7.8 H:5.2 V:10.4 H:10.4 V:10.4 H:15.6 V:15.6
Transparency Rate 55% 75% 65% 65% 80%
Resolution(dot/ m²) 73728 32768 18432 9216 4096
Cabinet Resolution 384×95 256×64 192×48 96×48 64×32
Weight(Kg/ m²) 9 11 11 11 11
Refresh(Hz) 5120 5120 3840 3840 3840
Driving IC ICN2153 ICN2153 MY9866 MY9866 ICN2038S
Scan Mode 1/12 1/8 1/4 1/4 1/2
LED Type SMD1415 SMD1921 SMD1921 SMD2727 SMD2727
Brightness(cd/ m²) ≥ 4500
Lamp Life Span ≥ 100 000 hours
Pixel Compose RGB all in one
Grey Scale 14bit
Max Power Consumption(W/ m²) 800
Ave. Power Consumption(W/ m²) 260
LED Control System Mooncell T120/NOVA
Connection & Control WiFi / DVI / HDMI / DP / USB/RJ45 / Remote Internet control
IP Level IP30
Clean Ghosting Yes
Input Power AC100~240V 50/60Hz
Module Input Power DC4.7~5V ±0.2V
Cabinet Size(mm) 1000x500x80
Cabinet Material Aluminum Profile
Maintenance Front Maintenance
Working Tempareture and humidity Temperature : -10~40℃ ; Humidity: 10%-90%, non-condensing
Installation Hanging (vertical 20pcs cabinet) 10 )/ Stacking / Fixed installation )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
