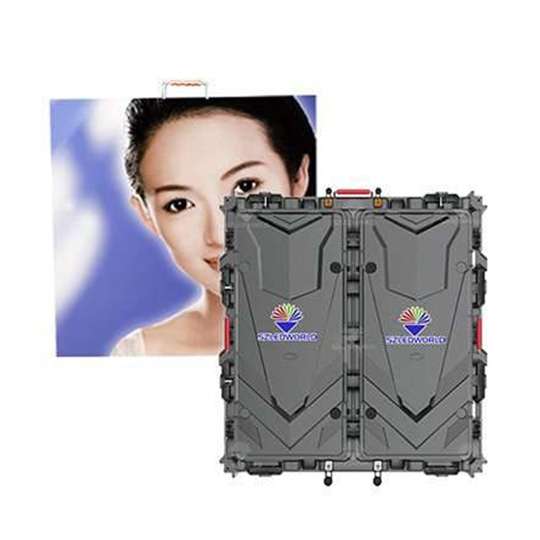

• LFEN outdoor fixed led display front and back

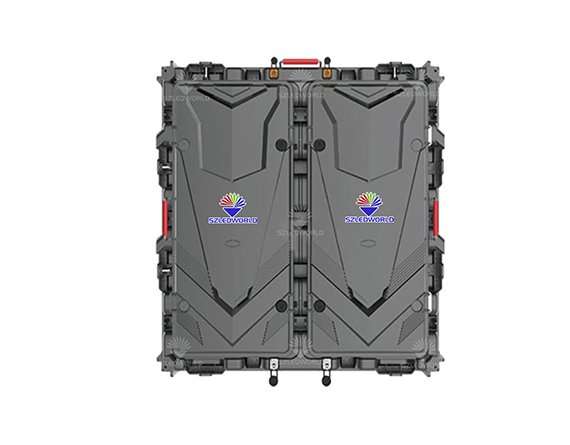

  • LFEN outdoor fixed led display back

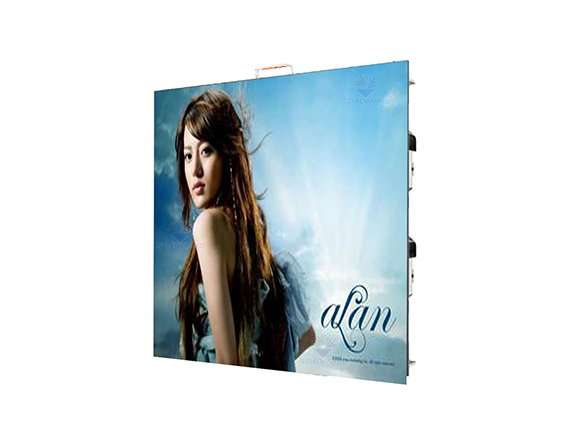

  • LFEN outdoor fixed led display front

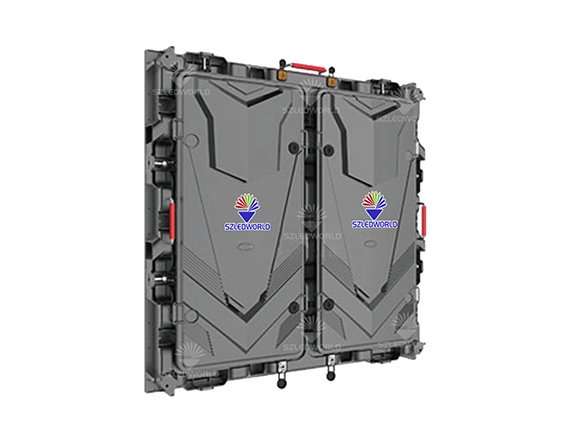

  • LFEN outdoor fixed led display side
  • LFEN outdoor fixed led display front and back
  • LFEN outdoor fixed led display back
  • LFEN outdoor fixed led display front
  • LFEN outdoor fixed led display side

LFEN series energy saving outdoor fixed led display

LFEN series is an energy-saving LED display that uses separate power supply methods, that is, the red lamp beads +2.8v, and the green and blue lamps use +3.8v, saving about 40% of power consumption. If your local power supply is tight or the cost is high, this model is undoubtedly your first choice.

  • LED module: 320x160mm or 320x320mm;
  • Pixel pitch: P3.3, P4, p5, P5.9, P6.67, P8, and P10;
  • Power consumption: 40% lower
  • Good heat dissipation
  • Low calorie
  • High brightness

Feature

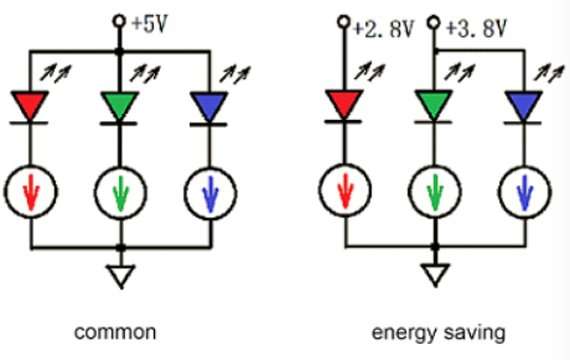

energy saving power

Low power consumption

DC +2.8V is used to power the red lamps, and DC +3.8V is used to power the green and blue lamps. This separate power supply mode greatly reduces the power consumption of the module by about 40% and saves your costs.

Front service

It has an energy-saving model of 320x320mm, with main pixel pitches of P6.67, P8, and P10. It also has an energy-saving model of 320x160mm, with main pixel pitches of P3.3, P4, P5, P5.95, P8, and P10.

Flexible repair method
Energy saving

Low temperature energy-saving IC

It uses energy-saving low-temperature IC, which can reduce the damage rate of LED display IC and extend the service life of LED display.

Seamless

The cabinet is combined with no lines, it will have a good appearance, and offer clearer pictures and videos.

Seamless

Parameter

Pixel Pitch P6.67 P8 P10
LED type SMD 2727 SMD 3535 SMD 3535
Pixel configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel density 22,500 pixels/m2 15,625 pixels/m2 10,000 pixels/m2
Module dimension(W*H) 320*320mm 320*320mm 320*320mm
Module resolution 48*48dots 40*40dots 32*32dots
LED module weight(g) 1220g 1200g 1195g
Drive Method 1/6 scan 1/5 scan 1/2 scan
Cabinet size (W*H) 960/1280*960mm 960/1280*960mm 960/1280*960mm
Cabinet depth 102mm 102mm 102mm
Cabinet material magnesium or aluminum alloy magnesium or aluminum alloy magnesium or aluminum alloy
Cabinet weight 25kg/pcs 25kg/pcs 25kg/pcs
Brightness ≥5500 cd/m2 ≥5500 cd/m2 ≥5800 cd/m2
Best Viewing Distance 6m to 60m 8m to 80m 10m to 100m
Viewing Angle 140 * 140 140 * 140 140 * 140
Grey Level 14 Bit 14 Bit 14 Bit
Refresh Rate ≥1920HZ ≥1920HZ ≥3840HZ
Drive IC ICND2046AP ICND2046AP ICND2046AP
Input voltage R::2.8V+GB:3.8V R::2.8V+GB:3.8V R::2.8V+GB:3.8V
Module maximum current (R+GB) 5.5A+8.8A 5.5A+8.8A 5.5A+8.8A
Power consumption(Avg.) 148w/cabinet 148w/cabinet 148w/cabinet
Power consumption(Max.) 445w/cabinet 445w/cabinet 445w/cabinet
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95%
Operating Temperature -20° – 50° C -20° – 50° C -20° – 50° C
Screen life ≥100000 hours ≥100000 hours ≥100000 hours
Controlling System Sync or Async Sync or Async Sync or Async
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Ingress Protection (IP) IP65 IP65 IP65
Warranty 2 Years 2 Years 2 Years
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to SZLEDWORLD.
